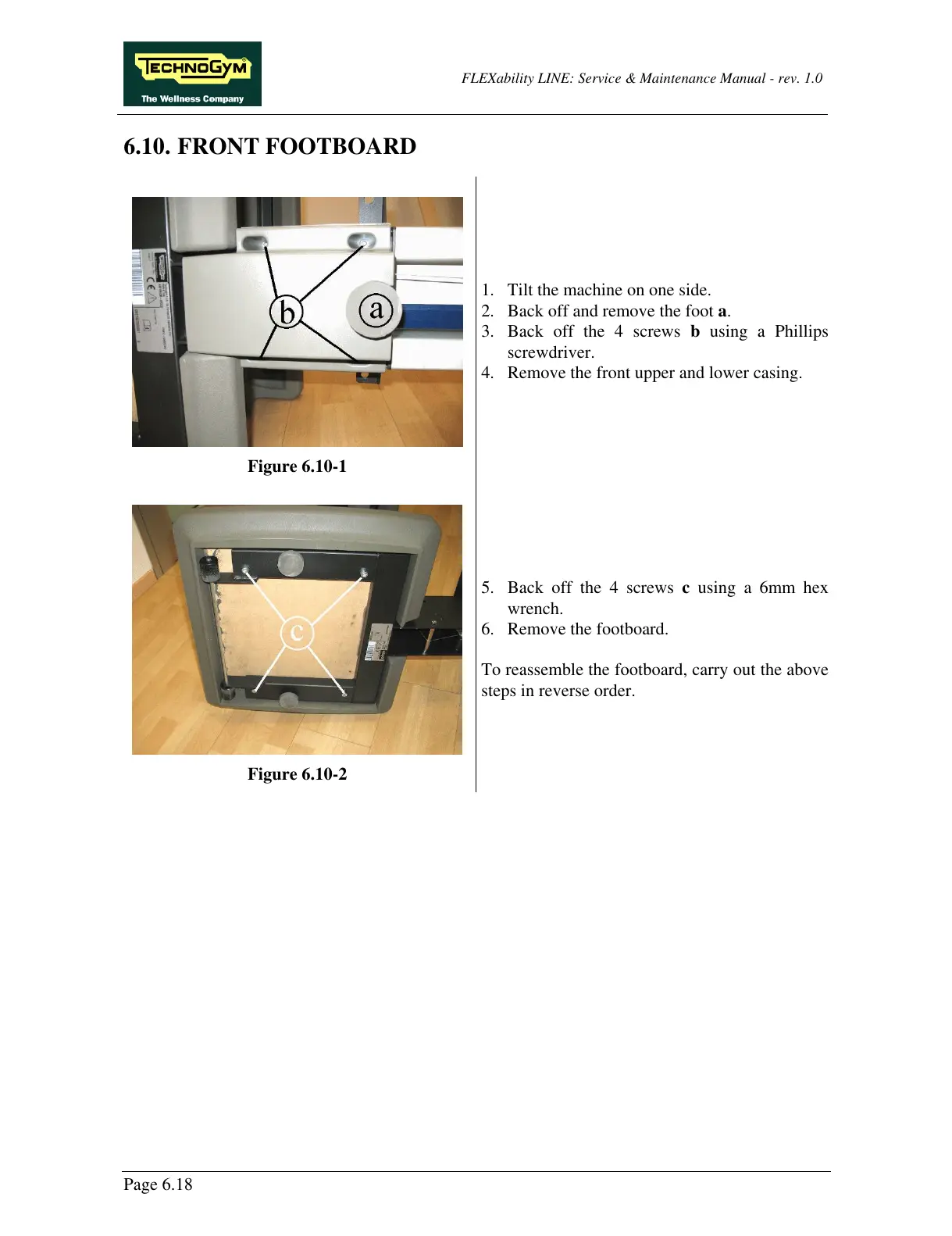

6.10. FRONT FOOTBOARD
Figure 6.10-1
1. Tilt the machine on one side.
2. Back off and remove the foot a.
3. Back off the 4 screws b using a Phillips
screwdriver.
4. Remove the front upper and lower casing.
Figure 6.10-2
5. Back off the 4 screws c using a 6mm hex
wrench.
6. Remove the footboard.
To reassemble the footboard, carry out the above
steps in reverse order.
