FLEXability LINE: Service & Maintenance Manual - rev. 1.0
Page 8.2

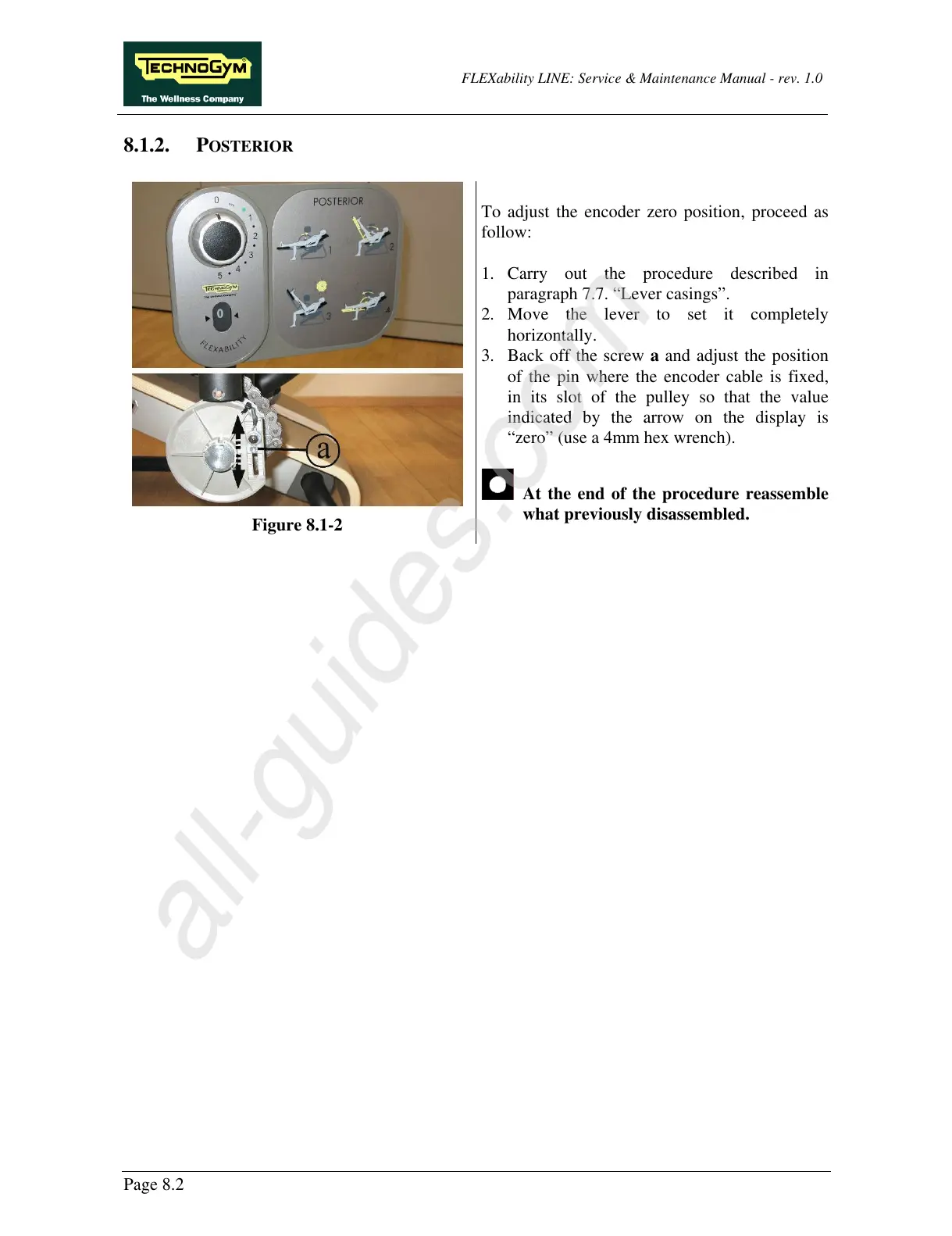

8.1.2. POSTERIOR
Figure 8.1-2
To adjust the encoder zero position, proceed as
follow:
1. Carry out the procedure described in
paragraph 7.7. “Lever casings”.
2. Move the lever to set it completely
horizontally.
3. Back off the screw a and adjust the position
of the pin where the encoder cable is fixed,
in its slot of the pulley so that the value
indicated by the arrow on the display is
“zero” (use a 4mm hex wrench).
At the end of the procedure reassemble
what previously disassembled.
