Technogym FLEXability ME05 - Disassembling Back-Rest Upholstery (Posterior)

FLEXability LINE: Service & Maintenance Manual - rev. 1.0
7.3. BACK-REST UPHOLSTERY

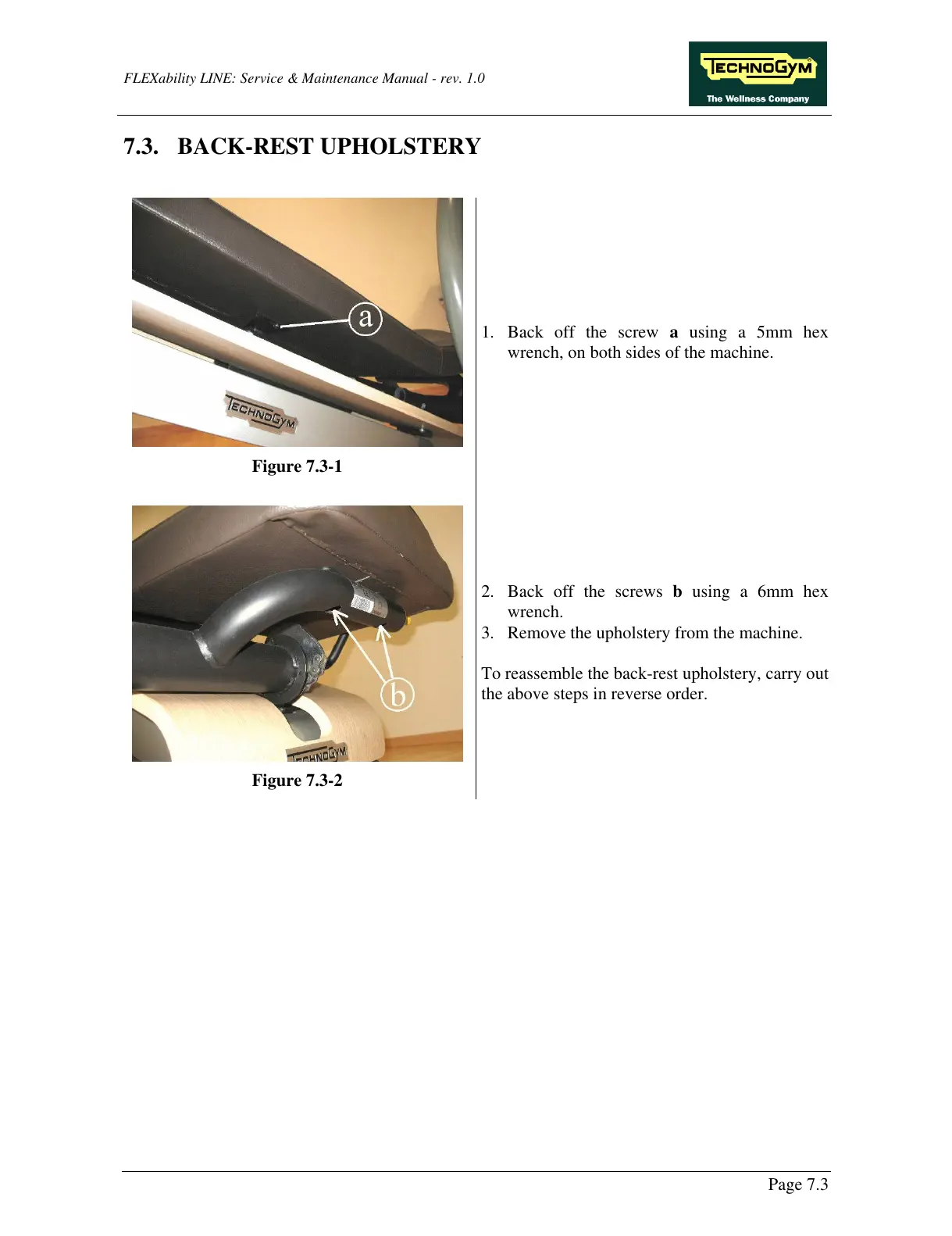

Figure 7.3-1
1. Back off the screw a using a 5mm hex
wrench, on both sides of the machine.
Figure 7.3-2
2. Back off the screws b using a 6mm hex
wrench.
3. Remove the upholstery from the machine.
To reassemble the back-rest upholstery, carry out
the above steps in reverse order.
Page 7.3
