Technogym FLEXability ME05 - Disassembling Feet-Rest Upholstery (Posterior)

FLEXability LINE: Service & Maintenance Manual - rev. 1.0
Page 7.4

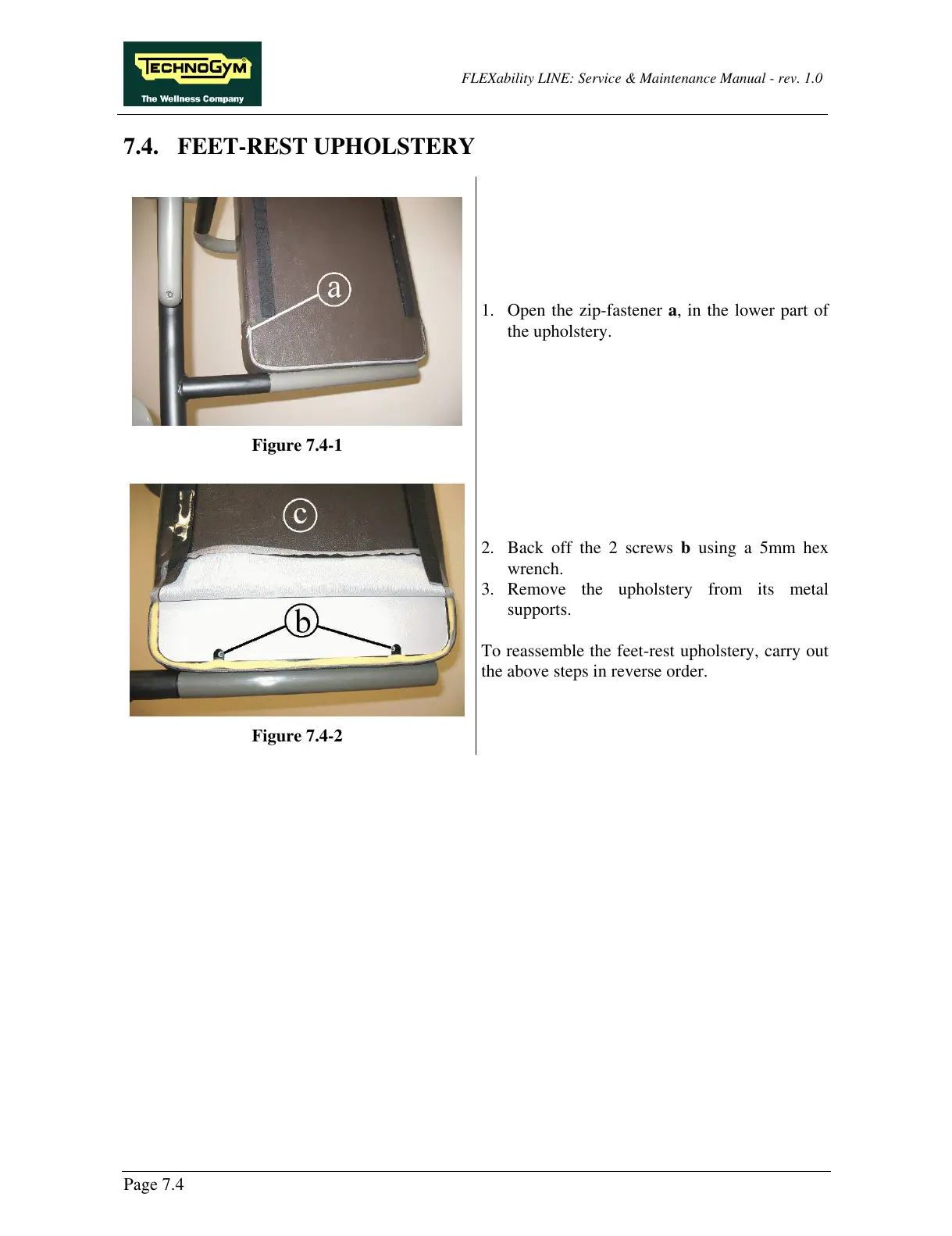

7.4. FEET-REST UPHOLSTERY
Figure 7.4-1
1. Open the zip-fastener a, in the lower part of
the upholstery.
Figure 7.4-2
2. Back off the 2 screws b using a 5mm hex
wrench.
3. Remove the upholstery from its metal
supports.
To reassemble the feet-rest upholstery, carry out
the above steps in reverse order.
