FLEXability LINE: Service & Maintenance Manual - rev. 1.0

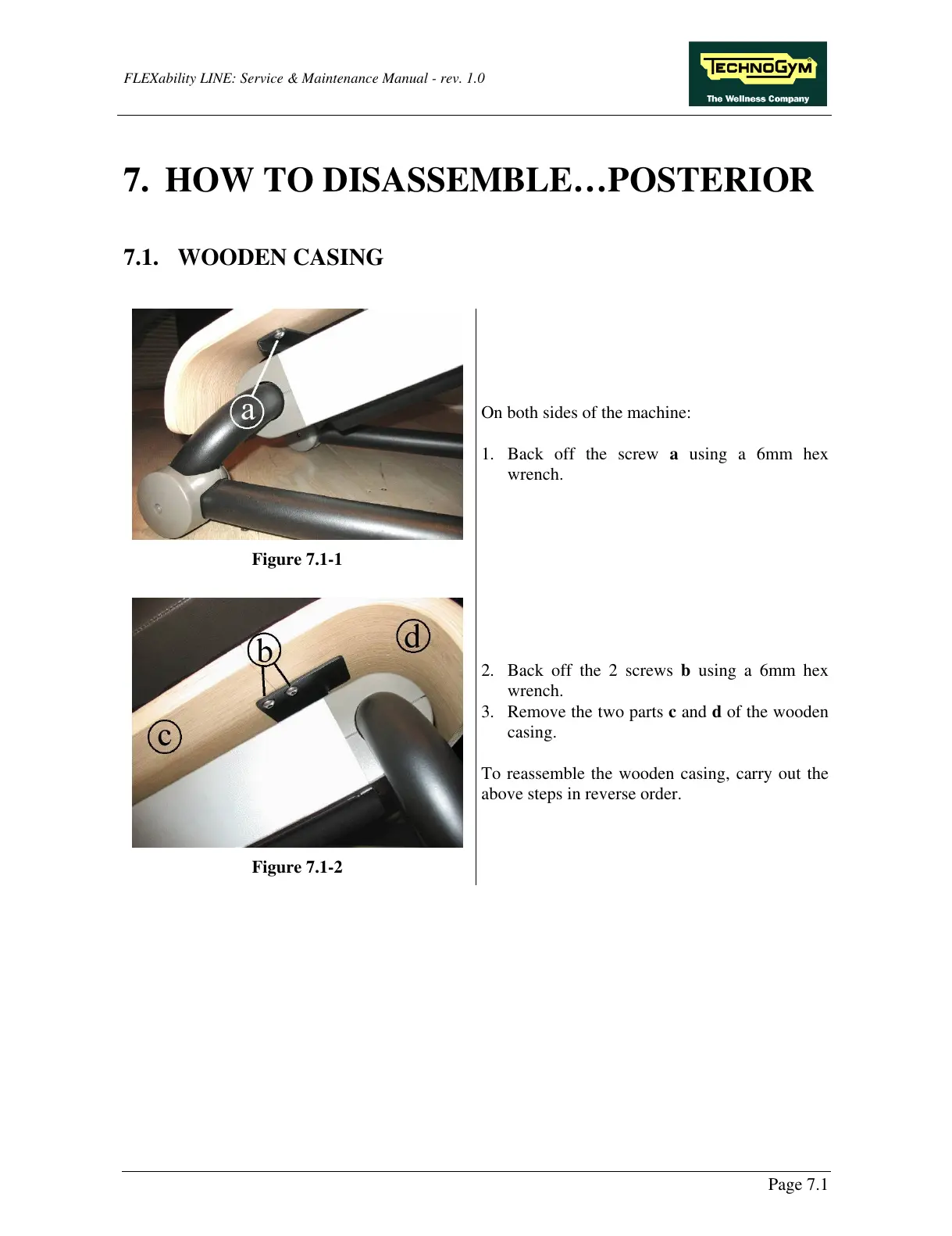

7. HOW TO DISASSEMBLE…POSTERIOR
7.1. WOODEN CASING
Figure 7.1-1
On both sides of the machine:
1. Back off the screw a using a 6mm hex
wrench.
Figure 7.1-2
2. Back off the 2 screws b using a 6mm hex
wrench.
3. Remove the two parts c and d of the wooden
casing.
To reassemble the wooden casing, carry out the
above steps in reverse order.
Page 7.1
