FLEXability LINE: Service & Maintenance Manual - rev. 1.0
Page 7.10
7.8. CATENA LEVA

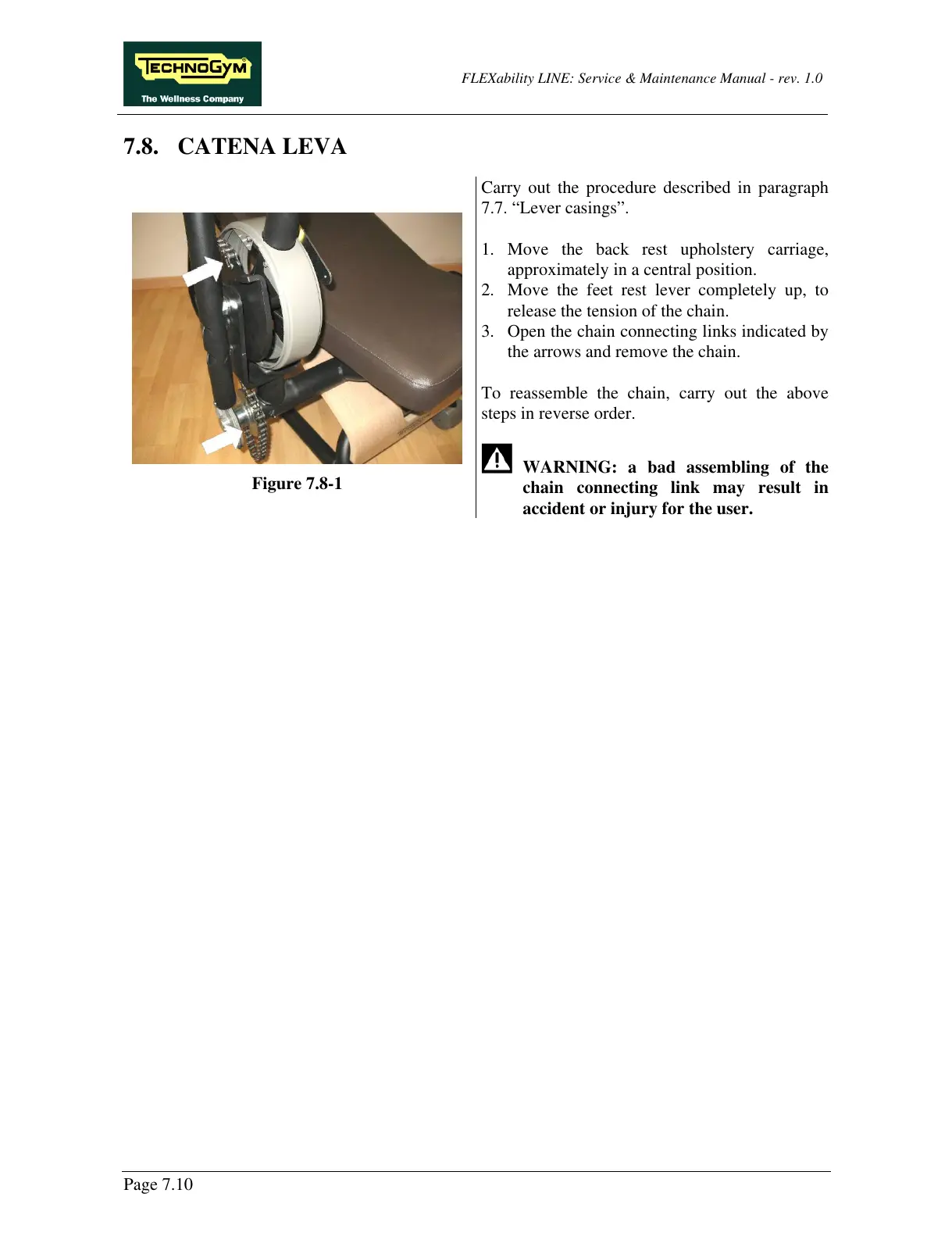

Figure 7.8-1
Carry out the procedure described in paragraph
7.7. “Lever casings”.
1. Move the back rest upholstery carriage,
approximately in a central position.
2. Move the feet rest lever completely up, to
release the tension of the chain.
3. Open the chain connecting links indicated by
the arrows and remove the chain.
To reassemble the chain, carry out the above
steps in reverse order.
WARNING: a bad assembling of the
chain connecting link may result in
accident or injury for the user.
