FLEXability LINE: Service & Maintenance Manual - rev. 1.0
8.2. ANTERIOR: ADJUSTING THE CARRIAGE BELT TENSION

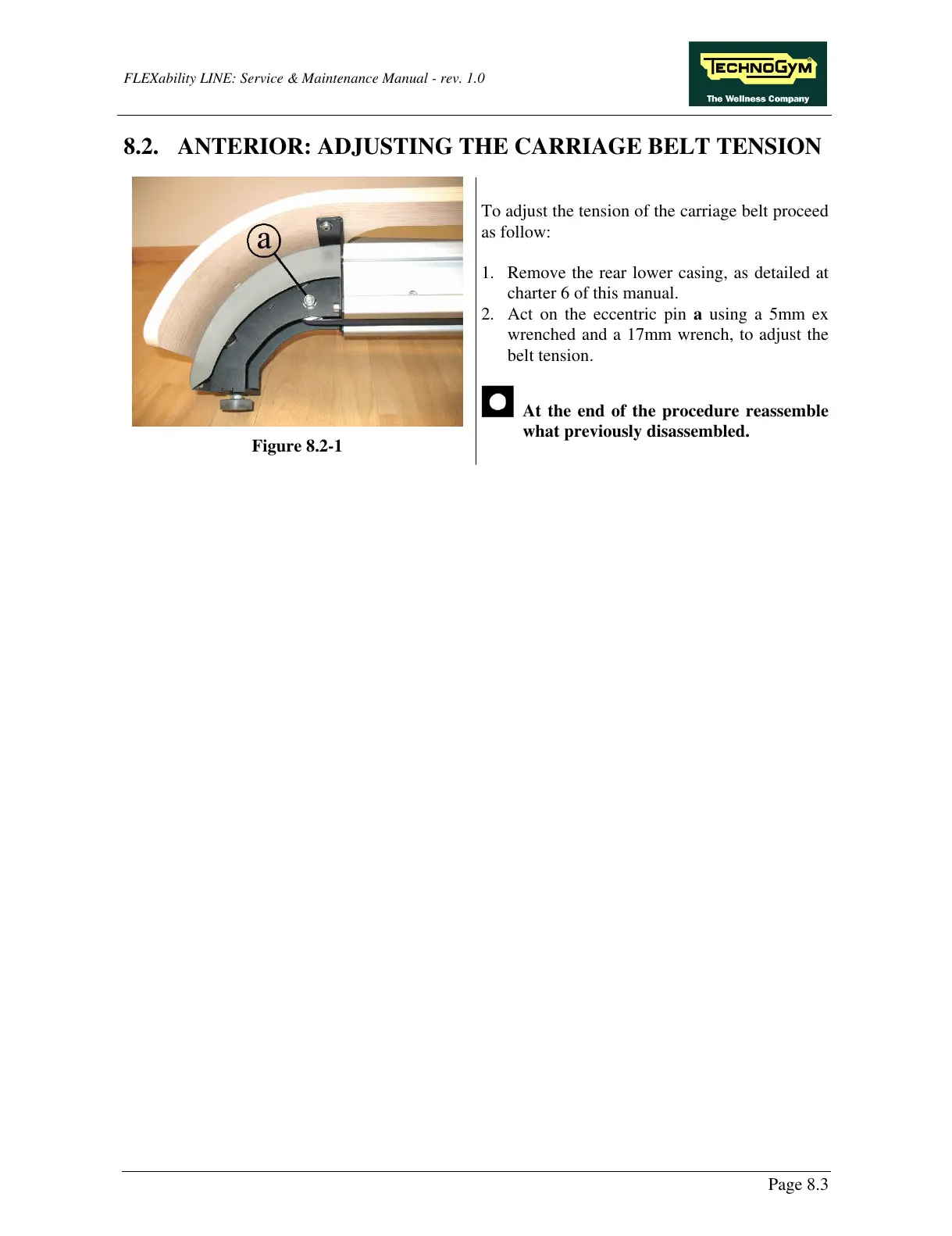

Figure 8.2-1
To adjust the tension of the carriage belt proceed
as follow:
1. Remove the rear lower casing, as detailed at
charter 6 of this manual.
2. Act on the eccentric pin a using a 5mm ex
wrenched and a 17mm wrench, to adjust the
belt tension.
At the end of the procedure reassemble
what previously disassembled.
