FLEXability LINE: Service & Maintenance Manual - rev. 1.0
Page 7.6

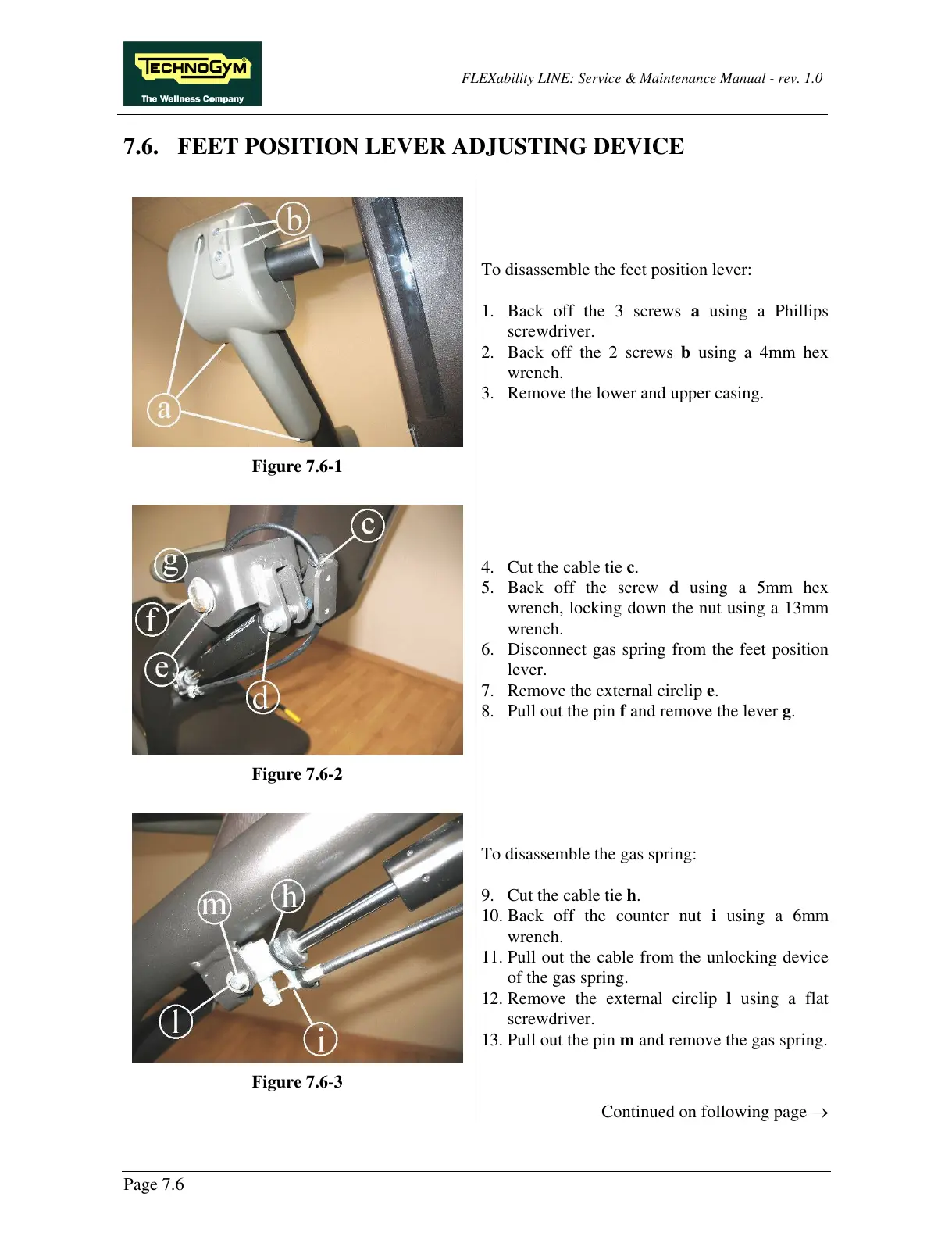

7.6. FEET POSITION LEVER ADJUSTING DEVICE
Figure 7.6-1
To disassemble the feet position lever:
1. Back off the 3 screws a using a Phillips
screwdriver.
2. Back off the 2 screws b using a 4mm hex
wrench.
3. Remove the lower and upper casing.
Figure 7.6-2
4. Cut the cable tie c.
5. Back off the screw d using a 5mm hex
wrench, locking down the nut using a 13mm
wrench.
6. Disconnect gas spring from the feet position
lever.
7. Remove the external circlip e.
8. Pull out the pin f and remove the lever g.
Figure 7.6-3
To disassemble the gas spring:
9. Cut the cable tie h.
10. Back off the counter nut i using a 6mm
wrench.
11. Pull out the cable from the unlocking device
of the gas spring.
12. Remove the external circlip l using a flat
screwdriver.
13. Pull out the pin m and remove the gas spring.
Continued on following page →
