6. HOW TO DISASSEMBLE…ANTERIOR
6.1. WOODEN CASING

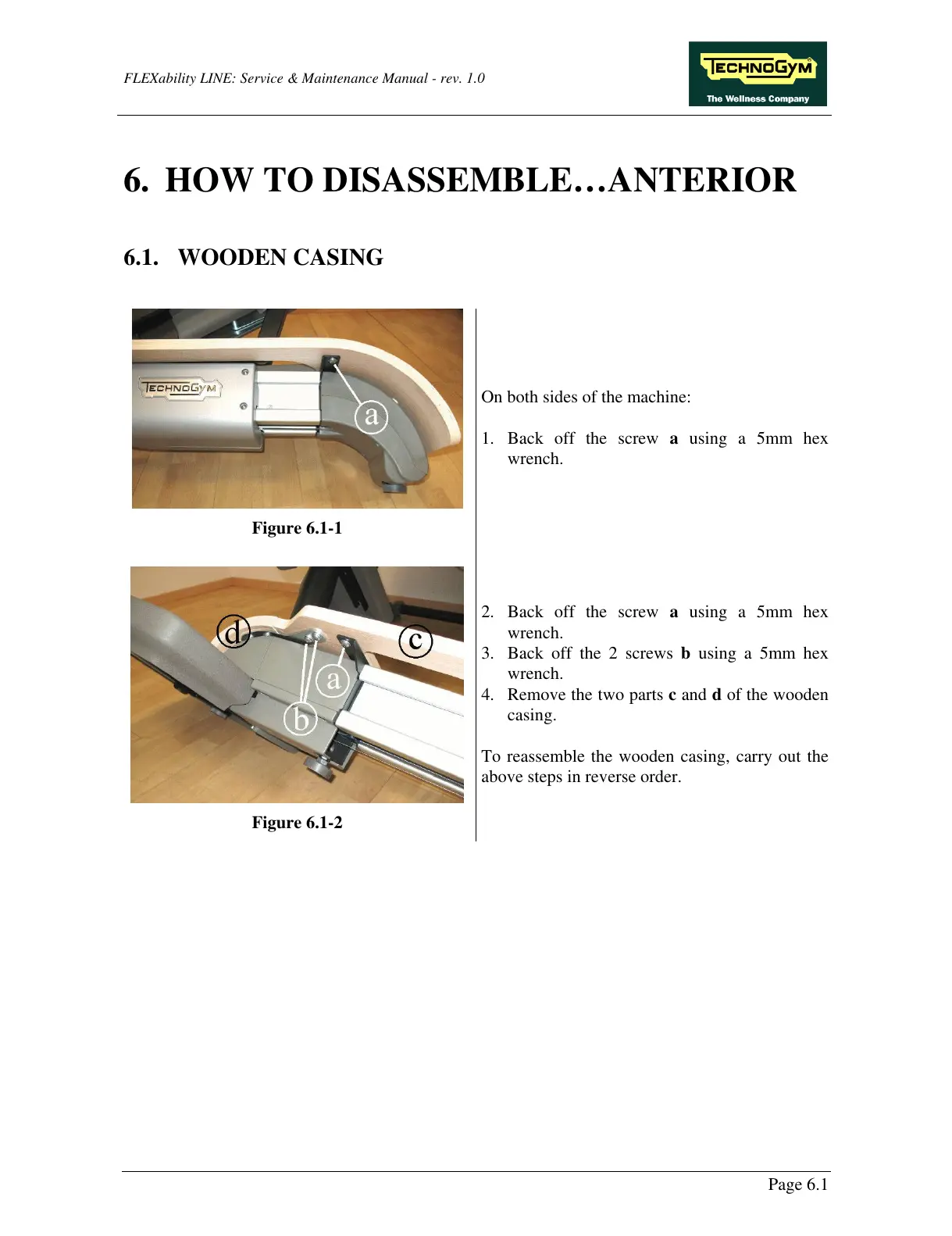

Figure 6.1-1
On both sides of the machine:
1. Back off the screw a using a 5mm hex
wrench.
Figure 6.1-2
2. Back off the screw a using a 5mm hex
wrench.
3. Back off the 2 screws b using a 5mm hex
wrench.
4. Remove the two parts c and d of the wooden
casing.
To reassemble the wooden casing, carry out the
above steps in reverse order.
