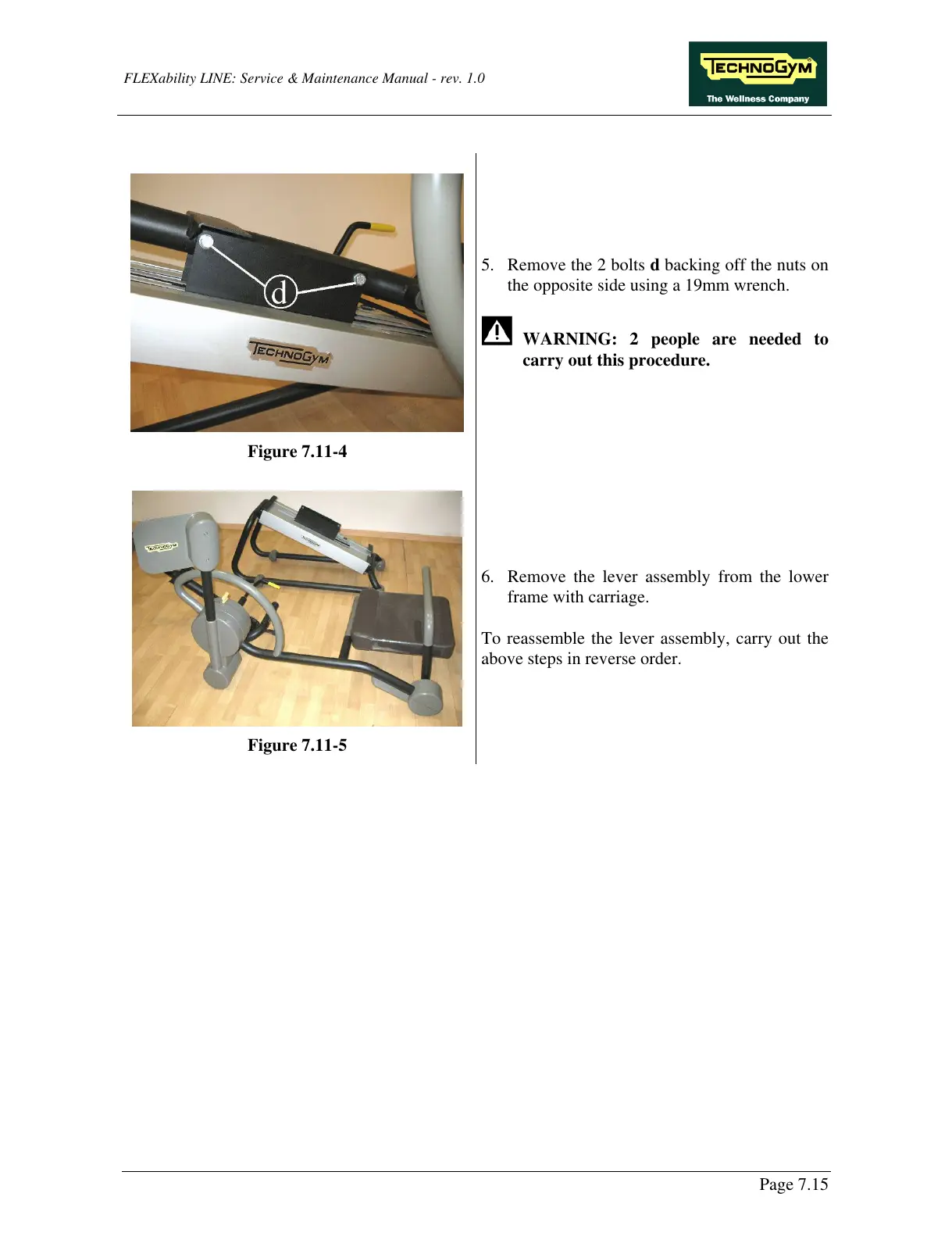

FLEXability LINE: Service & Maintenance Manual - rev. 1.0
Figure 7.11-4
5. Remove the 2 bolts d backing off the nuts on
the opposite side using a 19mm wrench.
WARNING: 2 people are needed to
carry out this procedure.
Figure 7.11-5
6. Remove the lever assembly from the lower
frame with carriage.
To reassemble the lever assembly, carry out the
above steps in reverse order.
Page 7.15
