FORMA: Service & Maintenance manual - rev. 3.0
Page 7.20

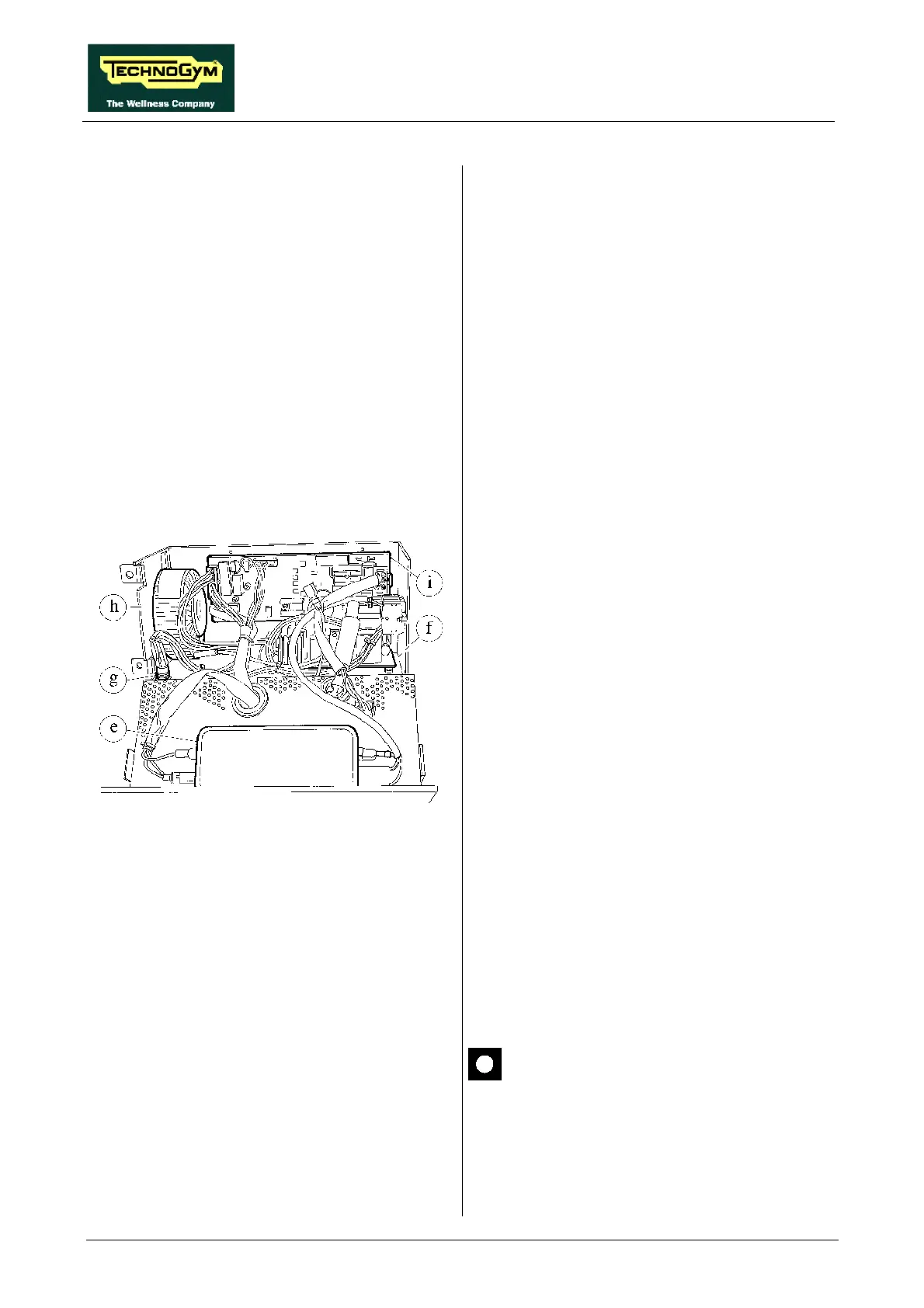

Figure 7.16-3
1. Back off the 4 cover fixing screws using a
medium phillips screwdriver.
2. Remove the cover, taking care not to damage
the connected wires.
To disassemble the FILTER e:
1. Unplug the connected cables.
2. Back off the 2 fixing screws using a medium
phillips screwdriver.
3. Remove the FILTER.
To disassemble the POWER SUPPLY f:
1. Unplug the connected cables.
2. Release the 4 clip fasteners.
3. Remove the POWER SUPPLY.
To disassemble the 110/220 SELECTOR g:
1. Back off the locking ring.
2. Unsolder the cables;
3. Remove the SELECTOR.
To disassemble the TRANSFORMER h:
1. Disconnect the secondary cables from the
driver board.
2. Unsolder the primary cables from the
selector.
3. Back off the fixing screw using a 10-mm
wrench.
4. Remove the TRANSFORMER.
To disassemble the DRIVER BOARD i:
1. Unplug the connected cables.
2. Release the 6 clip fasteners.
3. Remove the DRIVER BOARD.
After replacing the DRIVER BOARD,
calibrate the speed as described in
paragraph 8.6. .
To reassemble the ELECTRONIC CIRCUIT
BOARDS, carry out the above steps in reverse
order.
