FORMA: Service & Maintenance manual - rev. 3.0
Page 2.2
2.5. WIRING DIAGRAM
2.5.1. VERSION CURRENTLY IN PRODUCTION
This machine version, subsequently identified with the name Forma 3, has been in production
starting from SN 01000881. It differs from the preceding version as follows:
• Fan for improved cooling of the motor group;
• Electronic circuit board for starting the fan when the motor is running;
• New motor group equipped with scaled-up flywheel;
• New driving roller with larger diameter pulley;
• Hole in the guard for lubrication of the table;
• New inverter configuration parameters;
• New operating SW.

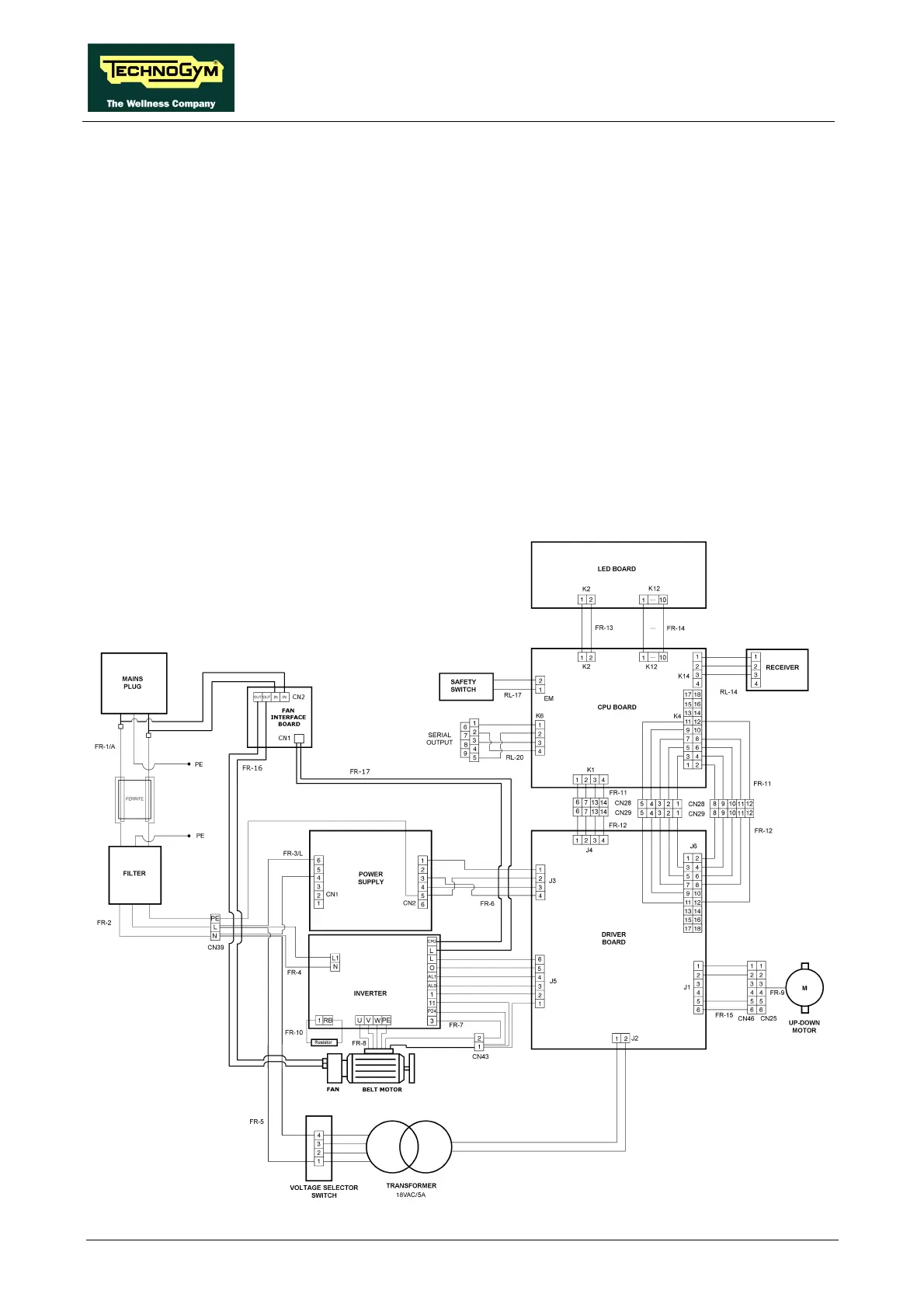

The wiring diagram is given below:
