Technogym Forma - Disassembling the Motor Guard

FORMA: Service & Maintenance manual - rev. 3.0
Page 7.7
7.7. DISASSEMBLING THE MOTOR GUARD

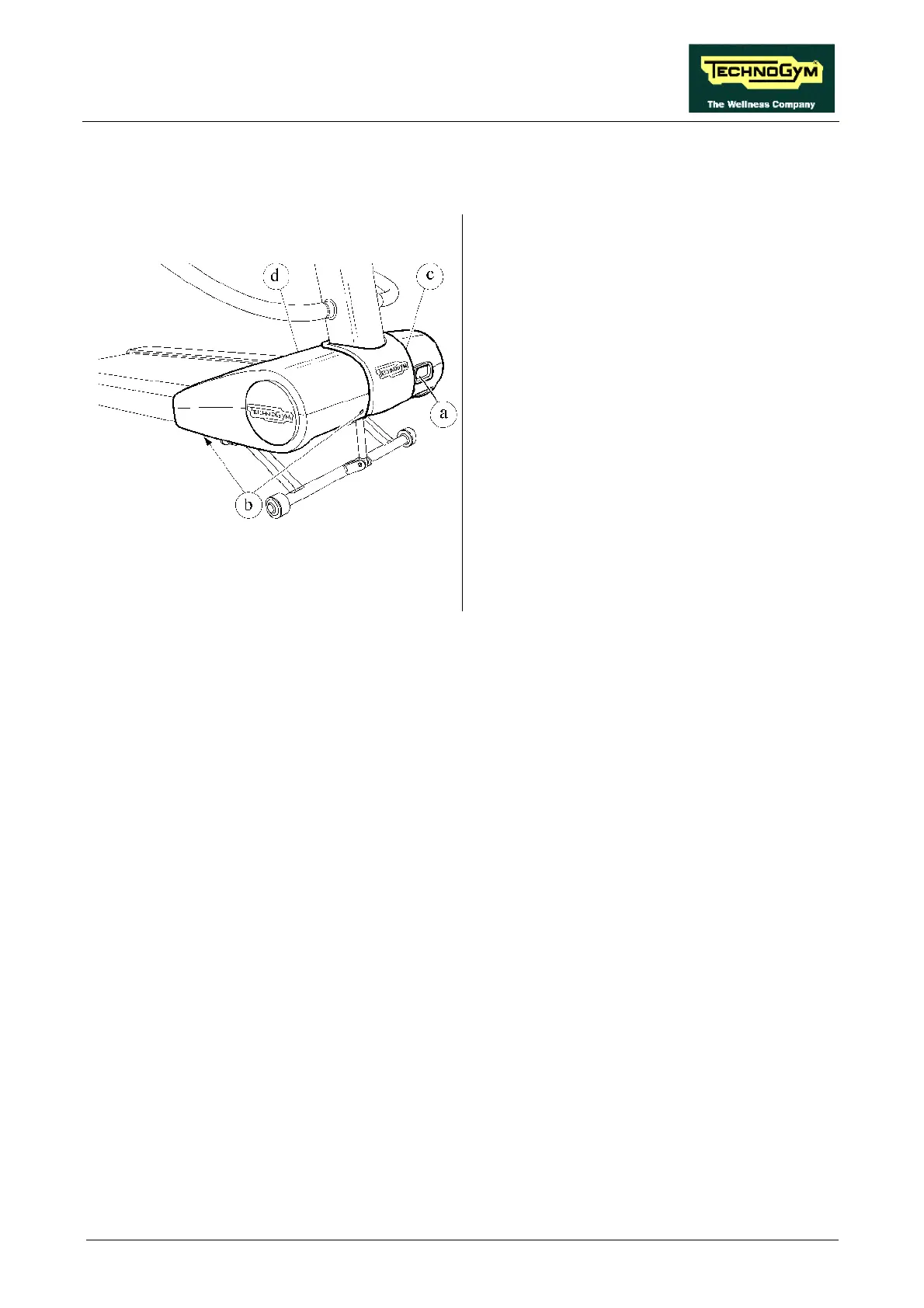

Figure 7.7-1
1. Raise the machine to its maximum incline
position.
2. Turn off the machine and unplug the mains
lead from the wall outlet.
3. Take off the fuse holder a.
4. On each side, back off the 2 screws b using a
4-mm hex T wrench.
5. Lift up the rubber guard c, detaching it from
the MOTOR GUARD.
6. Remove the MOTOR GUARD d by lifting it
and rotating it toward the right.
To reassemble the MOTOR GUARD, carry out
the above steps in reverse order.
