7.14. DISASSEMBLING THE MOTOR GUARD GRILLE

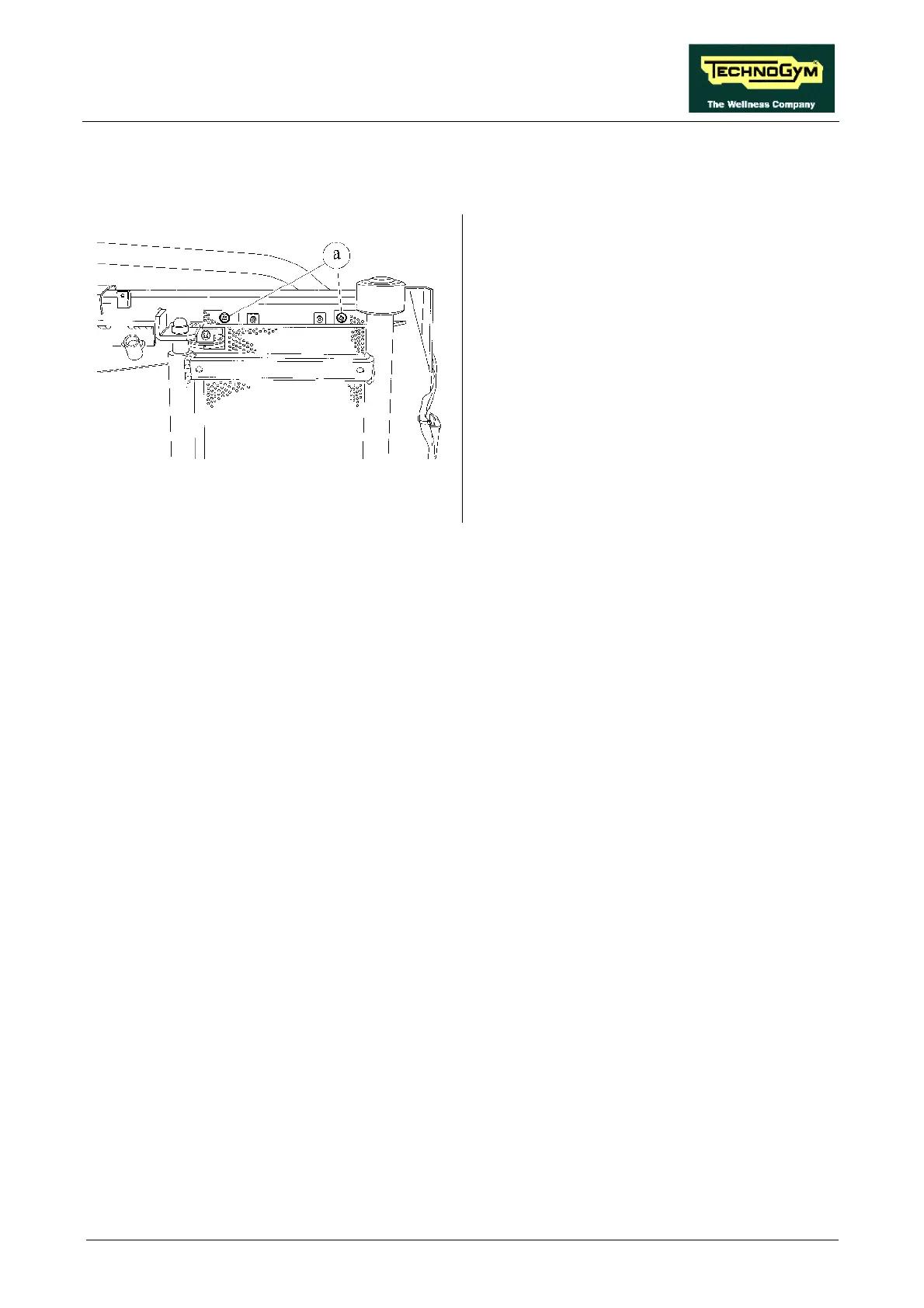

Figure 7.14-1
1. Raise the machine to an incline of
approximately 5%.
2. Turn off the machine and unplug the mains
lead from the wall outlet.
3. Overturn the machine on one side.
4. Back off the 2 screws a using a large phillips
screwdriver.
5. Repeat the procedure on the opposite side.
6. Remove the MOTOR GUARD GRILLE by
pulling it out from the side.
To reassemble the MOTOR GUARD GRILLE,
carry out the above steps in reverse order.
