8.6. CALIBRATING THE TREAD-BELT SPEED

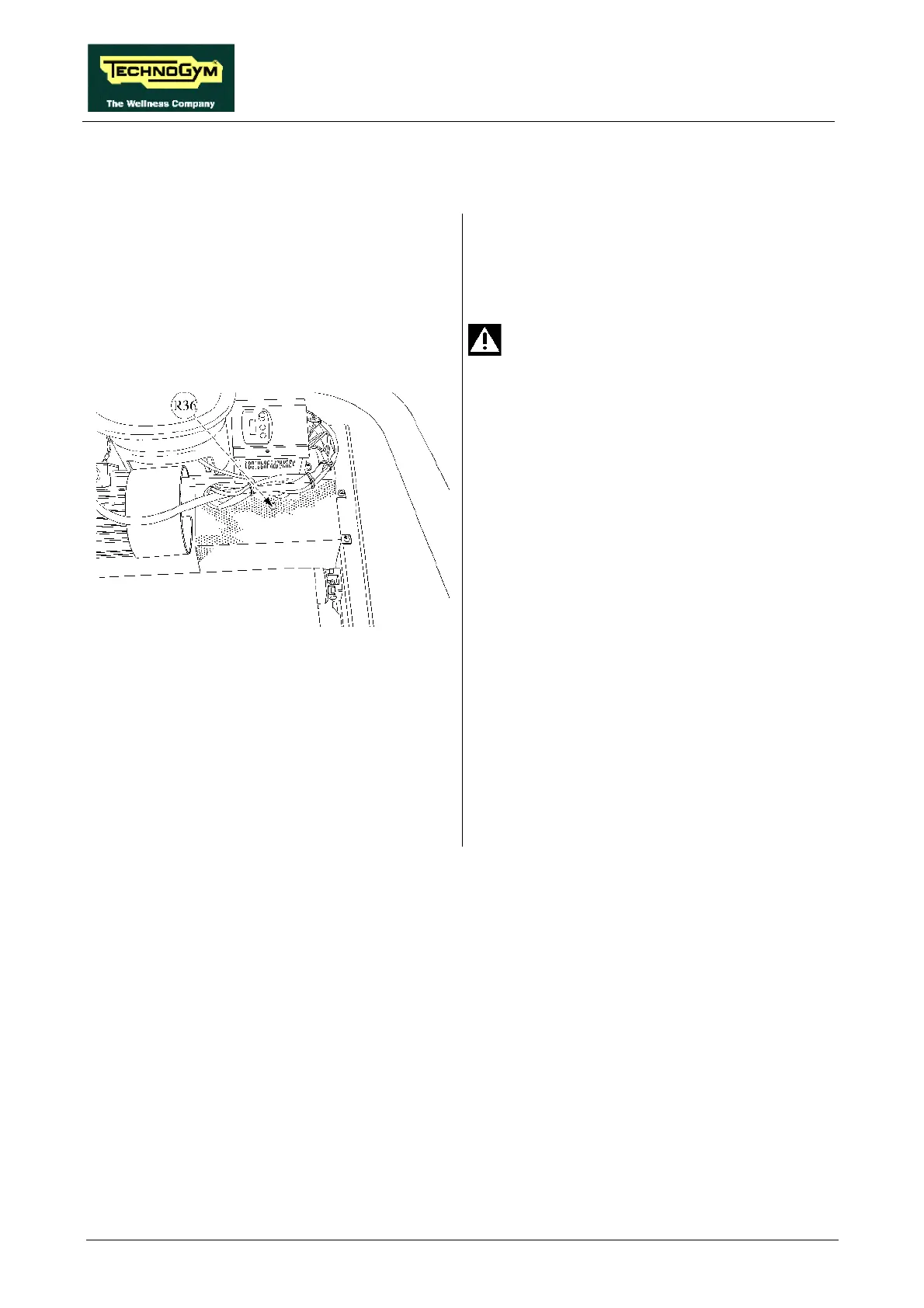

Figure 8.6-1
1. Carry out the procedure described in
paragraph 7.7. “Disassembling the motor
guard”.
The operations described below must be
carried out with the machine powered
up; they should be performed
exclusively by a QUALIFIED
TECHNICIAN who must ensure that
there are no unauthorized persons near
the machine.
2. Plug the mains lead into the wall outlet.
3. Turn on the machine.
4. Start the tread-belt and set the speed at 8.0
Km/h.
5. View the tread-belt motor control frequency
on the inverter display.
6. Adjust trimmer R36 on the driver board,
accessed through the hole on the electrical
box, using a small flat-blade screwdriver,
until the inverter displays a frequency of:
• 40 Hz if calibrating a Forma 3;
• 48 Hz if calibrating a Forma 2.
