FORMA: Service & Maintenance manual - rev. 3.0
Page 11.5
• the receiver must be directed in such a way that its axis of reception is parallel to that of the
transmitter, as shown in the figure below:

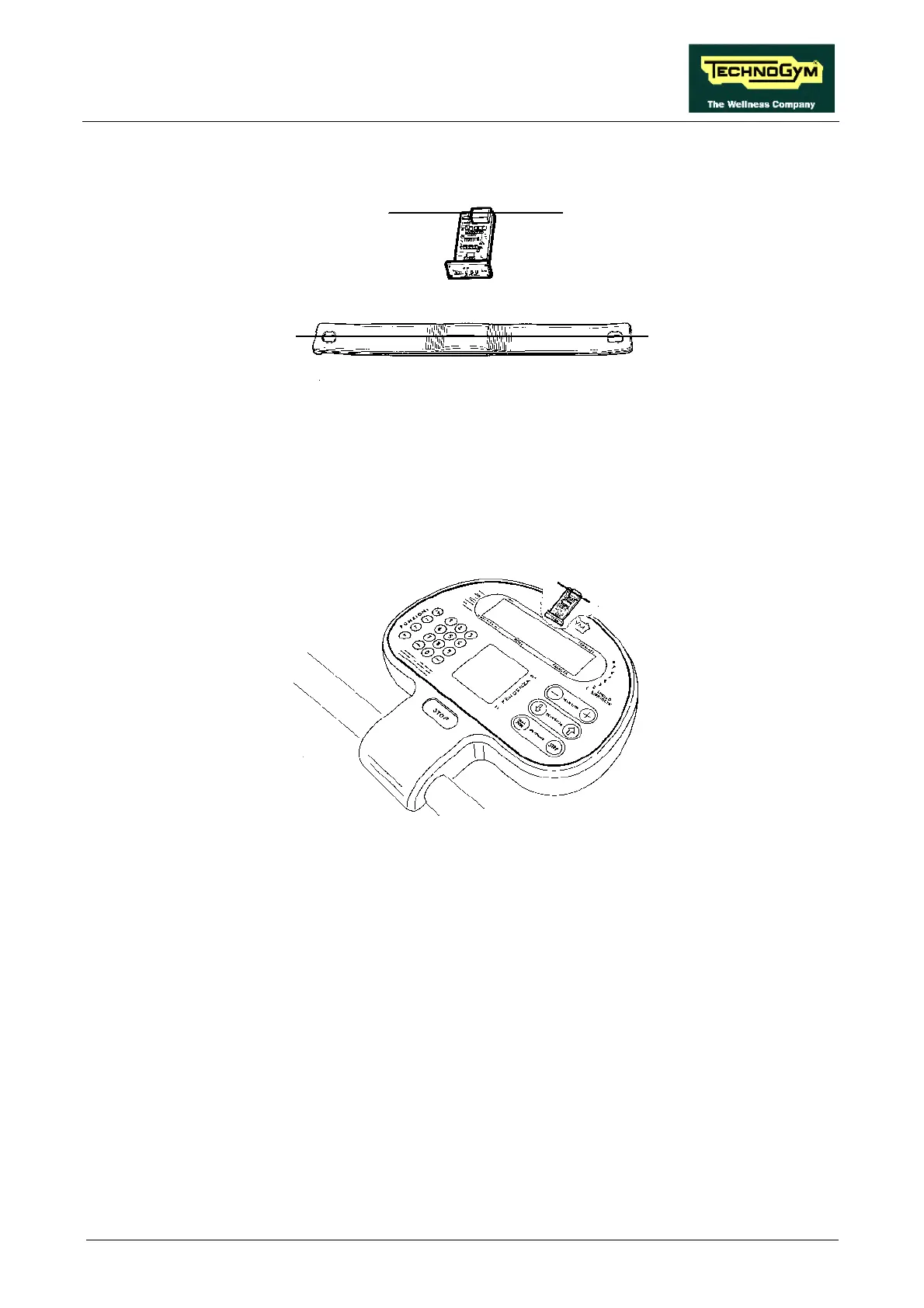

Figure 11.1-2
Please note that even small departures from the above specifications may considerably impair
the accuracy of reception.
The optimal configuration is therefore that shown in the figure below:
Figure 11.1-3
11.1.6. R
OUTING OF CABLES
Particular care must be taken in the routing of cables to prevent interference with the receiver coil.
