7.8. DISASSEMBLING THE REAR ROLLER

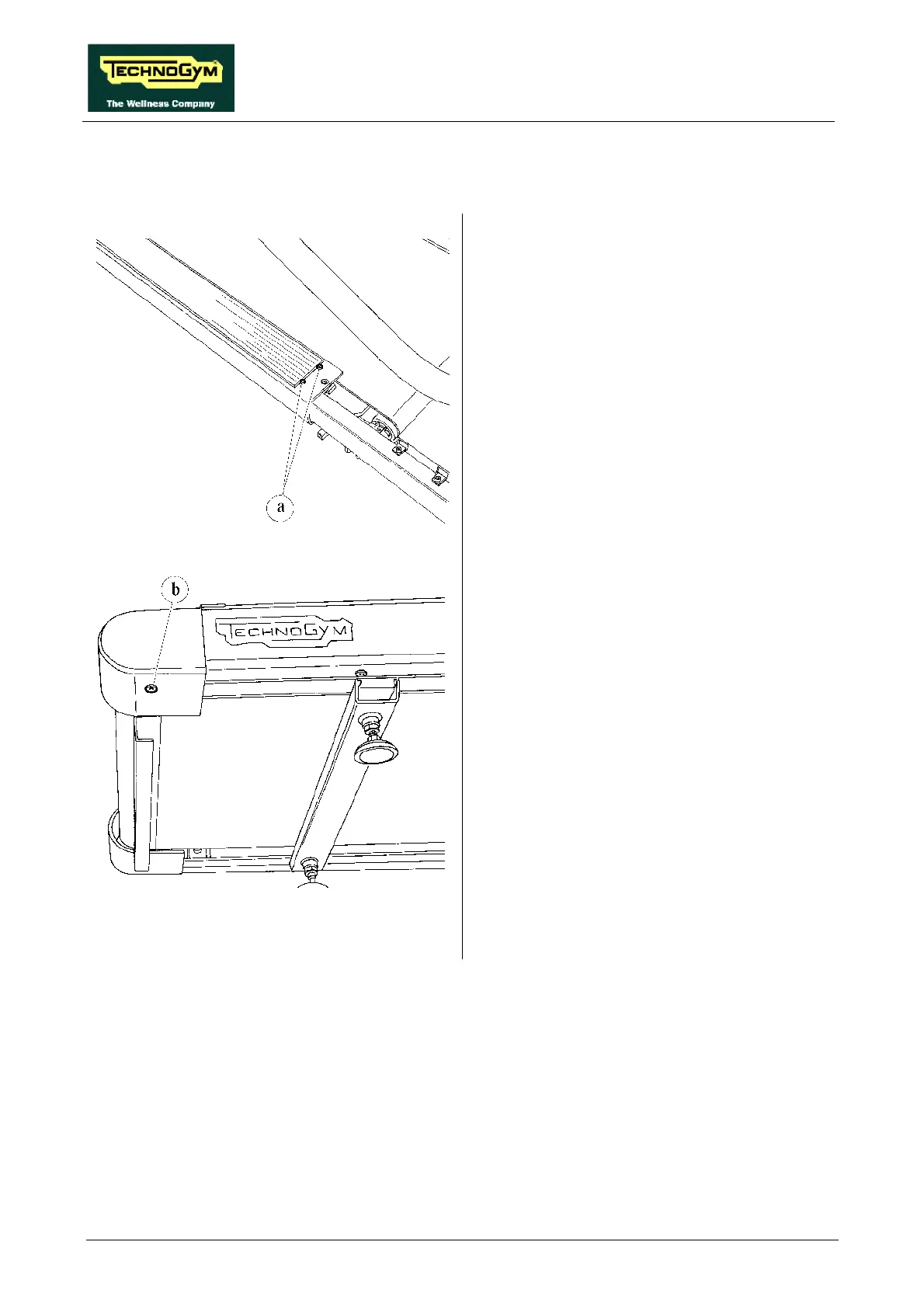

Figure 7.8-1
Carry out the procedure described in paragraph
7.7. “Disassembling the motor guard”.
On each side of the machine:
1. Back off the 2 screws a using a 2.5-mm hex
T wrench.
2. Slide the footrest guide forward.
Figure 7.8-2
3. Overturn the machine on one side.
4. Back off screw b using a medium phillips
screwdriver.
Continued on following page →
