7.21. DISASSEMBLING THE UP-DOWN FRAME

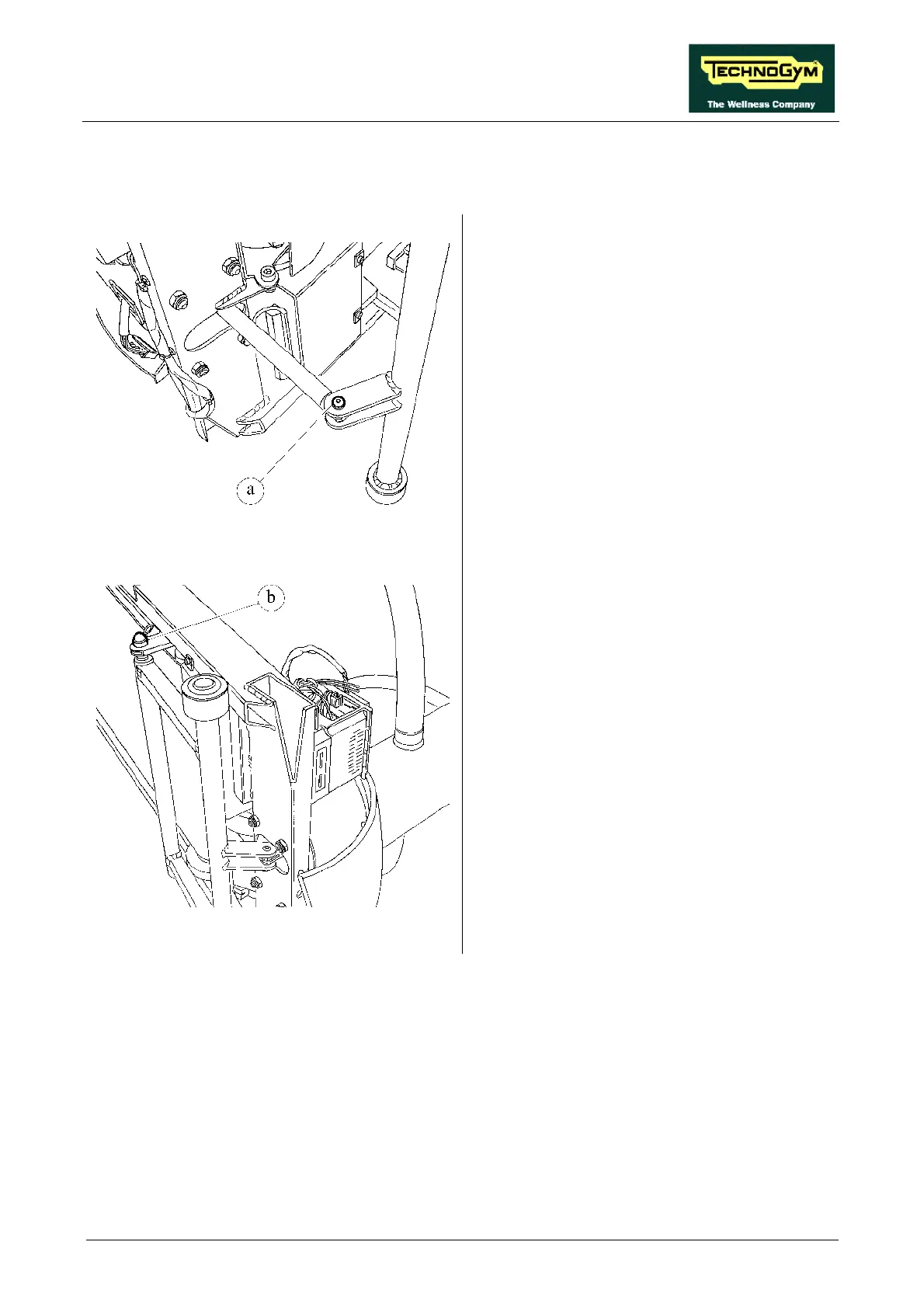

Figure 7.21-1
1. Raise the machine to its maximum incline
position.
2. Overturn the machine on its right side.
3. Back off the 2 screws a using two 4-mm hex
T wrenches.
4. Disconnect the up-down motor rod from the
UP-DOWN FRAME.
Figure 7.21-2
Working on both sides:
5. Remove the nut cap b.
6. Back off the nut underneath the cap, using a
17-mm wrench.
7. Remove the threaded dowel from the top.
8. Remove the UP-DOWN FRAME.
To reassemble the UP-DOWN FRAME, carry
out the above steps in reverse order.
