Technogym Forma - Disassembling the Footrest Guide

FORMA: Service & Maintenance manual - rev. 3.0
Page 7.15
7.12. DISASSEMBLING THE FOOTREST GUIDE

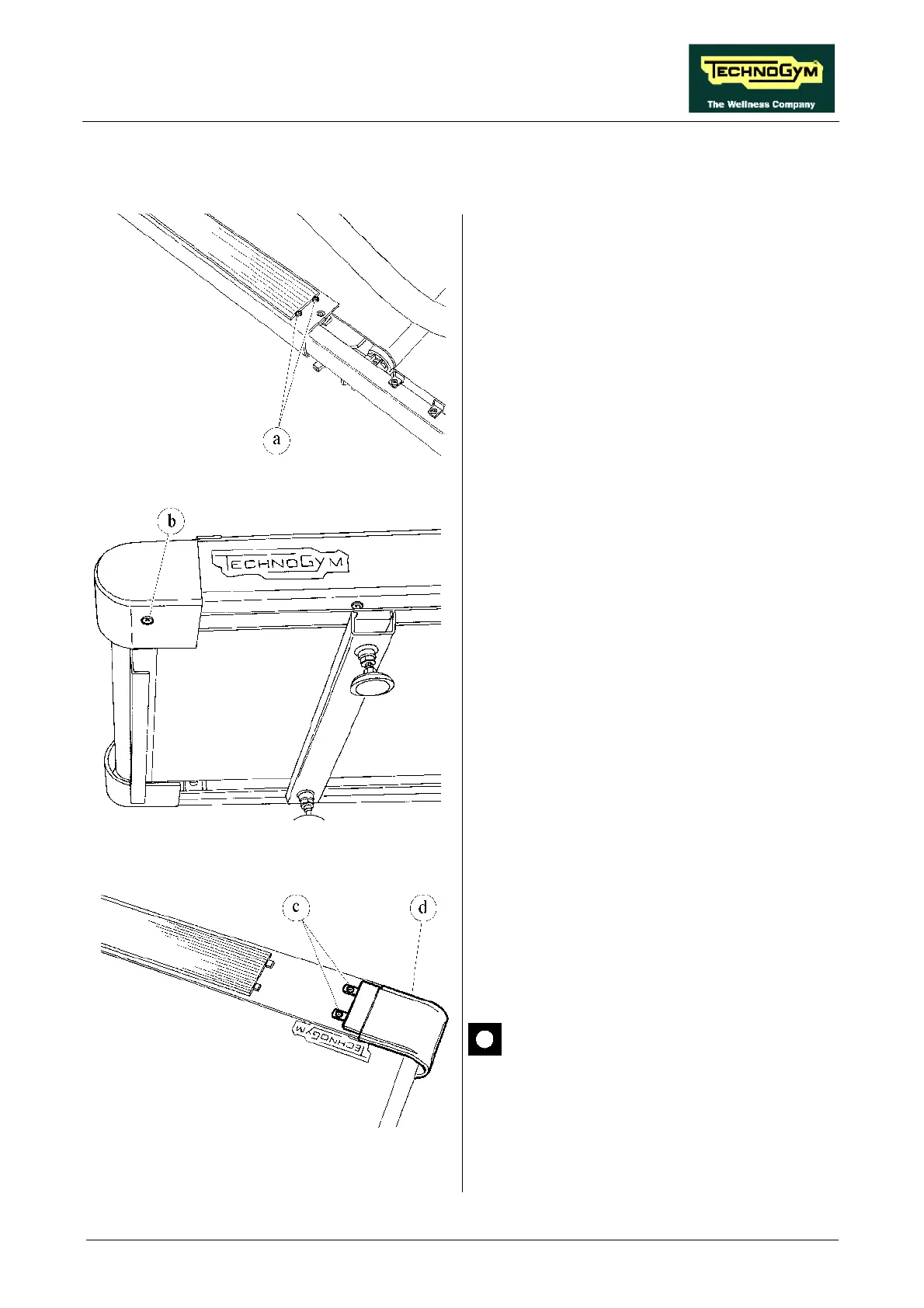

Figure 7.12-1
Carry out the procedure described in paragraph
7.7. “Disassembling the motor guard”.
On each side of the machine:
1. Back off the 2 screws a using a 2.5-mm hex
T wrench.
2. Slide the FOOTREST GUIDE forward.
Figure 7.12-2
3. Overturn the machine on one side.
4. Back off the screw b using a medium phillips
screwdriver.
Figure 7.12-3
5. Return the machine to the upright position.
6. Back off the 2 screws c using a 2.5-mm hex
T wrench.
7. Remove the rear plug d.
8. Remove the FOOTREST GUIDE from the
rear side.
If the FOOTRESTS are not securely
fixed, replace the brackets fixing them to
the side guard.
To reassemble the SHOCK ABSORBER, carry
out the above steps in reverse order.
