FORMA: Service & Maintenance manual - rev. 3.0
Page 7.10
7.9. DISASSEMBLING THE MOTOR ROLLER AND DRIVE-
BELT

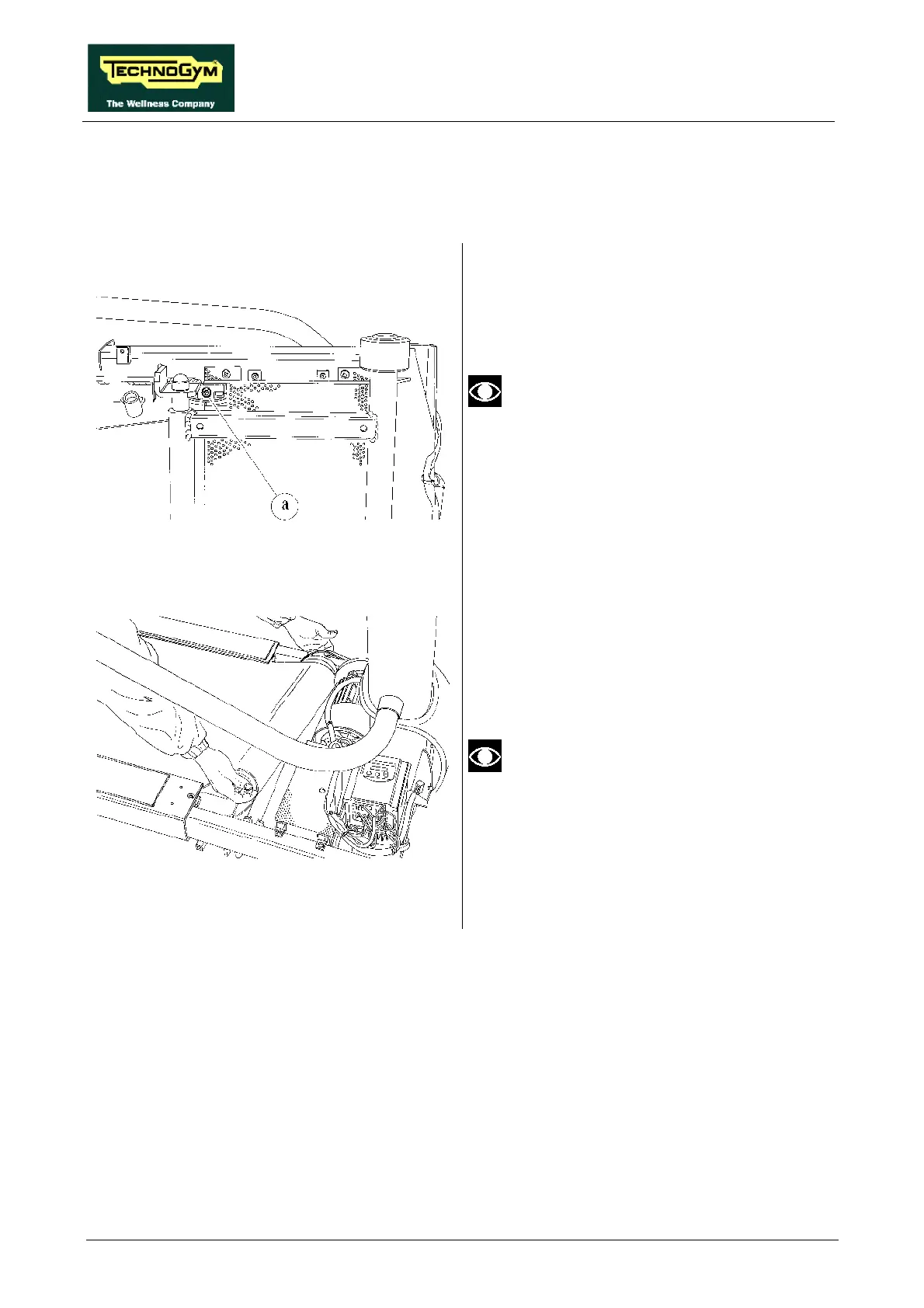

Figure 7.9-1
Carry out the procedure described in paragraph
7.7. “Disassembling the motor guard”.
1. Slacken the drive-belt tension by turning the
rear roller fixing screws.
To facilitate the subsequent tightening
of the tread-belt, move the seam to the
underside of the machine and measure
out a distance of 1 m on the belt,
marking its ends with a white felt tip
pen.
2. Overturn the machine on the right side.
3. On each side, back off the screw a using a 6-
mm hex T wrench.
Figure 7.9-2
4. Disengage the drive-belt from the MOTOR
ROLLER.
If it proves difficult to disengage the
DRIVE-BELT, slacken its tension as
described in paragraph 8.5.
Continued on the following page →
