FORMA: Service & Maintenance manual - rev. 3.0
Page 7.19
7.16. DISASSEMBLING THE ELECTRONIC CIRCUIT BOARDS

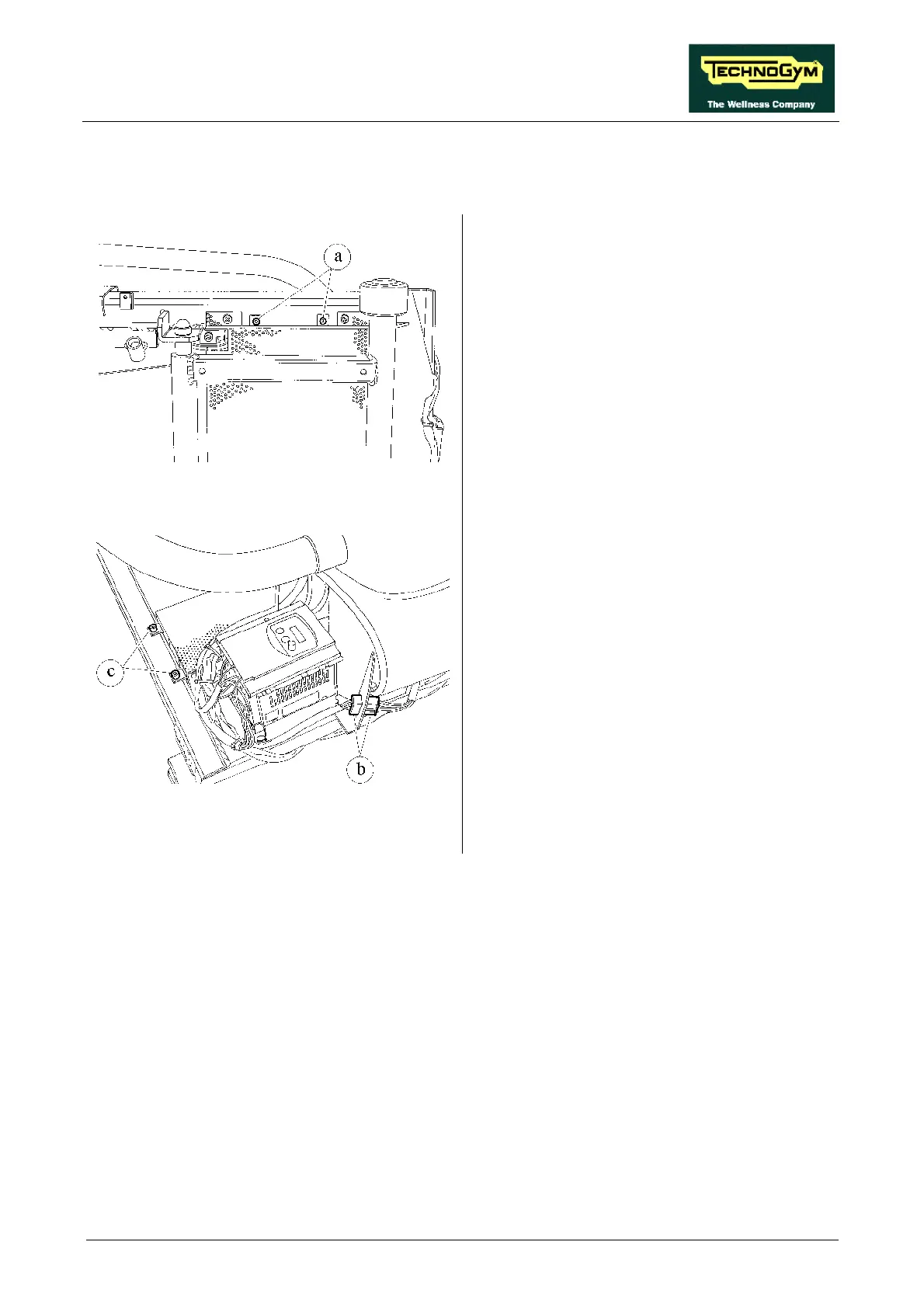

Figure 7.16-1
Carry out the procedures described in paragraph
7.7. “Disassembling the motor guard”.
1. Back off the 2 screws a using a 5-mm hex T
wrench.
Figure 7.16-2
2. Cut the cable locking strips.
3. Unplug connectors b.
4. Back off the 2 screws c using a 5-mm hex T
wrench.
5. Remove the electrical box d.
Place the box on a work bench.
Continued on the following page →
