7.13. DISASSEMBLING THE SIDE GUARDS

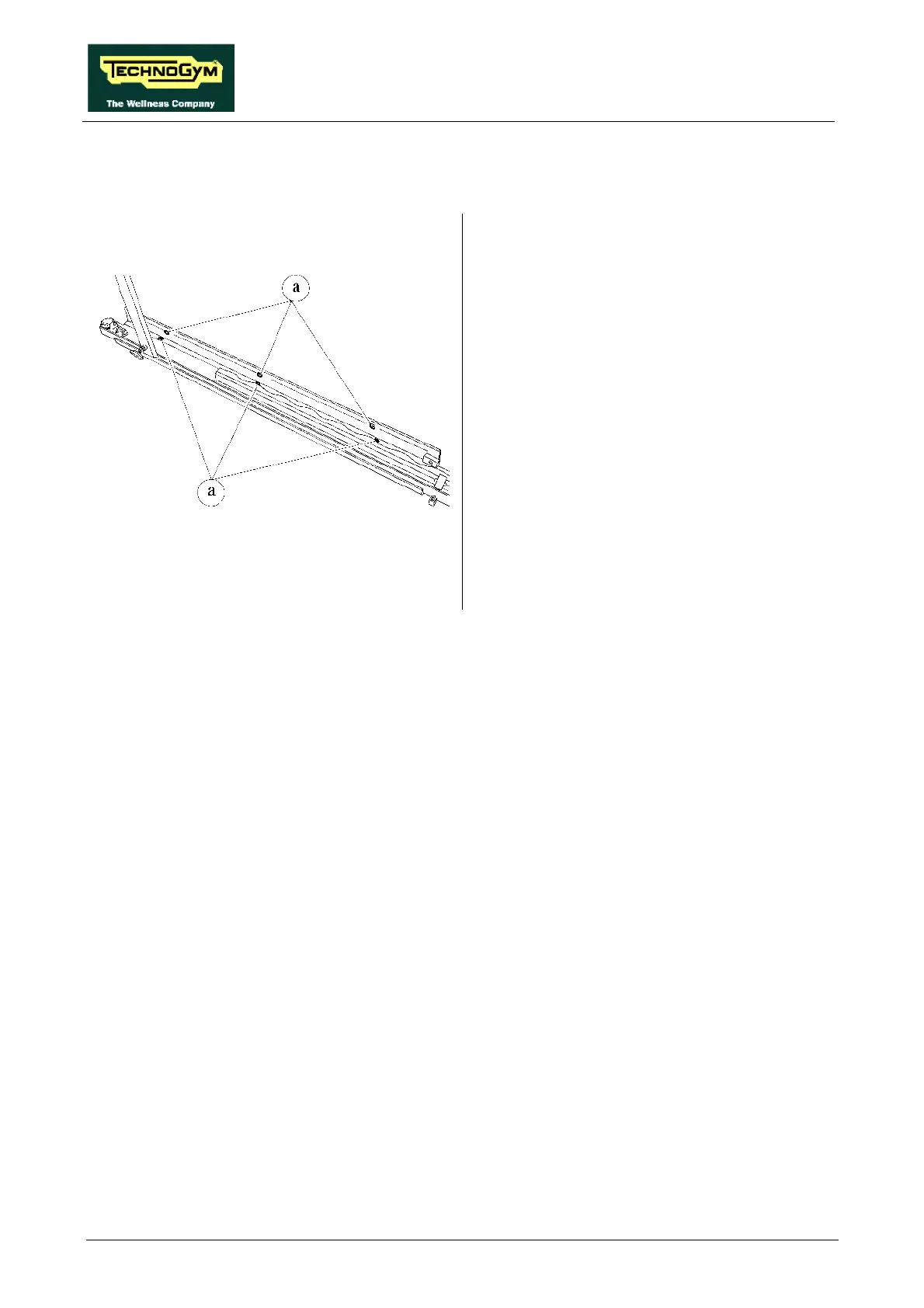

Figure 7.13-1
Carry out the procedures described in paragraphs
7.7. “Disassembling the motor guard”, 7.8.
“Disassembling the rear roller”, 7.9.
“Disassembling the motor roller and drive-belt”
and 7.10. “Disassembling the tread-belt and
running track”.
To remove a SIDE GUARD:
1. Overturn the machine on the opposite side.
2. Back off the 6 screws a using a large phillips
screwdriver.
3. Remove the SIDE GUARD by pulling it
toward the back.
To reassemble the SIDE GUARDS, carry out the
above steps in reverse order.
