FORMA: Service & Maintenance manual - rev. 3.0
Page 7.12
7.10. DISASSEMBLING THE TREAD-BELT AND RUNNING
TRACK

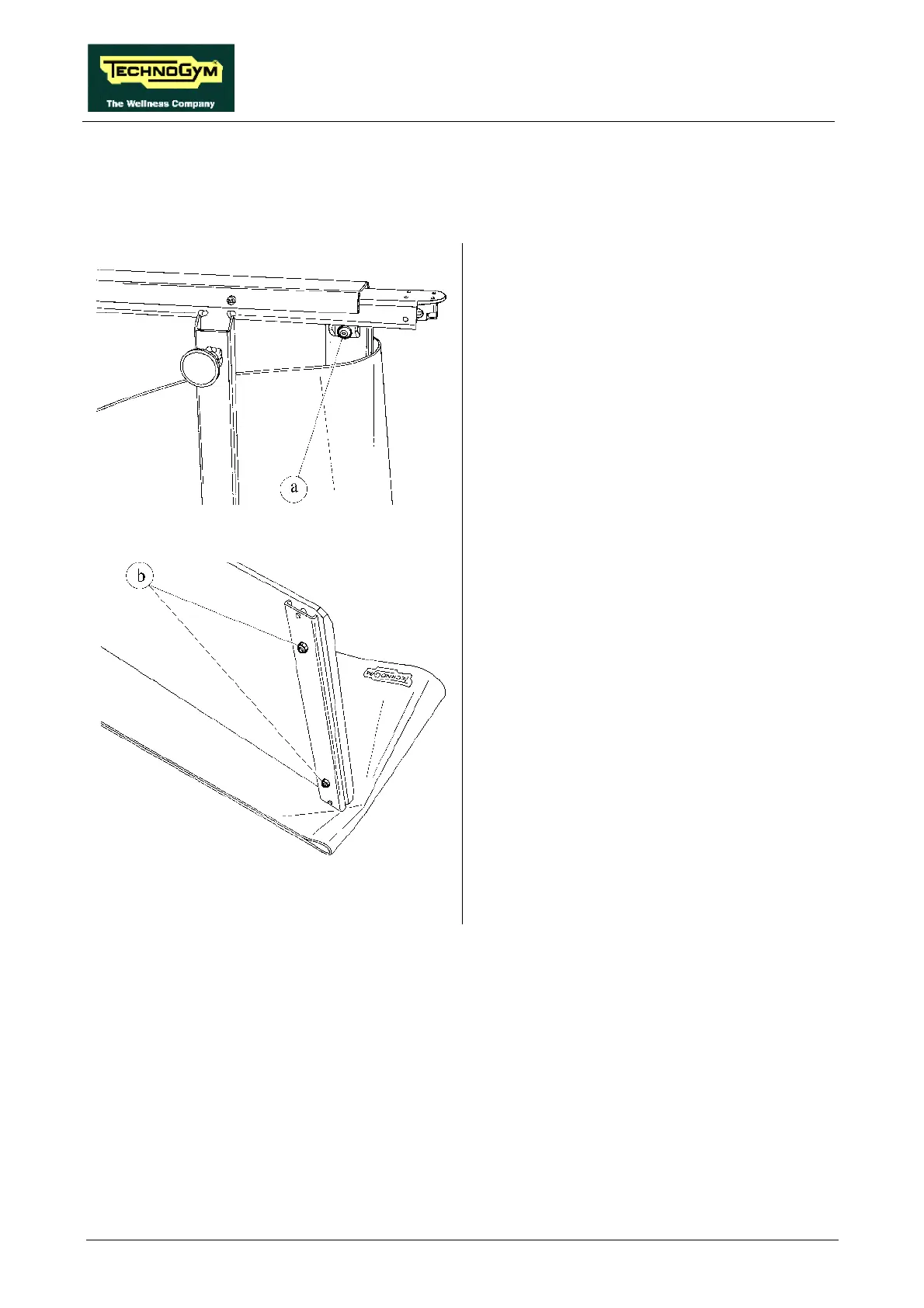

Figure 7.10-1
Carry out the procedures described in paragraphs
7.7. “Disassembling the motor guard”, 7.8.
“Disassembling the rear roller” and 7.9.
“Disassembling the motor roller and drive-belt”.
1. Overturn the machine on the right side.
2. Back off the 2 rear screws a using a 5-mm T
wrench.
Figure 7.10-2
3. Remove the RUNNING TRACK and
TREAD-BELT group from the back.
4. Remove the TREAD-BELT from the
RUNNING TRACK.
To separate RUNNING TRACK from the plate
fixing it to the frame:
1. Holding in place the 2 nuts b with a 13-mm
wrench, back off their screws using a 5-mm
hex T wrench.
Continued on the following page →
