FORMA: Service & Maintenance manual - rev. 3.0
Page 7.5
7.5. DISASSEMBLING THE CARDIO RECEIVER

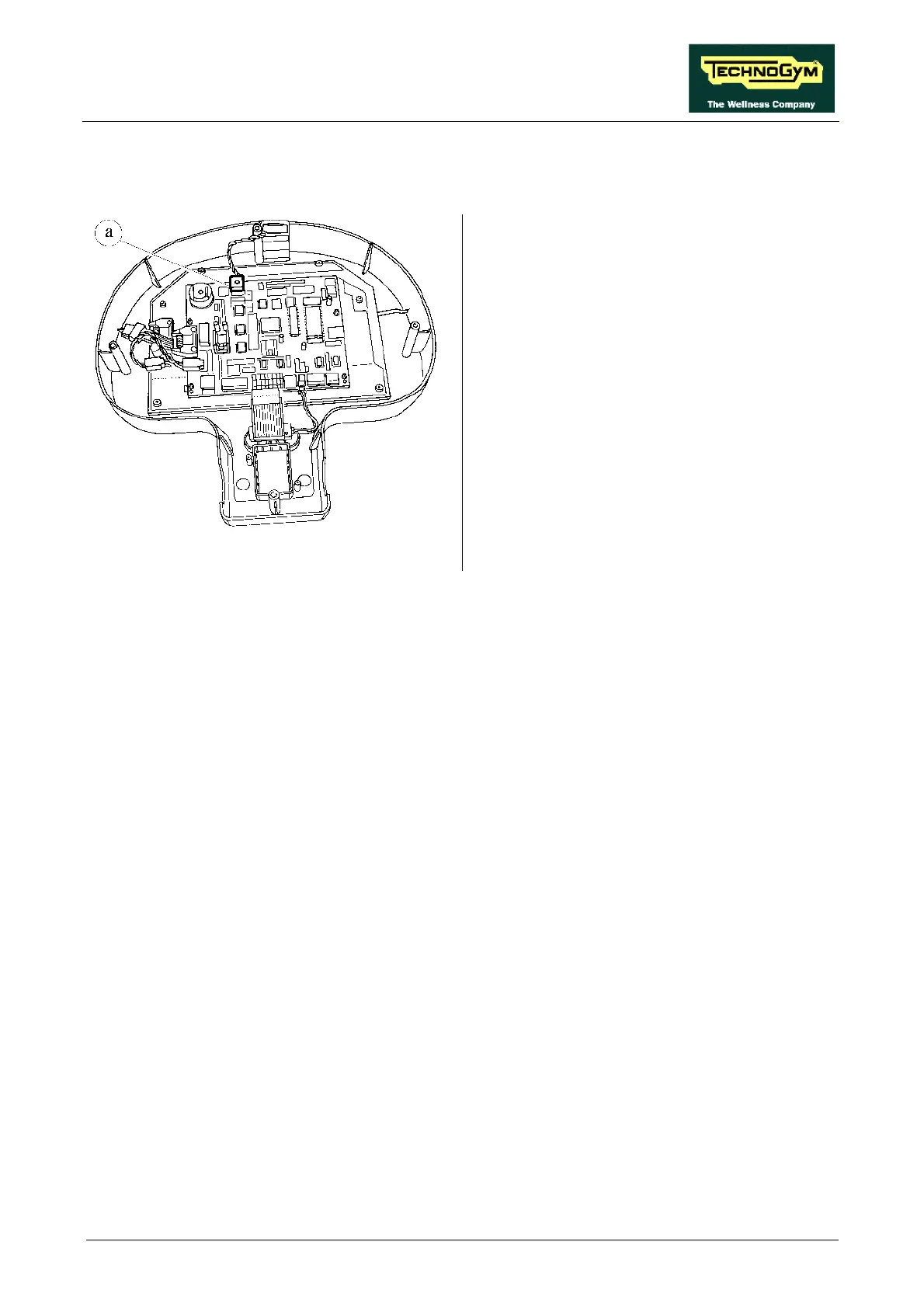

Figure 7.5-1
Carry out the procedure described in paragraph
7.1. “Disassembling the display”.
With the display placed on a work bench:
1. Unplug connector a of cable RL-14 from the
CPU board.
2. Remove the strap securing the housing.
3. Remove the RECEIVER.
To reassemble the RECEIVER, carry out the
above steps in reverse order, placing it between
the 2 foam pads.
