SKILLROW:
Technical Service Guide - Rev. 1.1
Page 25e-mail: support@technogym.com
3.2.2 GENERATOR

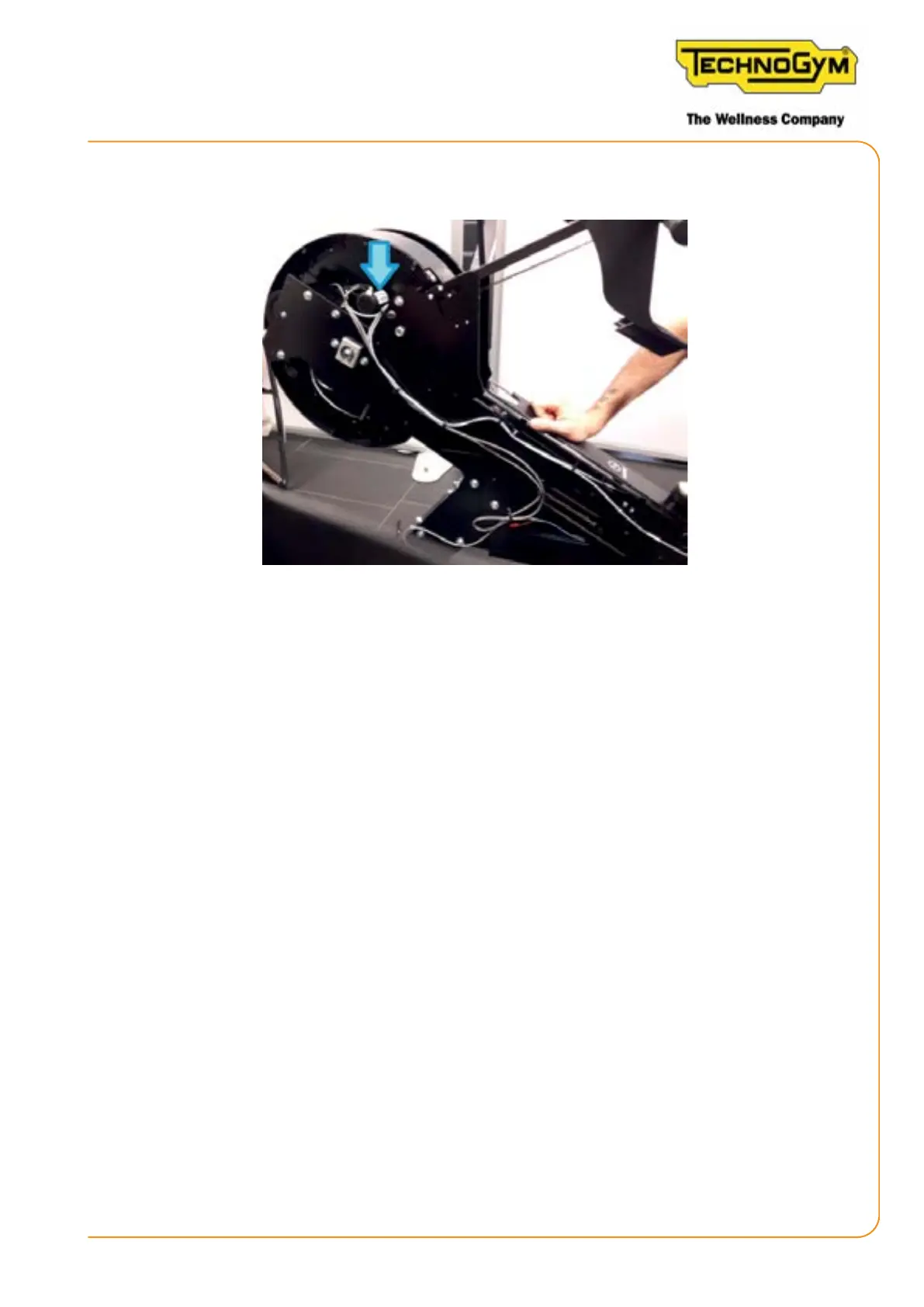

Figure 8: left side of the equipment
Generator 25W.
The generator supplies power to all the electronic components when the voltage exceeds 12V. It
directly powers the Low Kit Board.
The generator converts mechanical energy into electrical energy; the generator provides a fre-
quency signal that is analysed by a U-I microprocessor; Two measurements are obtained:
1. Speed of rotation of the ywheel (spm): increasing speed of rotation of the ywheel, increases
the frequency of the RPM signal;
2. Acceleration / Deceleration of the ywheel.
