7. DISASSEMBLY
7.1 DISASSEMBLING THE LEFT GUARD
 Ifyouneedtoarrivetothebaery,theelasticsorchain,youshouldremovetheleftguard.

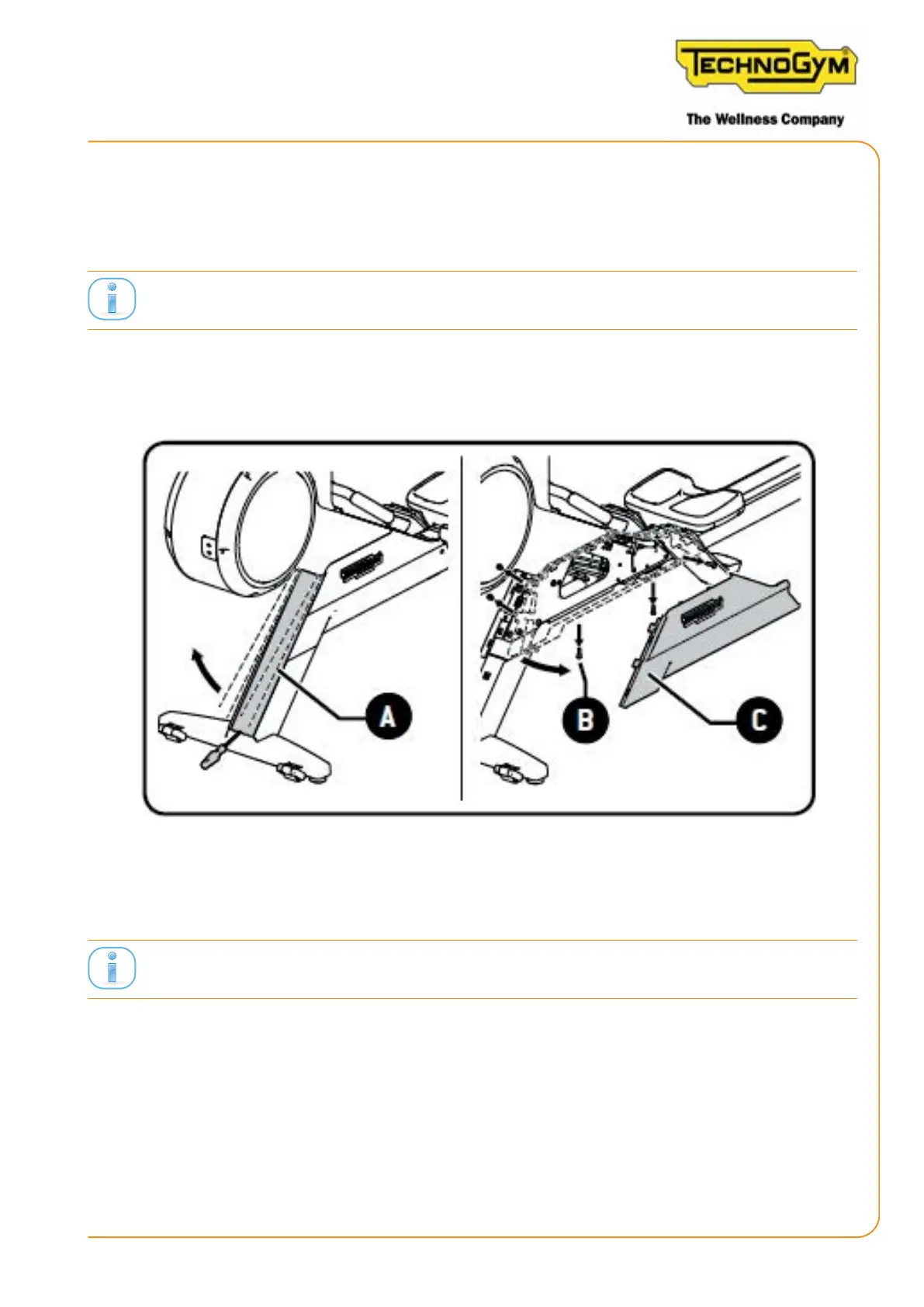

Remove the front guard (A). TOOL: at screwdriver.
Unscrew the 5 screws (B) to remove the left guard (C) (TOOL: 3mm hex wrench; nano medium
Phillips screwdriver).
Figure 39
7.2 DISASSEMBLING THE GRILLES
 Ifyouneedtoremovethegrilles,followtheprocedurebelow.
1. Unscrew the screw (A); hold the grille (B) with one hand.
2. Unscrew the two screws (G) of the black box.
3. Unscrew the screws (C) to remove the grille (B).
4. Remove the protection (D).
5. Unscrew the screws (E) to remove the grille (F).
To ret the grilles perform all the operations in reverse mode. To ret the grille (B) it’s important
