8. ADJUSTMENTS
8.1 ADJUSTING THE ELASTIC
If the bar does not return completely to the end of stroke, adjust the length of the elastic.

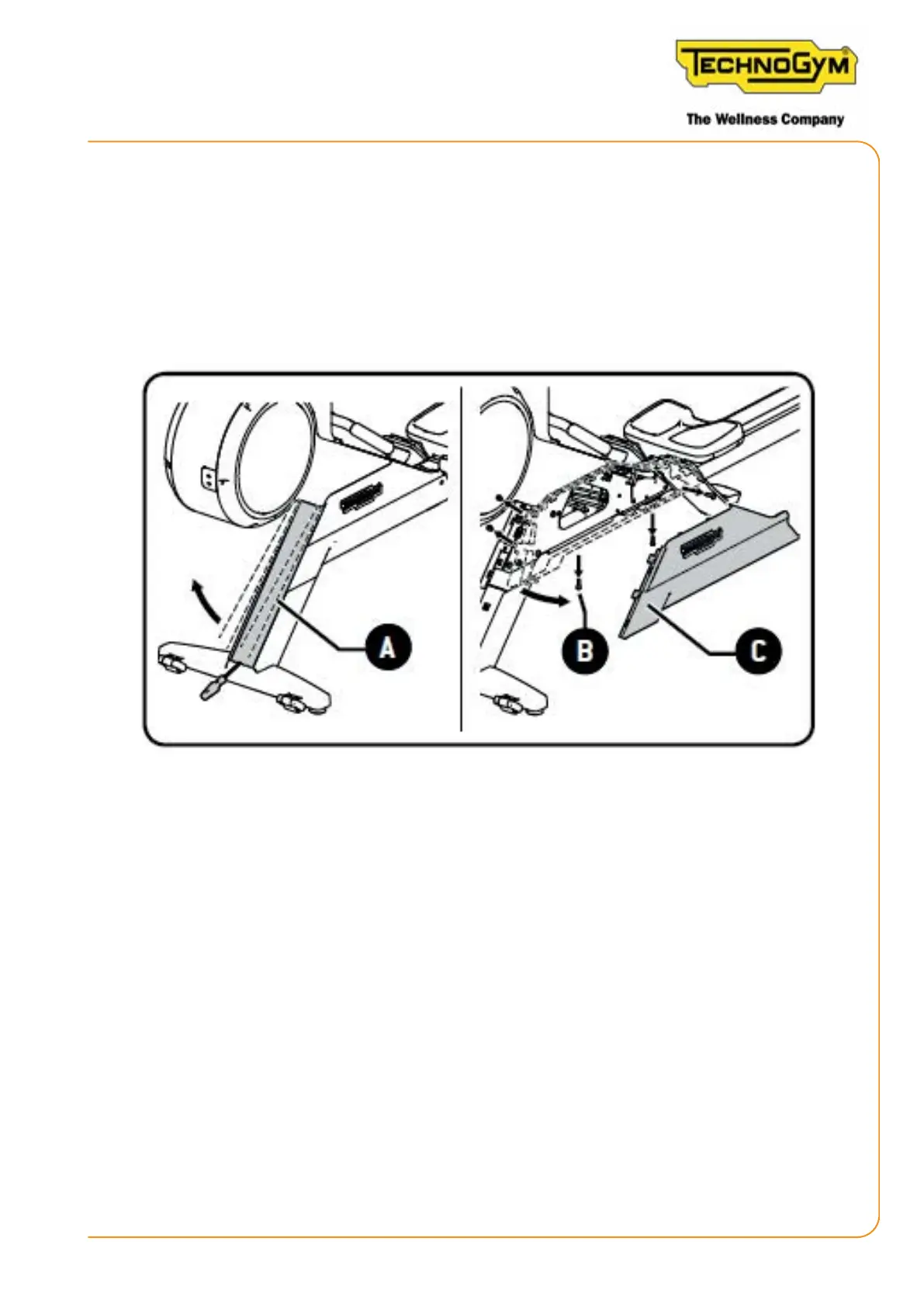

Remove the protection (A).
Unscrew the 5 screws (B) to remove the protection (C).
Figure 68
Make a knot at one end of the elastic and cut o the excess.
Reposition the end of the elastic in the slot.
Make a knot at the other end of the elastic and cut o the excess.
Reposition the end of the elastic in the slot.
Ret all the protections.
The elastic must be shortened to the same length on both ends.
