Technogym SKILLROW - Disassembling the Right Lateral Guards, the Collar and the Central Guard

7.4 DISASSEMBLING THE RIGHT LATERAL GUARDS, THE COLLAR AND THE
CENTRAL GUARD
 Ifyouneedtohaveaccesstocablesoftheknob,thepulleyoftheknobandtheanglesensorboard
followtheprocedurebelow.
1. Follow the procedure described at the paragraph “7.1 disassembling the left guard”.
2. Follow the procedure described at the paragraph “7.2 disassembling the grilles”, from point 1
to point 3.

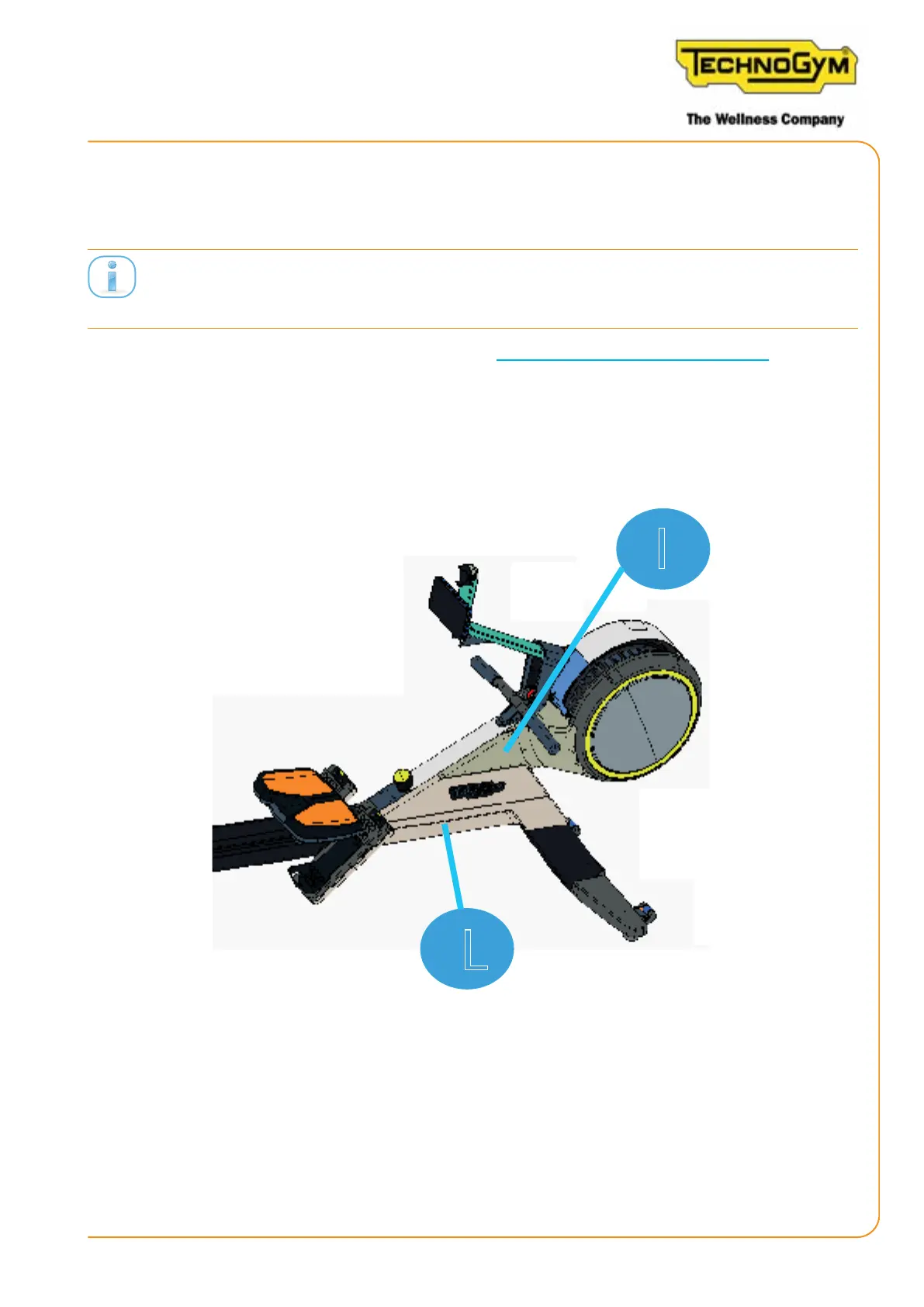

3. Remove the right upper guard (I), screwing the screw.
4. Remove the right lower guard (L), screwing the screws.
I
L
Figure 45
5. Remove the two screws of the collar (M); (TOOL: 3mm Hex wrench). Then move the collar to the
display. Fix the collar to the handlebar, through an adhesive tape.
