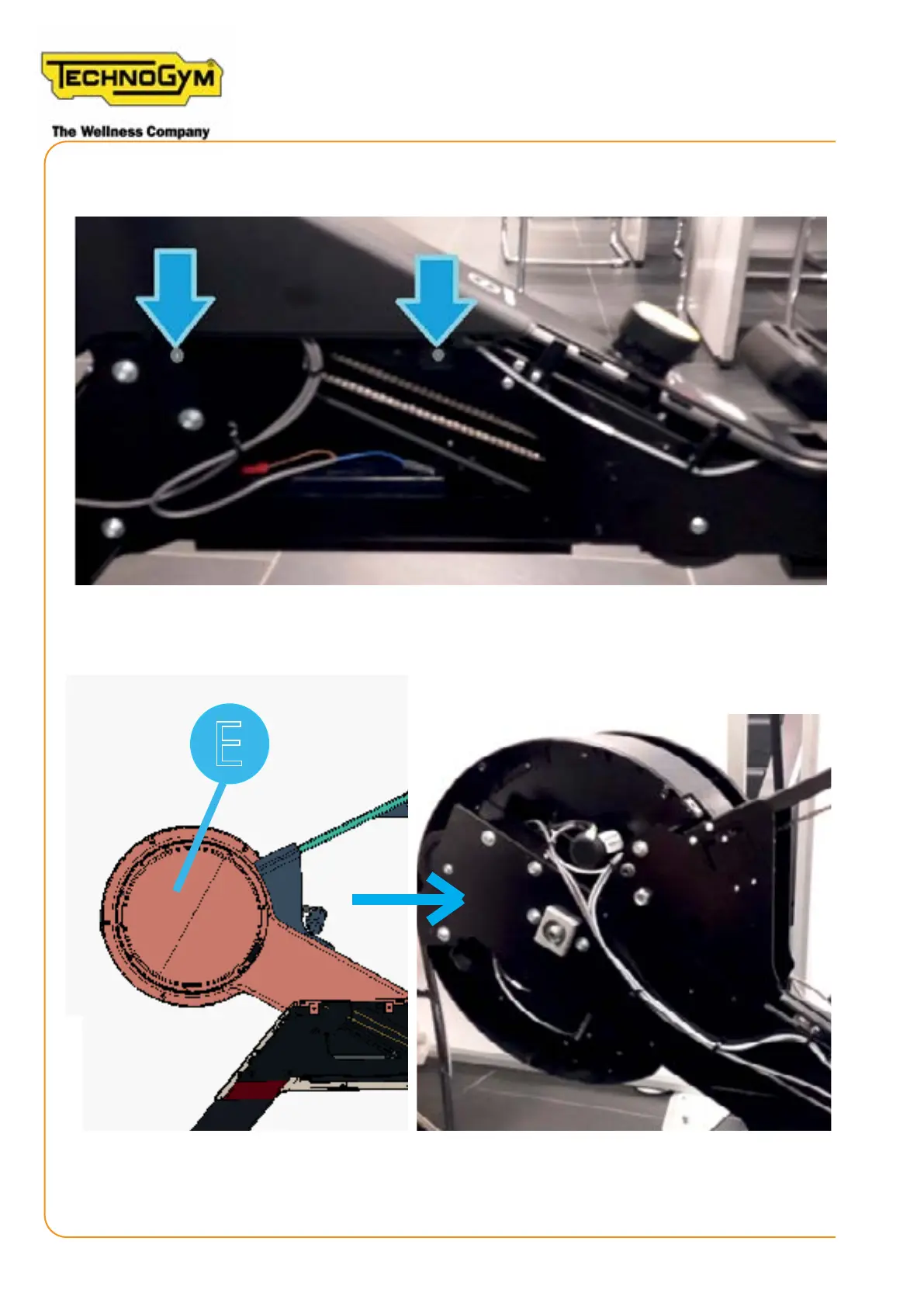

3. Unscrew the lateral two screws. (TOOL: Medium Phillips screwdriver). Then, remove the left

spiral guard (E).

Figure 43

Figure 44

SKILLROW:

Technical Service Guide - Rev. 1.1

Page 76
