3.2.4 ANGLE SENSOR BOARD

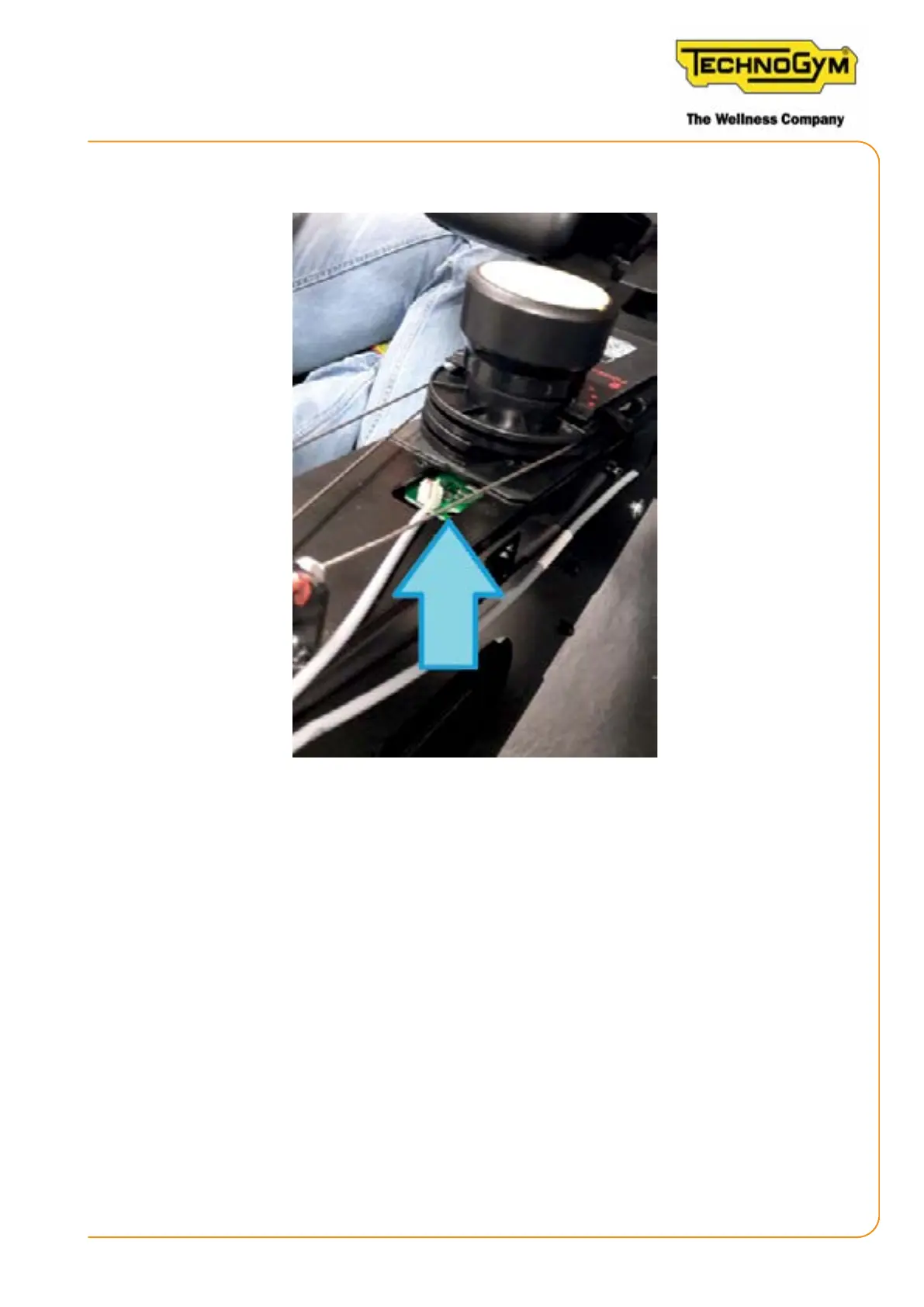

Figure 10
The Angle Sensor Board contains a single turn continuous rotation potentiometer.
The potentiometer measures the angular displacement of the knob (mode regulator). The Angle
Sensor Board directly transmits this information to the CPU mainboard. The knob allows the user
to set normal (ROWING) or magnetic (POWER) exercise levels.
If you replace or move tha angle sensor board (potentiometer), you must calibrate the equip-
ment.
The Angle Sensor Board is powered 3.3V.
