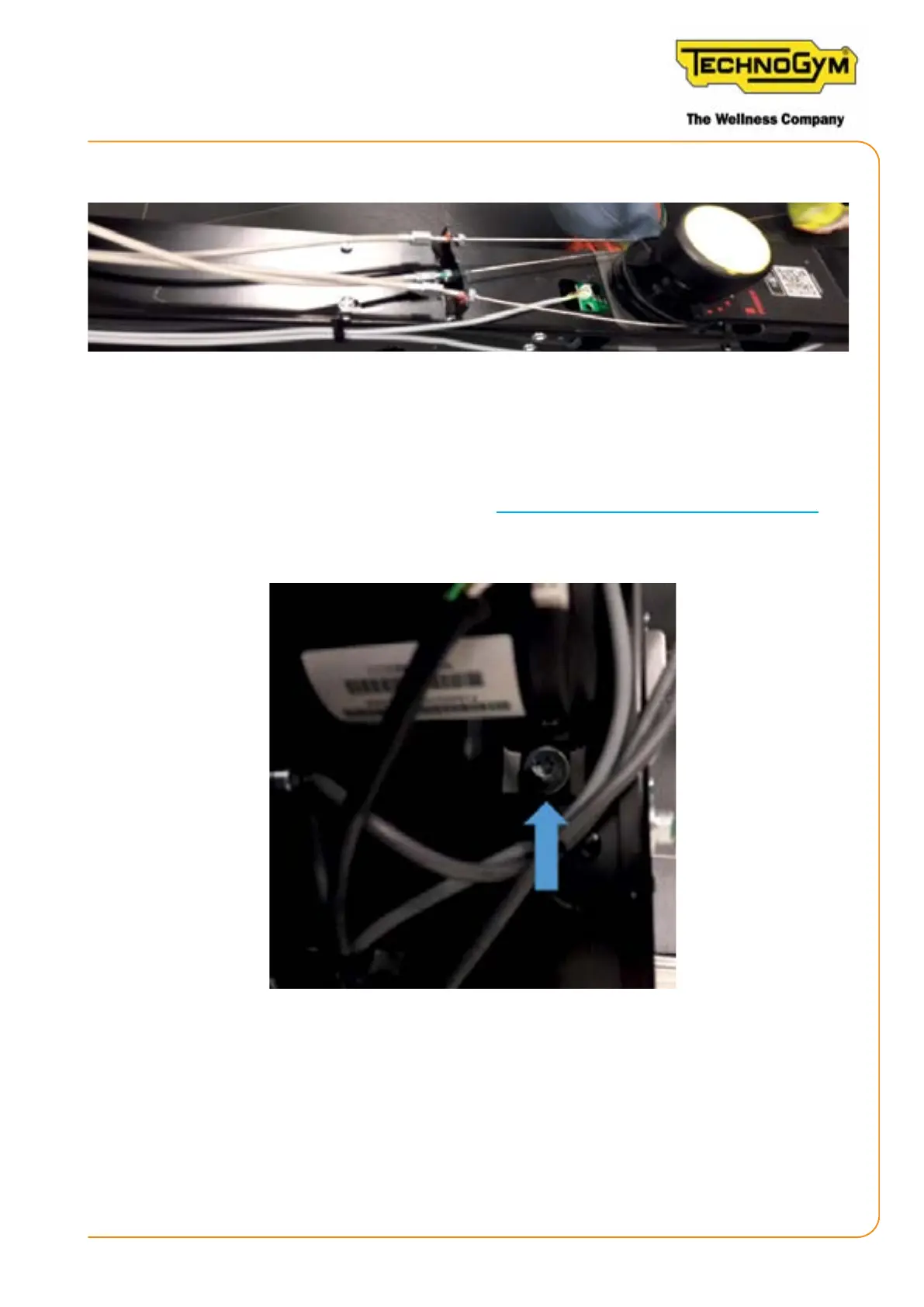

Figure 48
7.5 DISASSEMBLING AND REPLACING THE CHAIN
1. Follow the procedure described at the paragraph “7.3 disassembling the left spiral guard”.
2. Remove the anti-derailment screw and frame. (TOOL: 5mm Allen wrench). The anti-derailment
frame is in proximity of the generator.
Figure 49
3. Release the chain, unhooking the hook.
