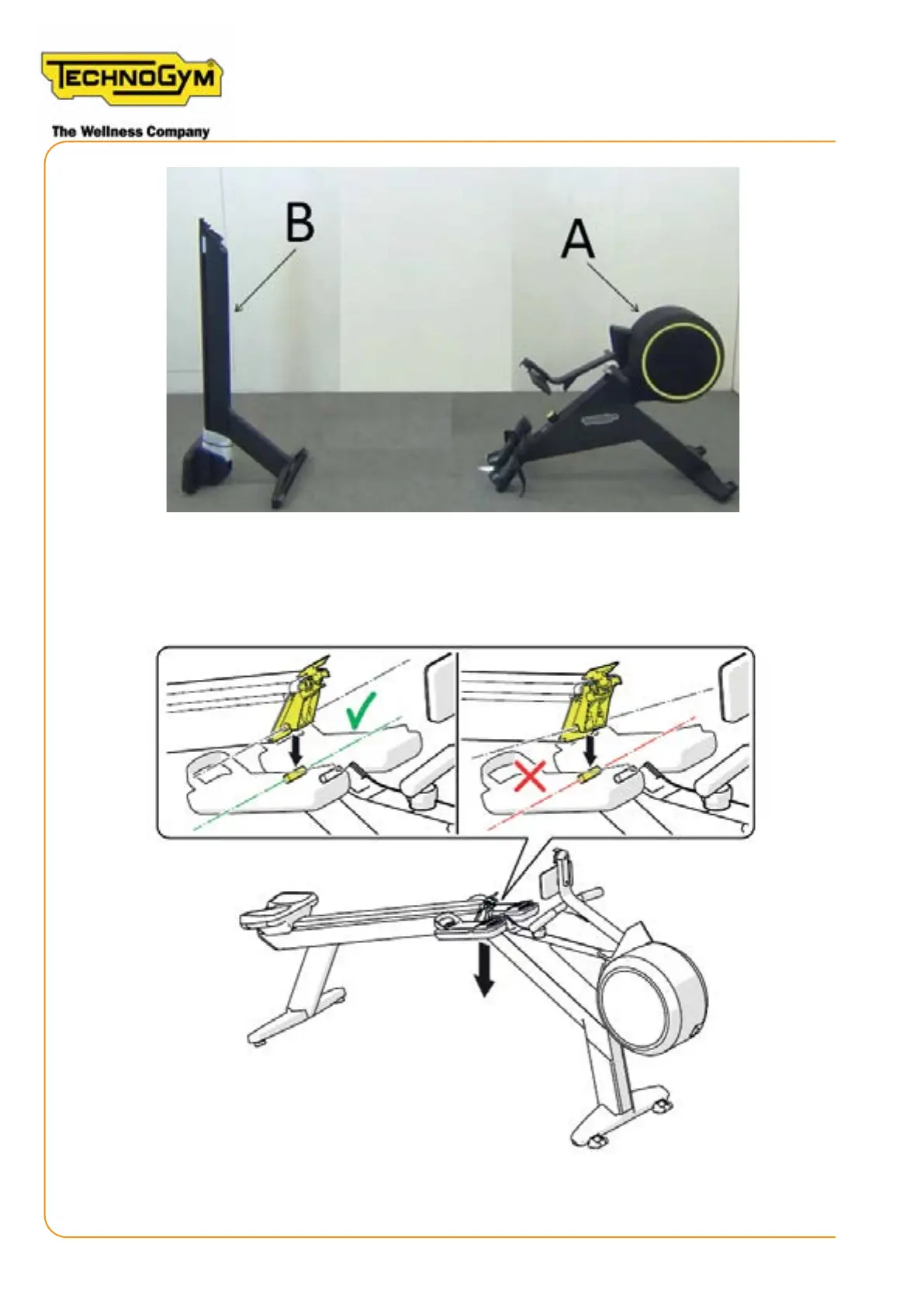

Figure 16: dismantled components
2.TousetheSKILLROW,jointhetwopartsAandBtogether;thecouplingelementswillengage
automatically.Forthecoupling,makesurethatthetwopartsareperfectlyaligned.Then,remove
theprotectionsandliftthedisplaybracket.
Figure 17
SKILLROW:
