Figure 35
[1]: You must use the external power supply with the following characteristics: 24 Vdc 0.5A jack
5.5x2.1 .
The TG external power supply 0WR01188xx (MYCYCLING power supply) is an example of an ap-
plicable power supply, already tested with the SKILLROW.
[2]: the fuse is present in the Low-Kit board (F3). Follow the below procedure to check it:
a. Use a multimeter set to measure the continuity;
b. Place the tips of the multimeter against the two metal ends of the fuse (F3) (parallelepiped vol-
ume);
c. If there’s continuity, the fuse is OK.

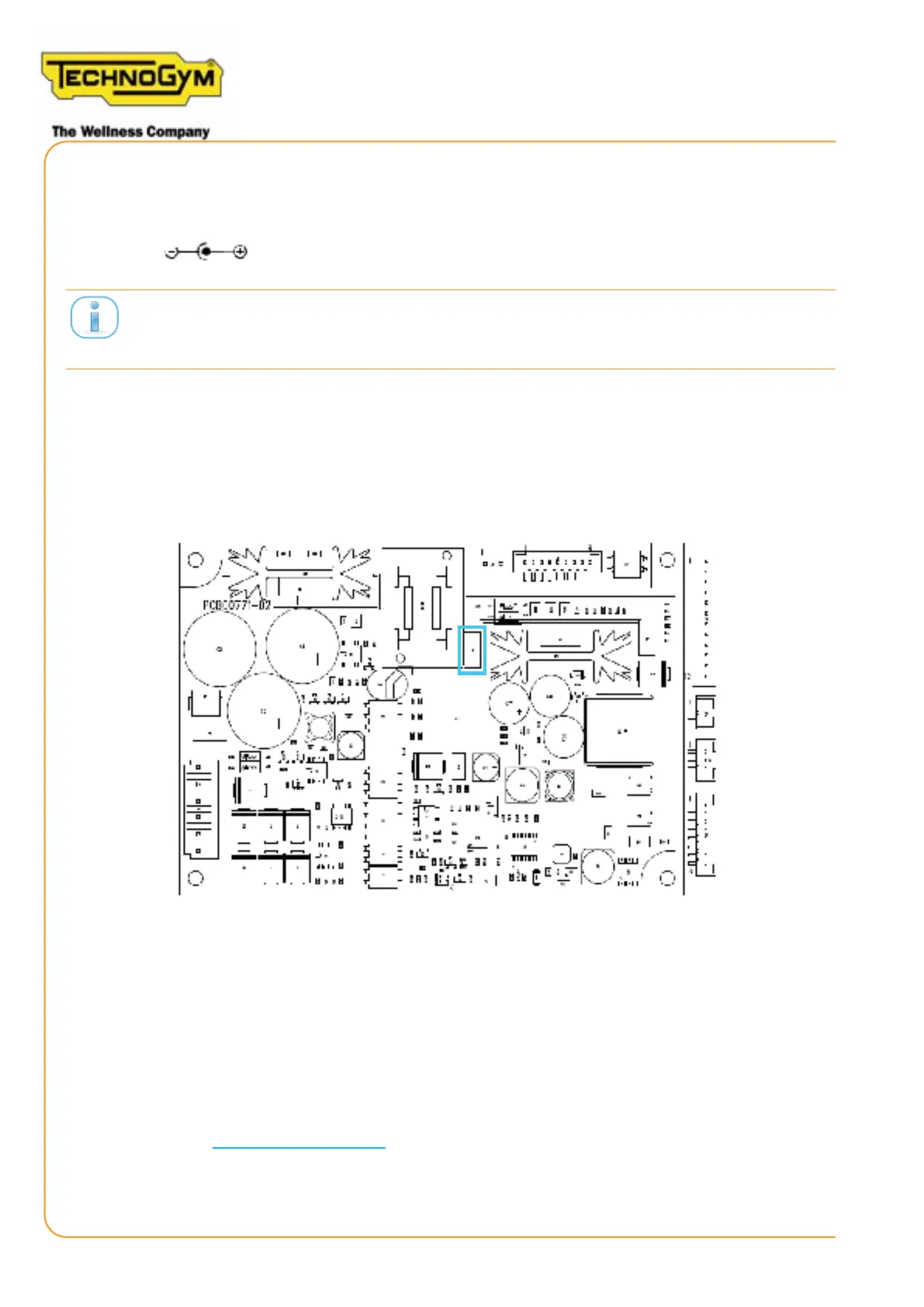

Figure 36: low kit board (detail of Fuse in F3)
[3]: If you replace the U-I console you must:
- replace the old adhesive QR code with the new one;
- write the SN of the equipment in the CPU;
- congure the console;
- calibrate the equipment.
[4]: For details see “3.2.5 low kit board”.
