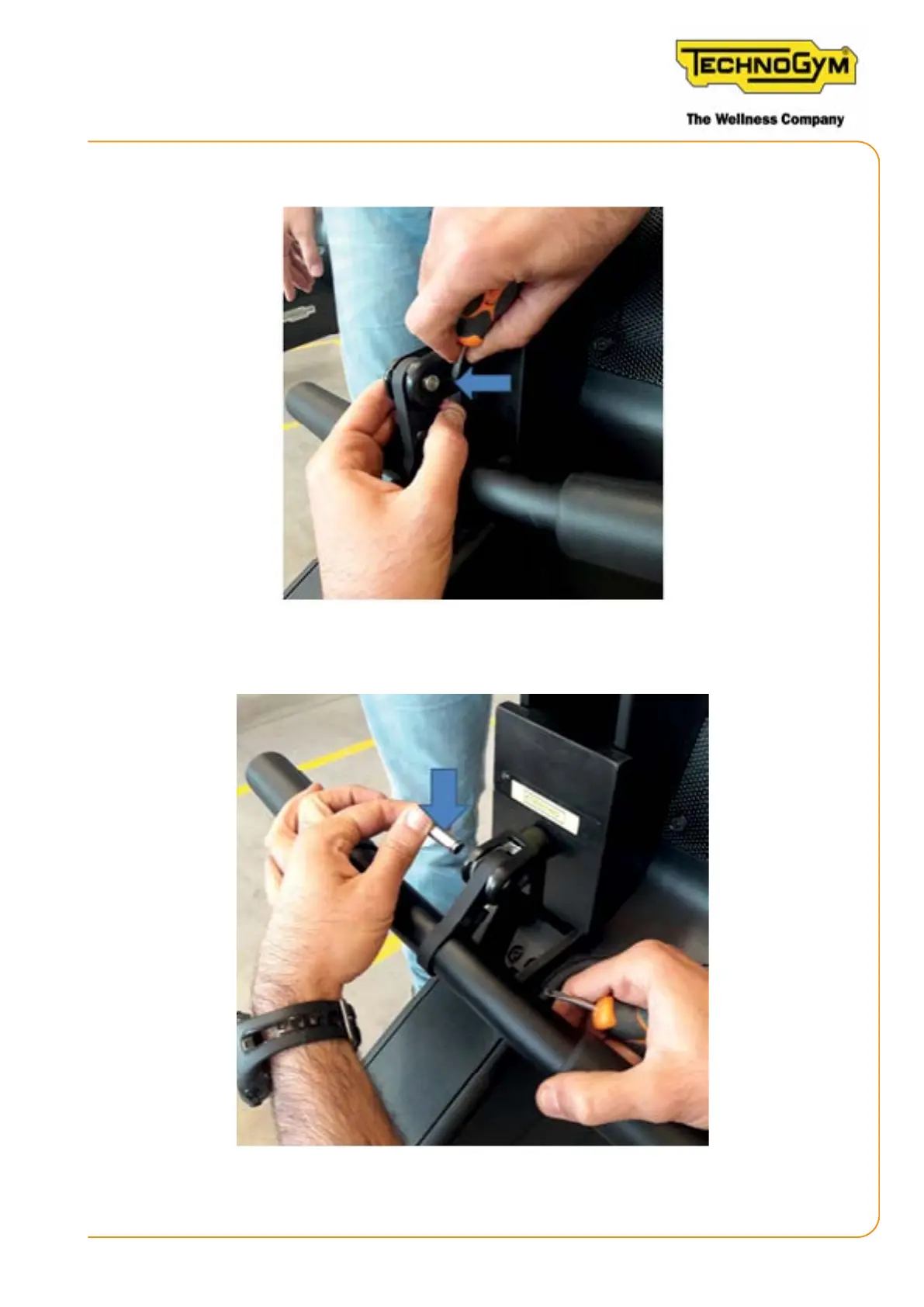

1-Remove the seeger. TOOL: Flat Phillips screwdriver.

Figure 63

2-Remove the pivot and remove the handlebar.

Figure 64

SKILLROW:

Technical Service Guide - Rev. 1.1

Page 89e-mail: support@technogym.com
