(2) Automatic gain 1&2 switch condition (by Speed command).
When speed command is less than Cn022 Gain 1 is selected.
When speed command is greater than Cn022 Gain 2 is selected.
When Gain 2 is active and speed command becomes less than Cn022 system will automatically switch back
to Gain 1 the switch time delay can be set by Cn020.

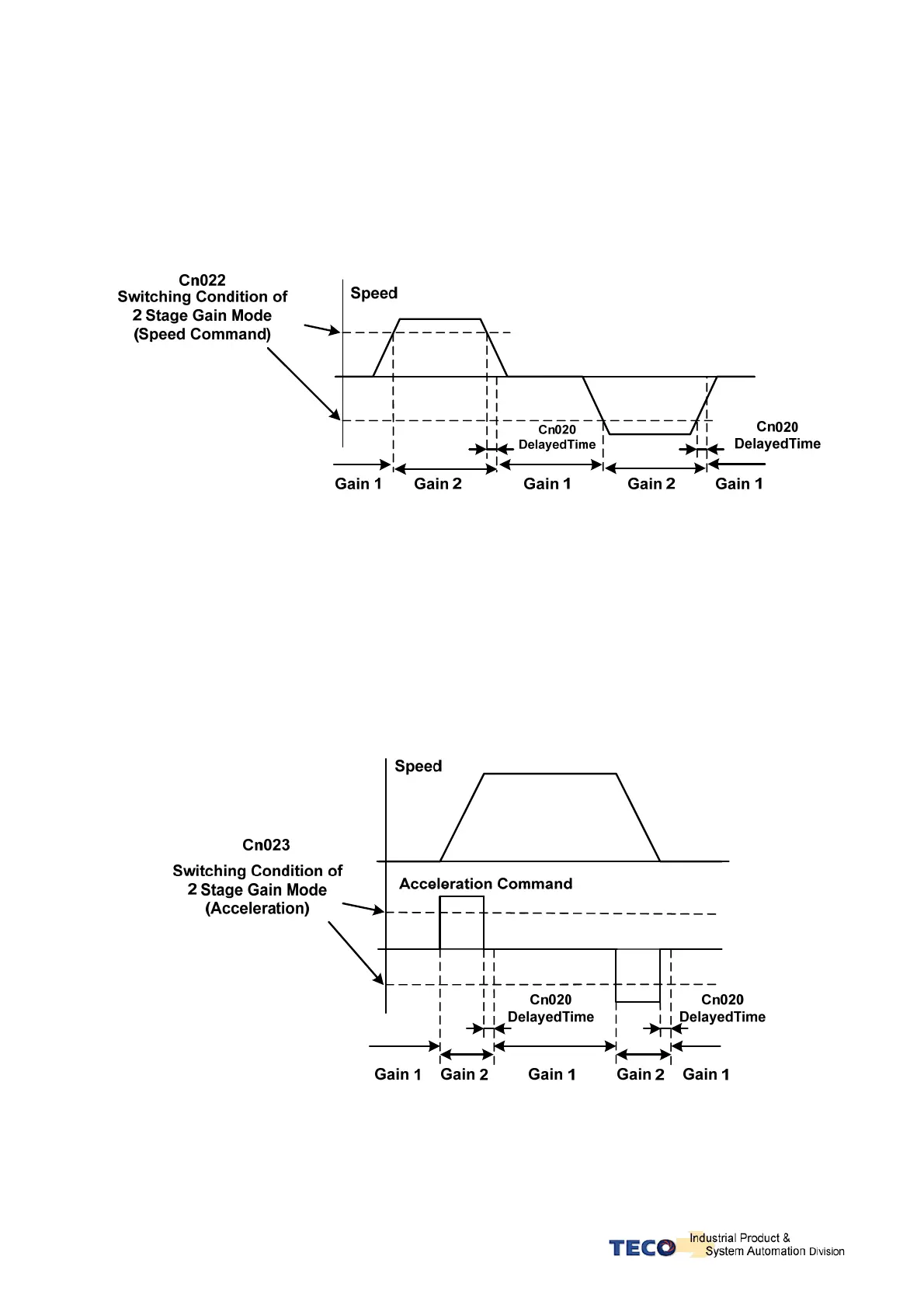

As show in the diagram below :
(3) Automatic gain 1&2 switch condition (by Acceleration command).
When acceleration command is less than Cn023 Gain 1 is selected.
When acceleration command is greater than Cn023 Gain 2 is selected.
When Gain 2 is active and acceleration command becomes less than Cn023 system will automatically
switch back to Gain 1 the switch time delay can be set by Cn020.
As show in the diagram below :
