5-2
5-2 T
orque mode
z
T
orque mode is used in applications such as
printing machines, coil wiring machines,
injection molding machines and specific
application that requi
ring torque control.
z

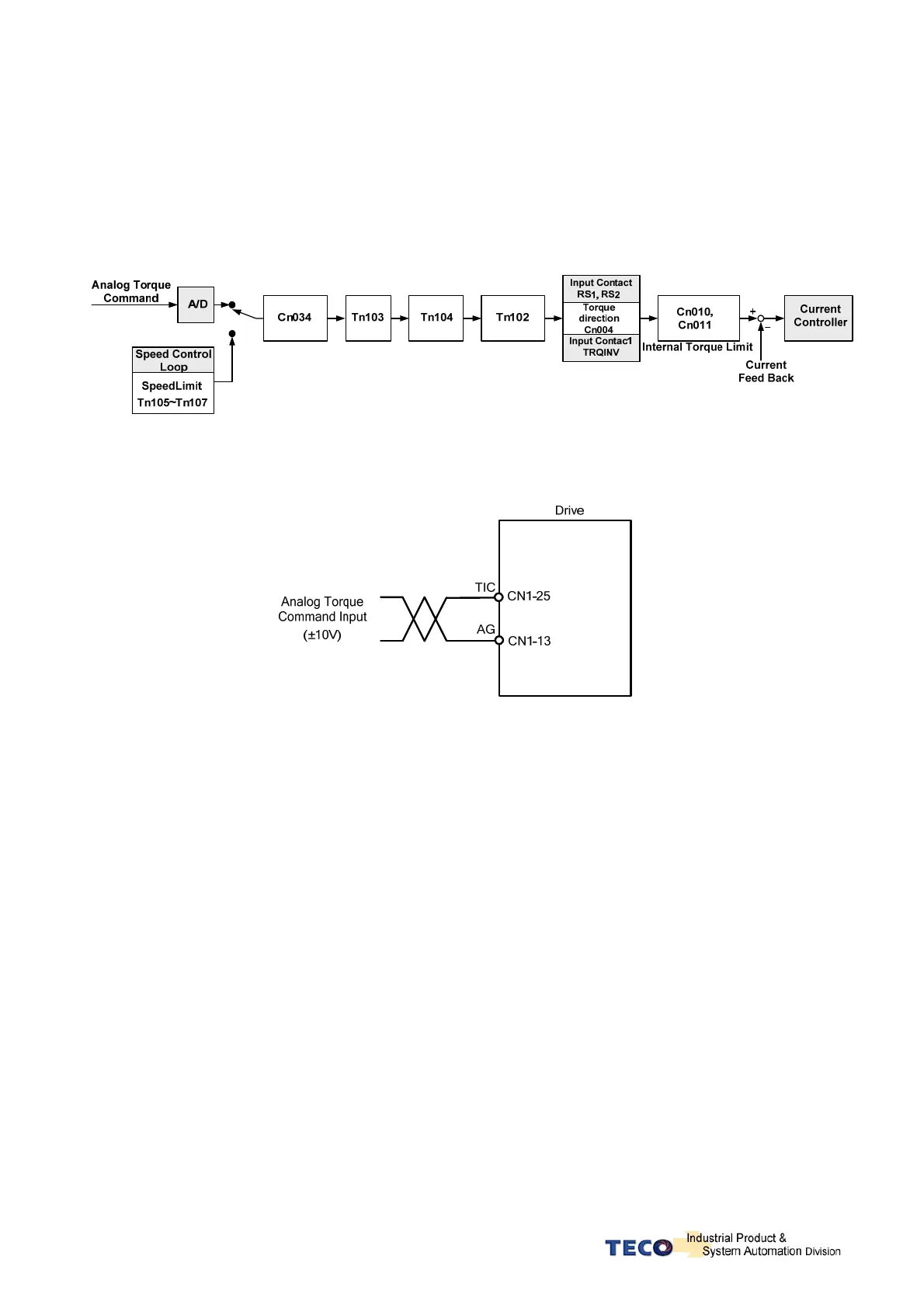

Diagram below shows the torque control process diagram.
Analog voltag
e torque command is applied to the driv
e input terminals as shown below:
Caution!
Care should be taken in selection of
required torque direction CW/CCW
.
Please refer to Chapter 5-2-4.
67
