2-3 Typical Circuit Wiring Examples

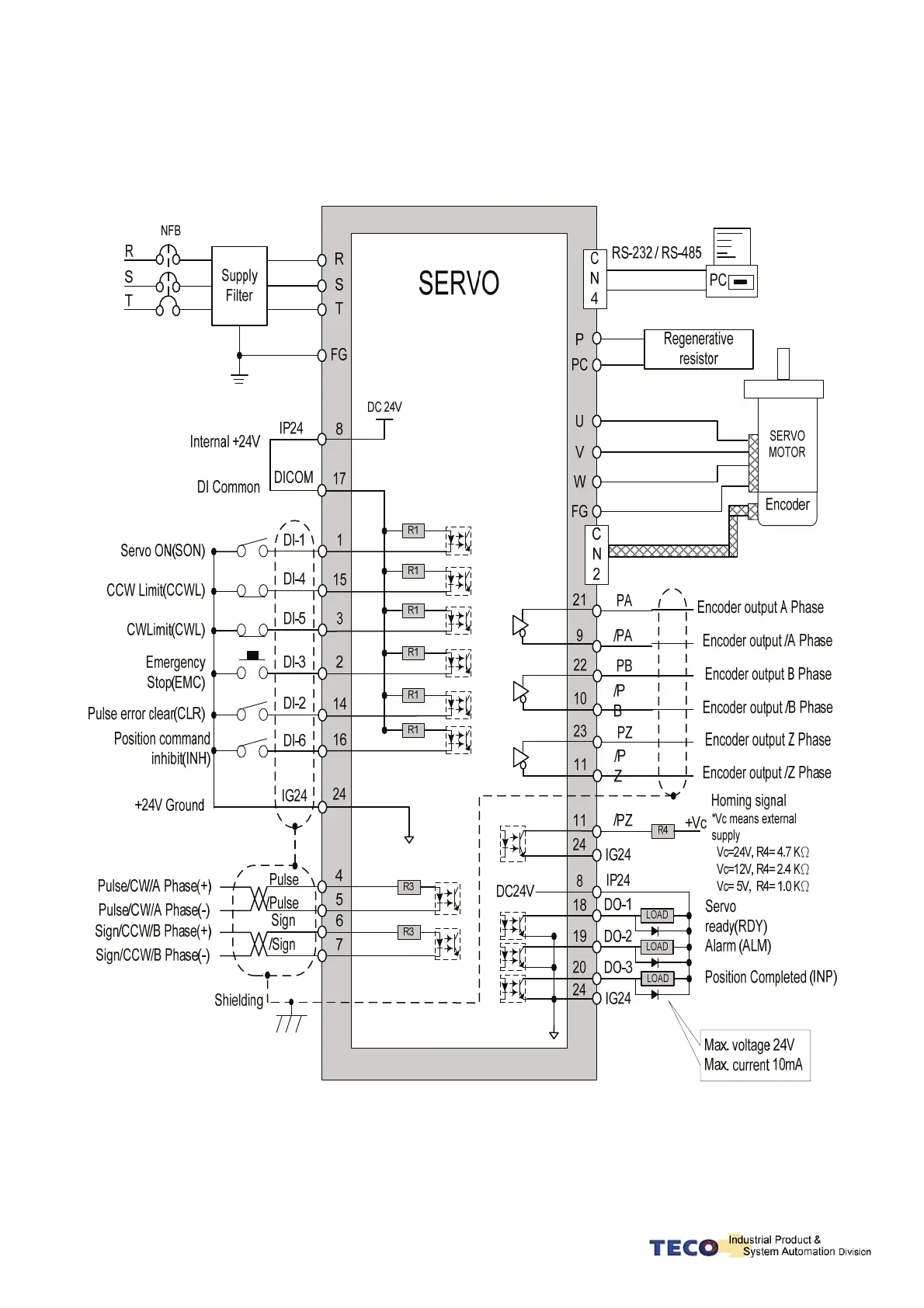

2-3-1 Position Control Mode (Pe Mode) (Line Driver)

Notes: Pe mode =External pulse positioning command
