TECO JSDEP Series - Wiring for Mechanical Brake

2-8
2-1-7 Wiring for Mechanical Brake
Uninstall BRAKE:
z JSMA-S/L series: Use Red wire and yellow wire connecting to DC +24V voltage(No polarity)
z JSMA-M/H series: BK outputs from A & F of Motor Power Joint, servo motor can operate
normally after uninstalling.

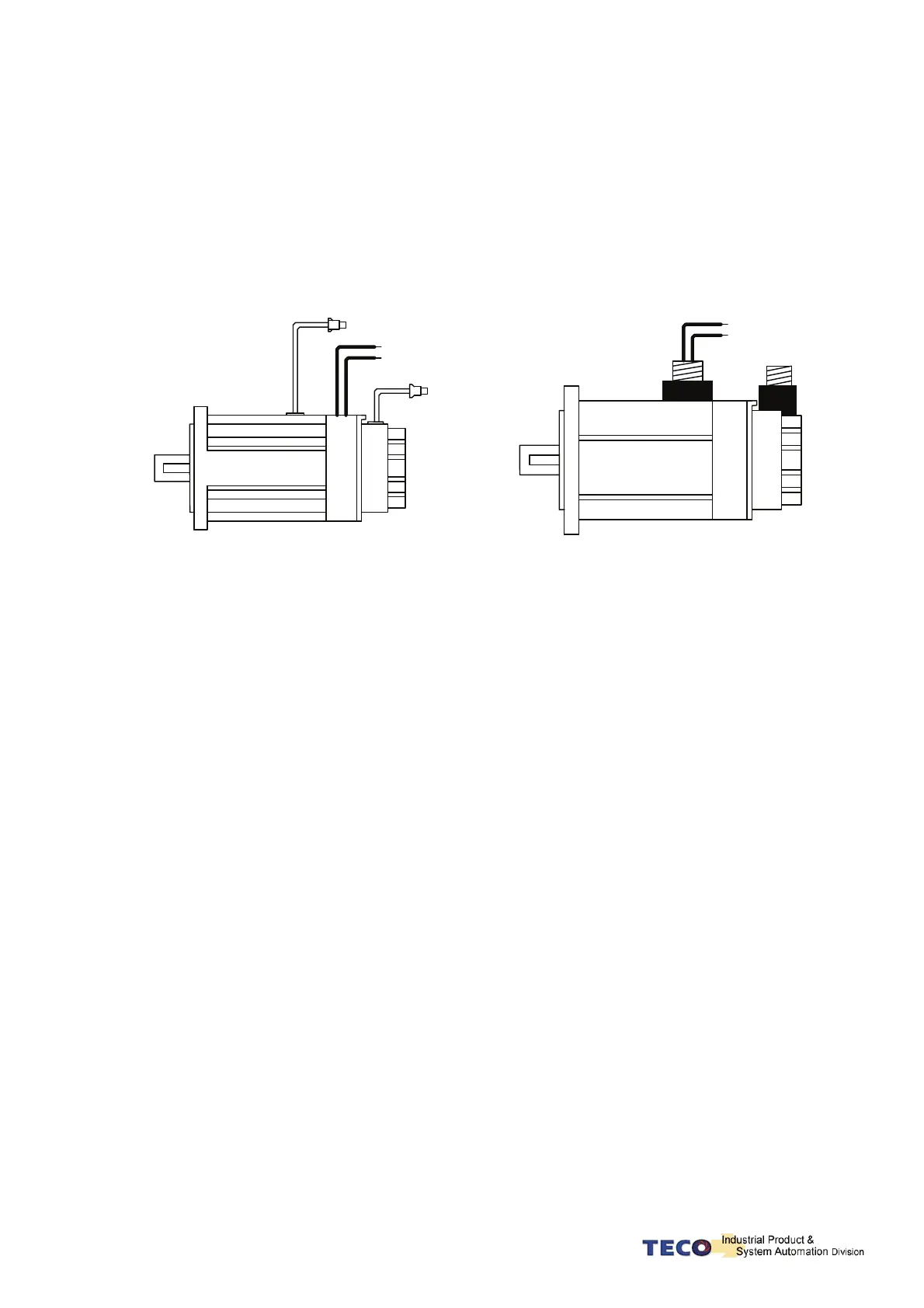

Yellow Wire
JSMA-S/L
A
F
Yellow Wire
Encoder
Brake
Encoder
Brake
JSMA-M/H
