2-2-2 Encoder Connector (CN2) Terminal Layout

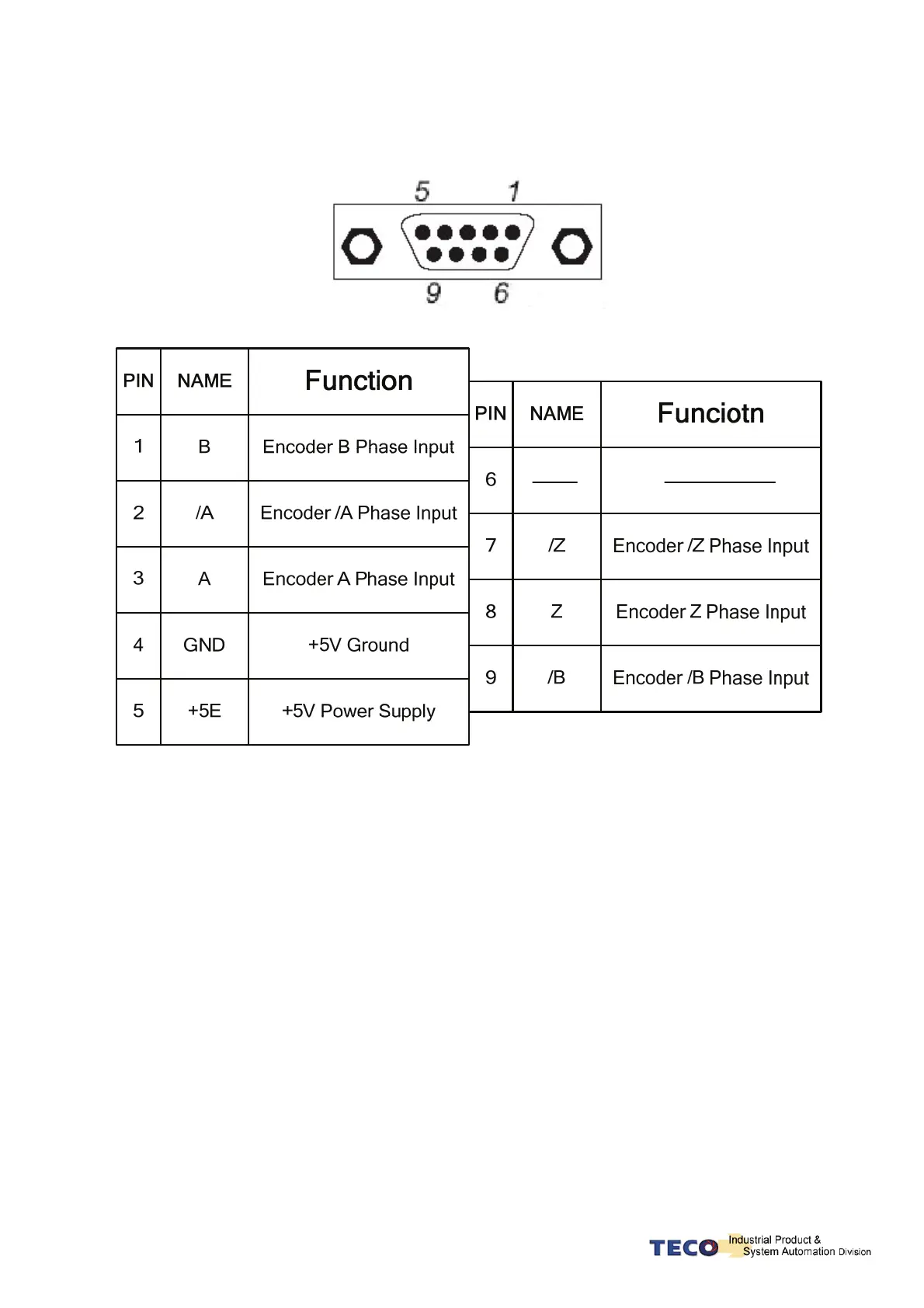

(1) Diagram of CN2 Terminal:

P.S. Do not wire to the terminal, which is un-operated.
