6. INSTALLATION
6.1 GENERAL
When you unpacked the control panel first time from the package you will find screw and EOL
Resistors inside which you can use for zone doubling.

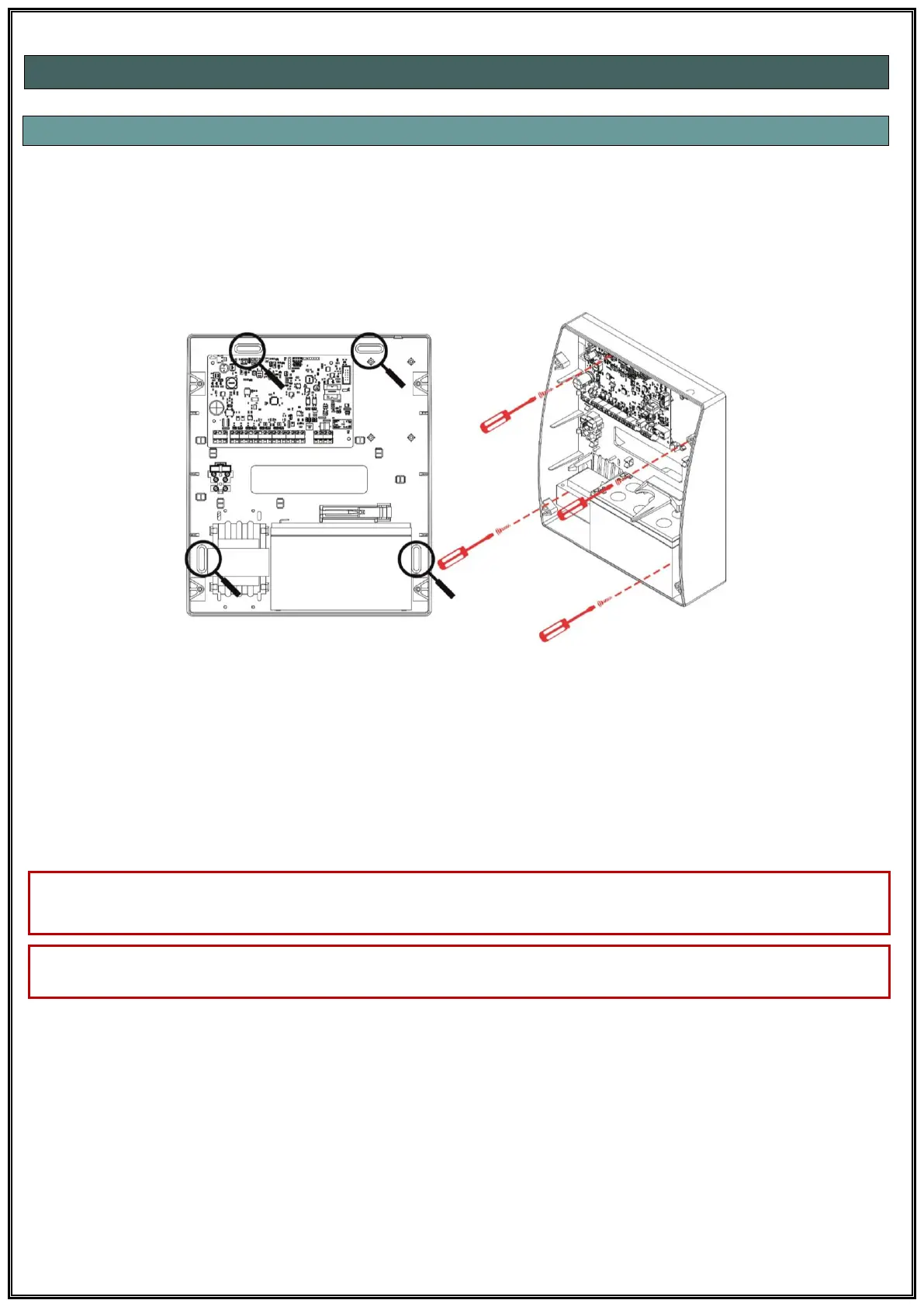

After drilling holes in the wall with 8mm drill, the panel can be mounted on the concrete wall by
using screws. The panel box consists of two parts, the body and the lid. The four screws on the
cover can be removed with screwdriver.
Detectors, siren, keypad, telephone connections are made by using the appropriate cable. Make sure
all connections are correct before the mains connection. It is recommended to use LIYCY cable with
outer braided wire shield and foil and to connect the shields with a wire to the ground line at the
mains terminal.
It is also recommended to connect the shield on the keypad cable to the EGND (ground) on the panel
and keypad side. 3x0.75 mm² standard cable can be used for electrical mains connection.
Important: This device must be installed in a place free from dust and moisture. Suitable for indoor
installation.
WARNING: Do not energize the panel until the installation is completed and all connections are
correct.
