TEKNİM PARS SERIES INTRUDER ALARM SYSTEM INSTALLATION AND PROGRAMMING MANUAL
18 / 81
6.6.2 TXM-5270 PSTN Module Connection
The TXM-5270 PSTN Module is designed for the Alarm Panel to send information to users or the
Alarm Reciever Center over the telephone line. Can be used in TSP-5324 and TSP-5208 Alarm
Panels.
TXM-5270 The module is mounted to 4 screwing places in the space on the right side of the alarm
panel and the connection to the alarm panel board is made with the flat ribbon cable as in below
figure.
Ps: TSP-5314 PSTN line input is fixed on the alarm panel. Only TXM-5272 GSM / GPRS Module can be
added to this panel.
6.6.3 TXM-5272 GSM-GPRS Module Connection (for TSP-5314 and TSP-5208)
The TXM-5272 GSM-GPRS Module is designed for the Alarm Panel to send information to users or to
the Alarm Recieving Center via GSM or GPRS. Can be used in TSP-5314 and TSP-5208 Alarm Panels.
TXM-5272 The module is mounted to 4 screwing places in the space on the right side of the alarm
panel and the connection to the alarm panel board is made with the flat ribbon cable as in below
figure.
Ps: GSM / GPRS Module is fixed on TSP-5324 Alarm panel. Only TXM-5270 PSTN Module can be
added to this panel.

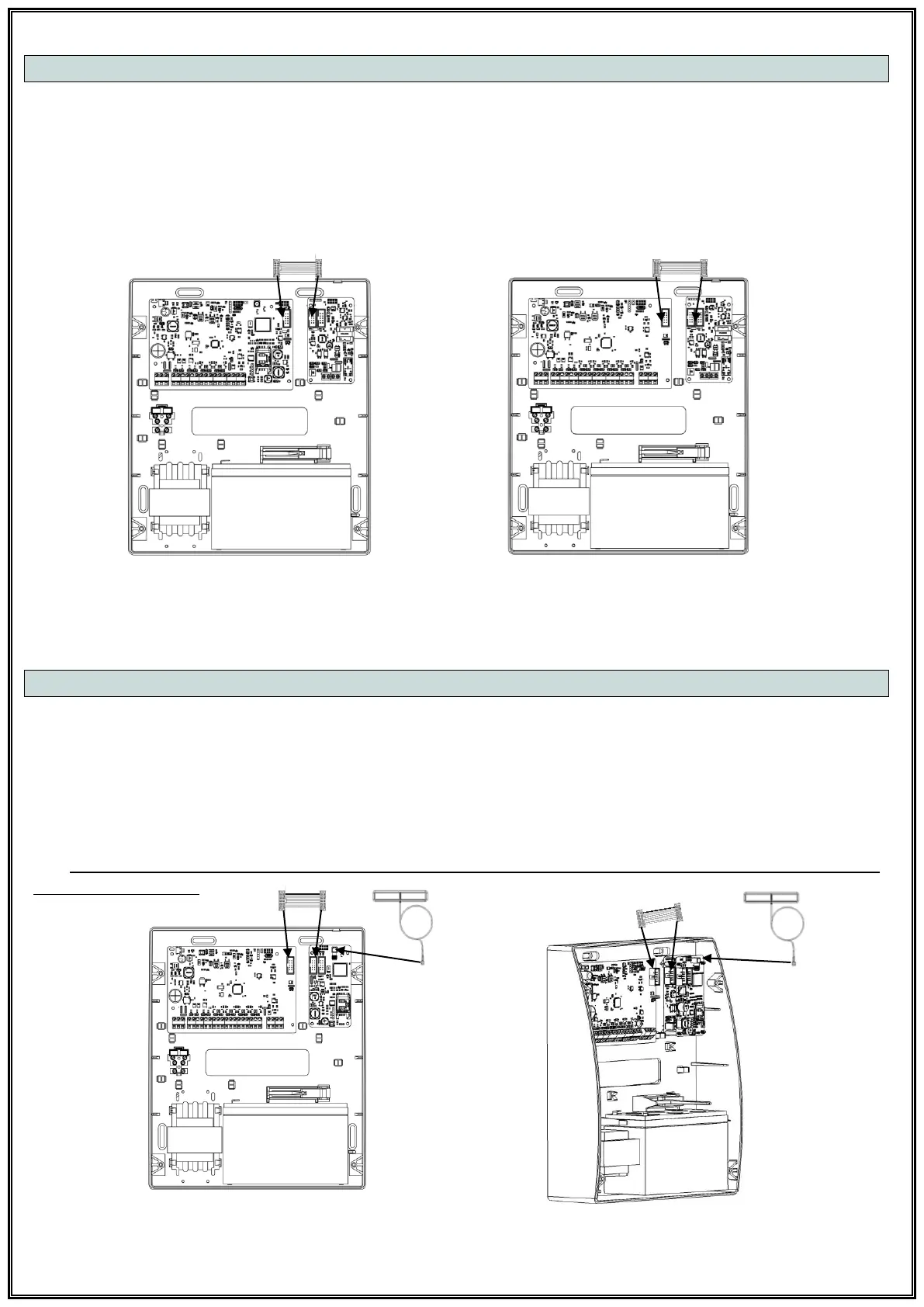

Figure 15: TSP-5324 and TSP-5208 Control Panel TXM-5270 Connection
Figure 16: TSP-5314 and TSP-5208 Control Panel TXM-5272 Connection
GSM
Antenna
GSM
Antenna
