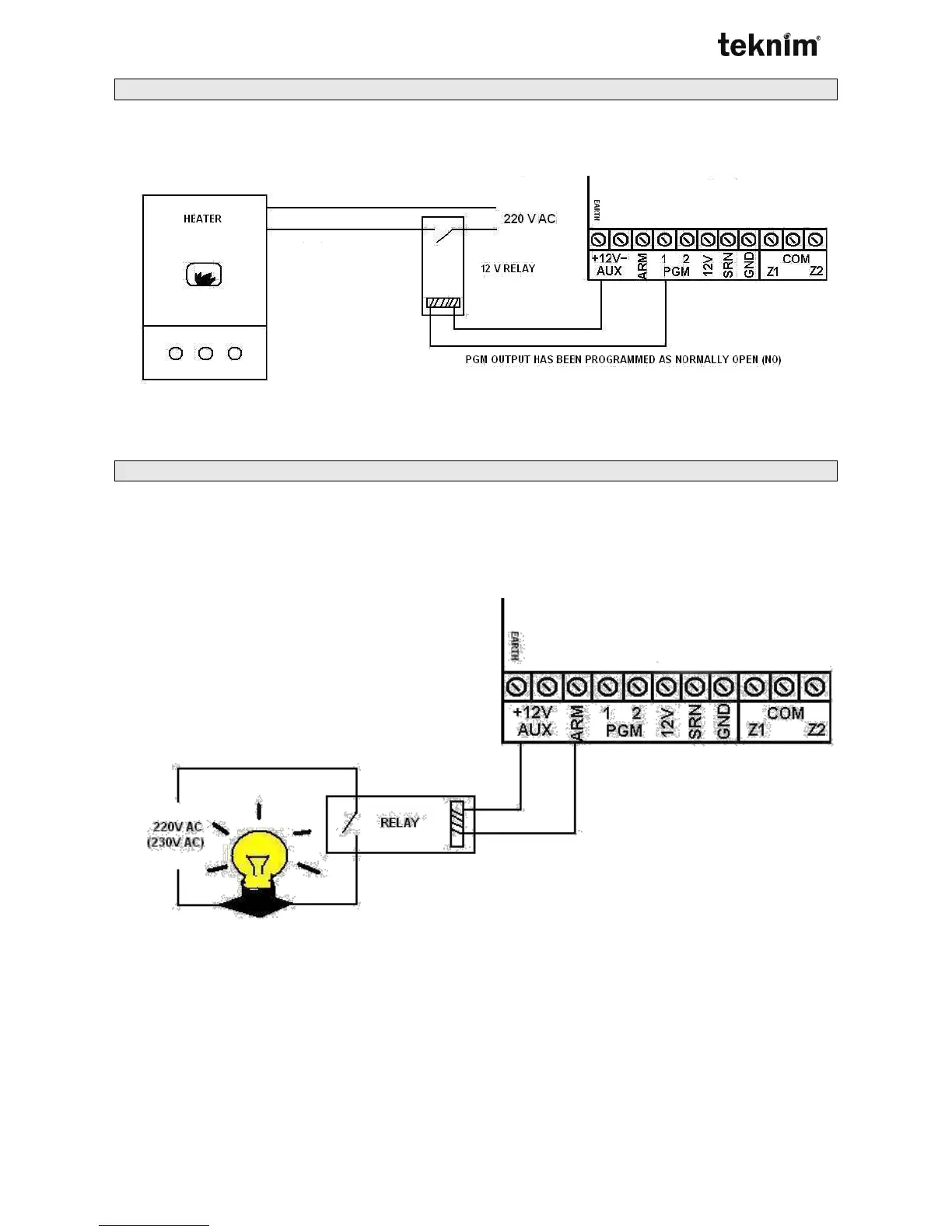

3.6. CONNECTION OF PROGRAMMABLE OUTPUTS
VAP404 has 2 PGM outputs. These outputs can be used for kind of purposes. Detailed information is in
Programming Section.
Connect devices that don’t exceed current limit of PGM outputs.
Note: You can get 4 PGM outputs by using TRM904 relay module, or can get 8 PGM outputs by using 2
TRM904 module together. Look at TRM904 guide for detailed description.
3.7. CONNECTION OF PANEL ARMED OUTPUT(ARM)
ARM output is normally output(NO contact). When panel is armed, ARM output is closed. These outputs can
be used for kind of purposes. Detailed information is in Programming Section.
Connect devices that don’t exceed current limit of ARM output.
