Tektronix 2230

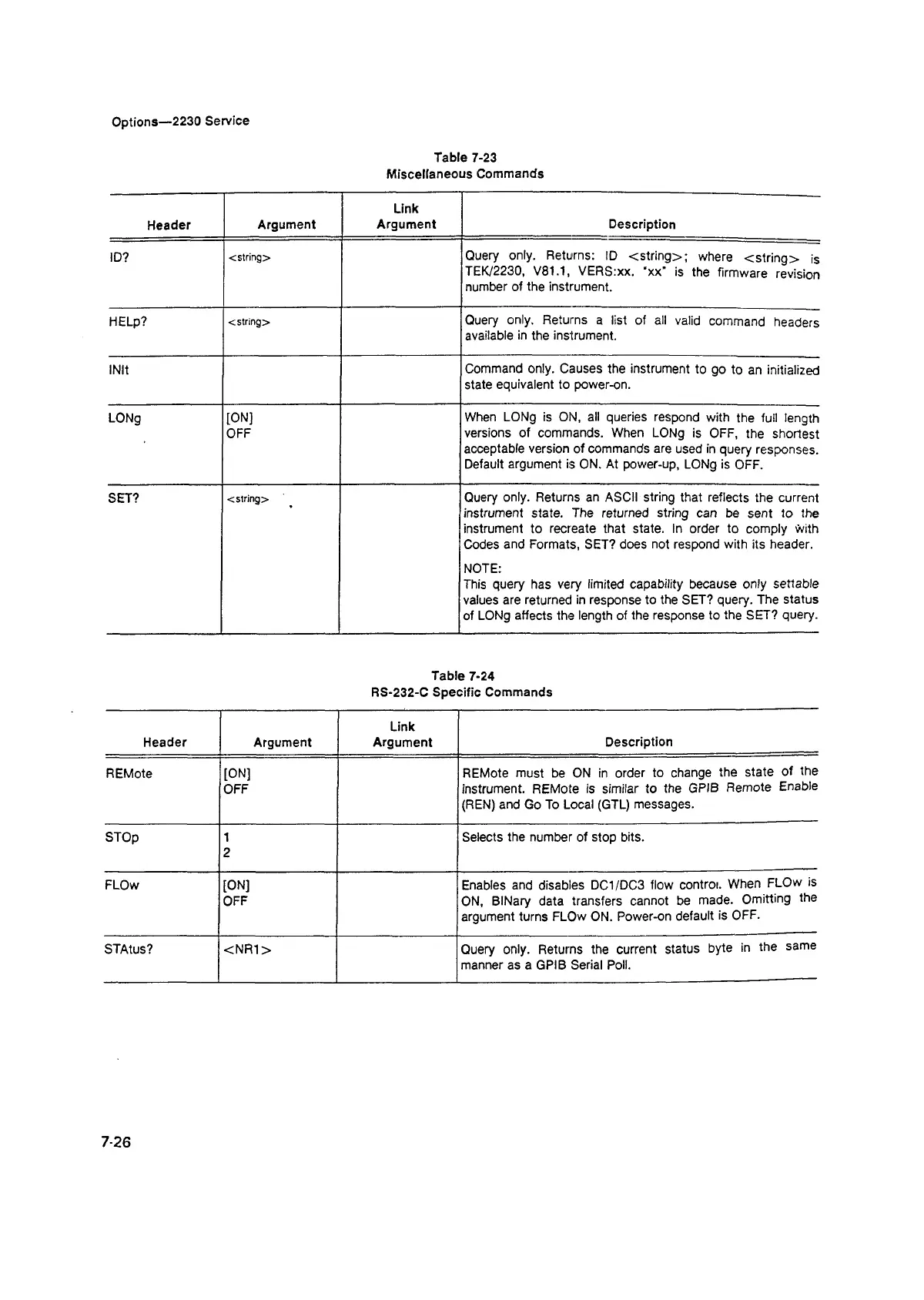

Options—2230 Service
Table 7-23
Miscellaneous Commands
Header
Argument
Link
Argument
Description
ID?
< s trin g > Query only. Returns: ID <string>; where <string> is
TEK/2230, V81.1, VERSrxx. “xx" is the firmware revision
number of the instrument.
HELp?
< s trin g > Query only. Returns a list of all valid command headers
available in the instrument.
INIt
Command only. Causes the instrument to go to an initialized
state equivalent to power-on.
LONg
[ON]
OFF
When LONg is ON, all queries respond with the full length
versions of commands. When LONg is OFF, the shortest
acceptable version of commands are used in query responses.
Default argument is ON. At power-up, LONg is OFF.
SET?
< string >
Query only. Returns an ASCII string that reflects the current
instrument state. The returned string can be sent to the
instrument to recreate that state. In order to comply with
Codes and Formats, SET? does not respond with its header.
NOTE:
This query has very limited capability because only settable
values are returned in response to the SET? query. The status
of LONg affects the length of the response to the SET? query.
Table 7-24
RS-232-C Specific Commands
Header Argument
Link
Argument
Description
REMote
[ON]
OFF
REMote must be ON in order to change the state of the
instrument. REMote is similar to the GRIB Remote Enable
(REN) and Go To Local (GTL) messages.
STOp
1
2
Selects the number of stop bits.
FLOw [ON]
OFF
Enables and disables DC1/DC3 flow control. When FLOw is
ON, BINary data transfers cannot be made. Omitting the
argument turns FLOw ON. Power-on default is OFF.
STAtus? <NR1 >
Query only. Returns the current status byte in the same
manner as a GPIB Serial Poll.
7-26
