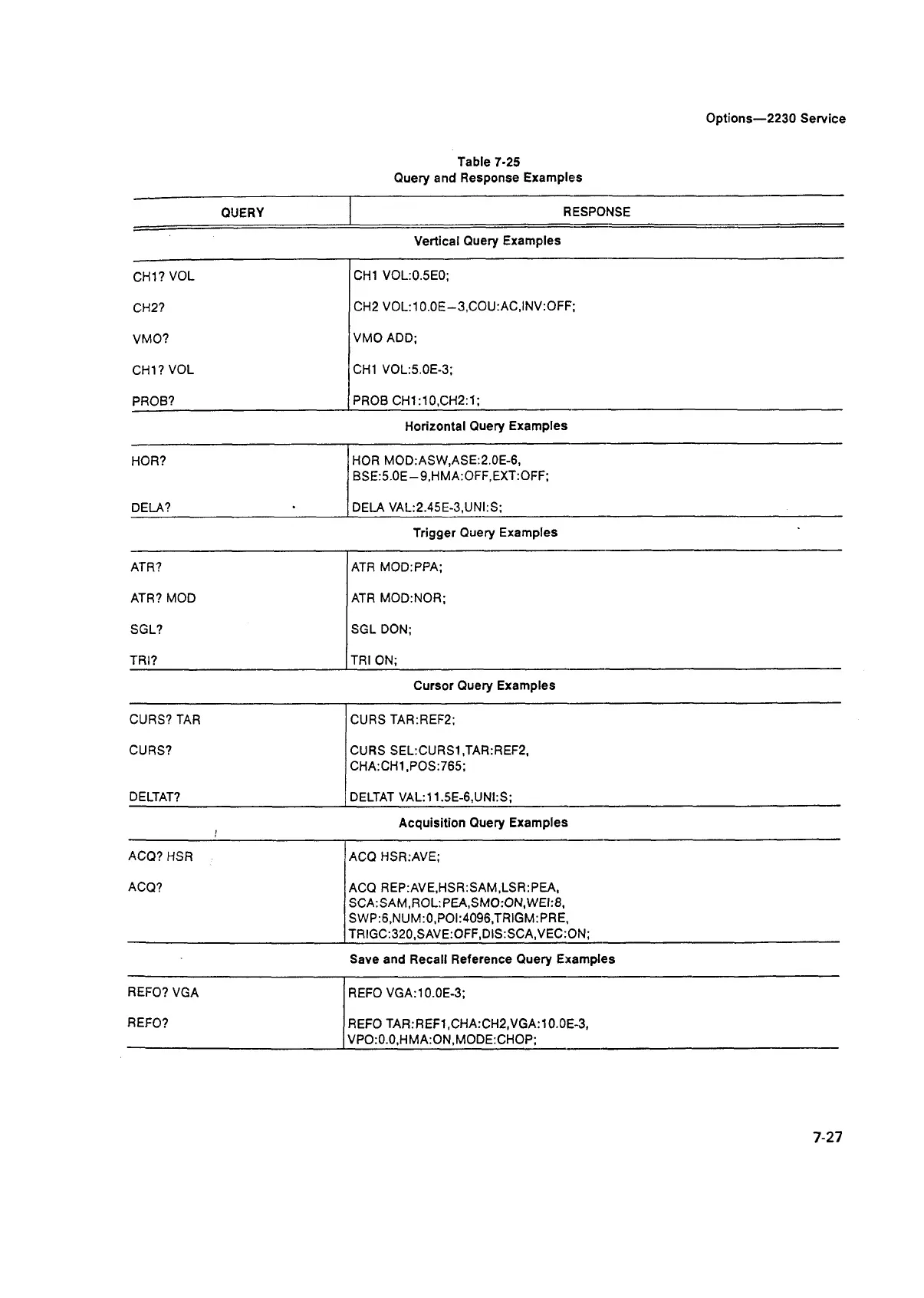

Table 7-25
Query and Response Examples
QUERY
RESPONSE
Vertical Query Examples
CHI? VOL
CHI VOL0.5E0;
CH2?
CH2 VOL:10.0E—3,COU:AC,INV:OFF;
VMO?
VMO ADD;
CHI? VOL
CHI VOL5.0E-3;
PROB?
PROB CH1:10,CH2:1;
Horizontal Query Examples
HOR?
HOR MOD:ASW,ASE:2.0E-6,
BSE:5.0E—9,HMA:OFF,EXT:OFF;
DELA?
DELA VAL:2.45E-3,UNI:S;
Trigger Query Examples
ATR?
ATR MOD:PPA;
ATR? MOD
ATR MOD:NOR;
SQL?
SGL DON;
TRI? TRI ON;
Cursor Query Examples
CURS? TAR CURS TAR:REF2;
CURS? CURS SEL:CURS1 ,TAR:REF2,
CHA:CH1,POS:765;
DELTAT? DELTAT VAL:11.5E-6,UNI:S;
Acquisition Query Examples
ACQ? HSR
ACQ HSR.AVE;
ACQ?
ACQ REP:AVE,HSR:SAM,LSR:PEA,
SCA:SAM,ROL:PEA,SMO:ON,WEI:8,
SWP:6,NUM:0,POI:4096,TRIGM:PRE,
TRIGC:320,SAVE:OFF,DIS:SCA,VEC:ON;
Save and Recall Reference Query Examples
REFO?VGA
REFO VGA:10.0E-3;
REFO?
REFO TAR;REF1,CHA;CH2,VGA:10.0E-3I
VPO:0.0,HMA:ON,MODE:CHOP;
