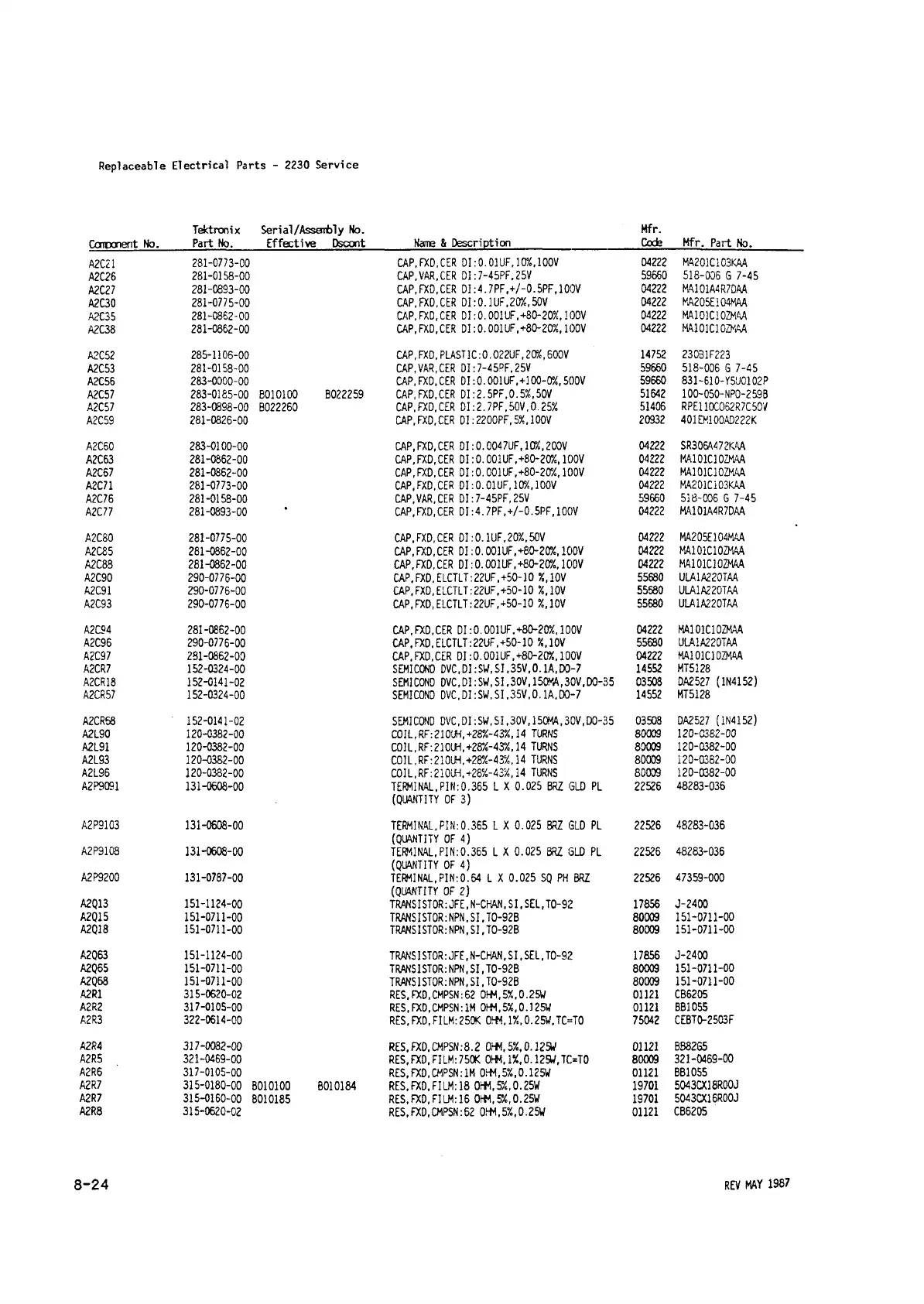

Replaceable Electrical Parts - 2230 Service
Tektronix Serial/Assarbly No. Mfr.
Component No.
Part No. E ffe c tiv e Dscont
Nama & D escription
Cock
M fr. Part No.
A2C21
281-0773-00
CAP,FXD,CER D I:0 .01UF.10%,100V 04222
MA201C103KAA
A2C26
281-0158-00
CAP.VAR.CER DI:7-45PF,25V
59660
518-006 G 7-45
A2C27 281-0893-00
CAP,FXD,CER DI:4.7PF,+/-0.5PF,100V
04222
H4101A4R7DAA
A2C30
281-0775-00
CAP,FXD,CER D I:0 .1 UF,20%,50V
04222
MA205E104MAA
A2C35
281-0862-00
CAP,FXD,CER D I:0.001UF,+80-20%,100V 04222
MA101C10ZKAA
A2C38 281-0862-00
CAP,FXD,CER D1:0.001UF,+80-20%, 100V
04222
MA101C10ZKAA
A2C52 285-1106-00
CAP,FXD, PLASTIC:0 .022UF,20%,600V
14752
23031F223
A2C53
281-0158-00
CAP,VAR,CER D I:7-45DF,25V 59660
518-006 G 7-45
A2C56 283-0000-00
CAP,FXD,CER DI:0.001UF,+100-0%,500V
59660
831-610-Y5U0102P
A2C57 283-0185-00 B010100
B022259
CAP,FXD,CER D I:2 .5PF,0.5%,50V
51642
100-050-NPQ-259B
A2C57
283-0898-00 B022260
CAP,FXD,CER DI:2.7PF,50V,0.25%
51406
RPE110C062R7C50V
A2C59
281-0826-00
CAP,FXD,CER D I:2200PF,5%.100V
20932
401EK100AD222K
A2C60 283-0100-00
CAP,FXD,CER D I:0 .0047UF,10%,200V
04222
SR306A472ILAA
A2C63 281-0862-00
CAP,FXD,CER DI:0.001UF,+80-20%,100V
04222
MA101C10ZMAA
A2C67
281-0862-00
CAP,FXD,CER DI:0.001UF,+80-20%,100V
04222
MA10IC10ZMAA
A2C71 281-0773-00
CAP,FXD,CER D I:0 .01UF,10%,100V
04222
MA201C103KAA
A2C76
281-0158-00
CAP.VAR.CER DI:7-45PF,25V
59660 518-006 G 7-45
A2C77
281-0893-00
CAP,FXD,CER DI:4.7PF,+/-0.5PF,100V
04222
MA101A4R7DAA
A2C80
281-0775-00
CAP,FXD,CER D I:0 .1UF,20%,50V
04222
MA205E104MAA
A2C85
281-0862-00
CAP,FXD,CER DI:0.001UF,+80-20%,100V
04222
MA101C10ZMAA
A2CS3
281-0862-00
CAP,FXD,CER D I:0 .001UF,+80-20%,100V
04222 MA101C10ZMAA
A2C90
290-0776-00
CAP,FXD,ELCTLT:22UF,+50-10 %,10V 55680 ULA1A220TAA
A2C91
290-0776-00
CAP,FXD,ELCTLT:22UF,+50-10 %,10V 55580 ULA1A220TAA
A2C93
290-0776-00
CAP,FXD,ELCTLT:22UF,+50-10 %,10V 55680 ULA1A220TAA
A2C94
281-0862-00
CAP,FXD,CER DI:0.001UF,+80-20%,100V
04222 MA101C10ZMA4
A2C96
290-0776-00
CAP, FXD,ELCTLT:22UF,+50-10 %,10V 55680 ULA1A220TAA
A2C97
281-0862-00
CAP,FXD,CER DI:0.001UF,+80-20%,100V 04222 MA101C10ZMAA
A2CR7
152-0324-00
SEMICOND DVC,DI:SW,SI,35V,0.1A,D0-7
14552 MT5128
A2CR18 152-0141-02
SEMICOND DVC, D I:SW,5I .30V,150K4, 30V,DO-35 03508 DA2527 (1N4152)
A2CR57
152-0324-00
SEMICOND DVC.DI:SW,51,35V,0.1A.D0-7
14552 MT5128
A2CR68
152-0141-02
SEMICOND DVC,D I:SW,SI, 30V,150MA,30V,DO-35
03508
DA2527 (1N4152)
A2L90 120-0382-00
C0IL,RF:210UH,+28%-43%,14 TURNS
80009
120-0382-00
A2L91
120-0382-00
C0IL,RF:210UH,+28%-43%,14 TURNS
80009
120-0382-00
A2L93
120-0382-00
C0IL,RF:210LH,+28%-43%,14 TURNS
80009
120-0382-00
A2L96
120-0382-00
COIL.RF:210ifi,+28%-43%, 14 TURNS 80009
120-0382-00
A2P9091
131-0608-00 TERMINAL,PIN:0.365 L X 0.025 BRZ OLD PL
(QUANTITY OF 3)
22526
48283-036
A2P9103
131-0608-00 TERMINAL,PIN:0.365 L X 0.025 BRZ 6LD PL
(QUANTITY OF 4)
22526 48283-036
A2P9108
131-0608-00
TERMINAL,PIN:0.365 L X 0.025 BRZ SLD PL
(QUANTITY OF 4)
22526 48283-036
A2P9200
131-0787-00
TERMINAL,PIN:0.64 L X 0.025 SQ PH BRZ
(QUANTITY OF 2)
22526 47359-000
A2Q13
151-1124-00 TRANSISTOR:JFE,N-CHAN,S I. SEL,TO-92
17856 J-2400
A2Q15
151-0711-00
TRANSISTOR:NPN,SI,TO-92B 80009
151-0711-00
A2Q18
151-0711-00
TRANSIST0R:NPN,SI,T0-92B 80009
151-0711-00
A2Q63
151-1124-00 TRAN'S ISTOR: JFE, N-CHAN, S I, SEL, TO-92
17856 J-2400
A2Q65
151-0711-00 TRANS1ST0R:NPN,SI,T0-92B 80009
151-0711-00
A2Q58
151-0711-00 TRANSISTOR:NPN,SI.T0-92B 80009
151-0711-00
A2R1
315-0620-02
RES,FXD,CMPSN:62 Offi,5%,0.25W 01121
CB6205
A2R2
317-0105-00 RES,FX0,CMPSN:1M OfW,5%,O.I25W 01121
BB1055
A2R3
322-0614-00 RES,FXD,FILM:250K OFW,1%,0.25W,TC==TO
75042 CEBT0-2503F
A2R4
317-0082-00
RES,FXD,CMPSN:8.2 0,HM,5%,0.125W
01121 BB82G5
A2R5
321-0469-00
RES,FXD,FILM:750K 0(-H, 1%,0.125W,TC=TO
80009
321-0469-00
A2R6
317-0105-00 RES,FXD,CMPSN:1M 0iW,5%,0.125W 01121
BB1055
A2R7
315-0180-00 6010100
8010184
RES,FXD,FILM:18 OHM,5%,0.25W 19701
5043CX18R00J
A2R7
315-0160-00 8010185 RES,FXD,FILM:16 OFM,5%,0.25W
19701
5043CX16R00J
A2R8
315-0620-02
RES,FXD,CMPSN:62 0,44,5%,0.25V 01121
CB6205
8-24
REV MAY 1987
