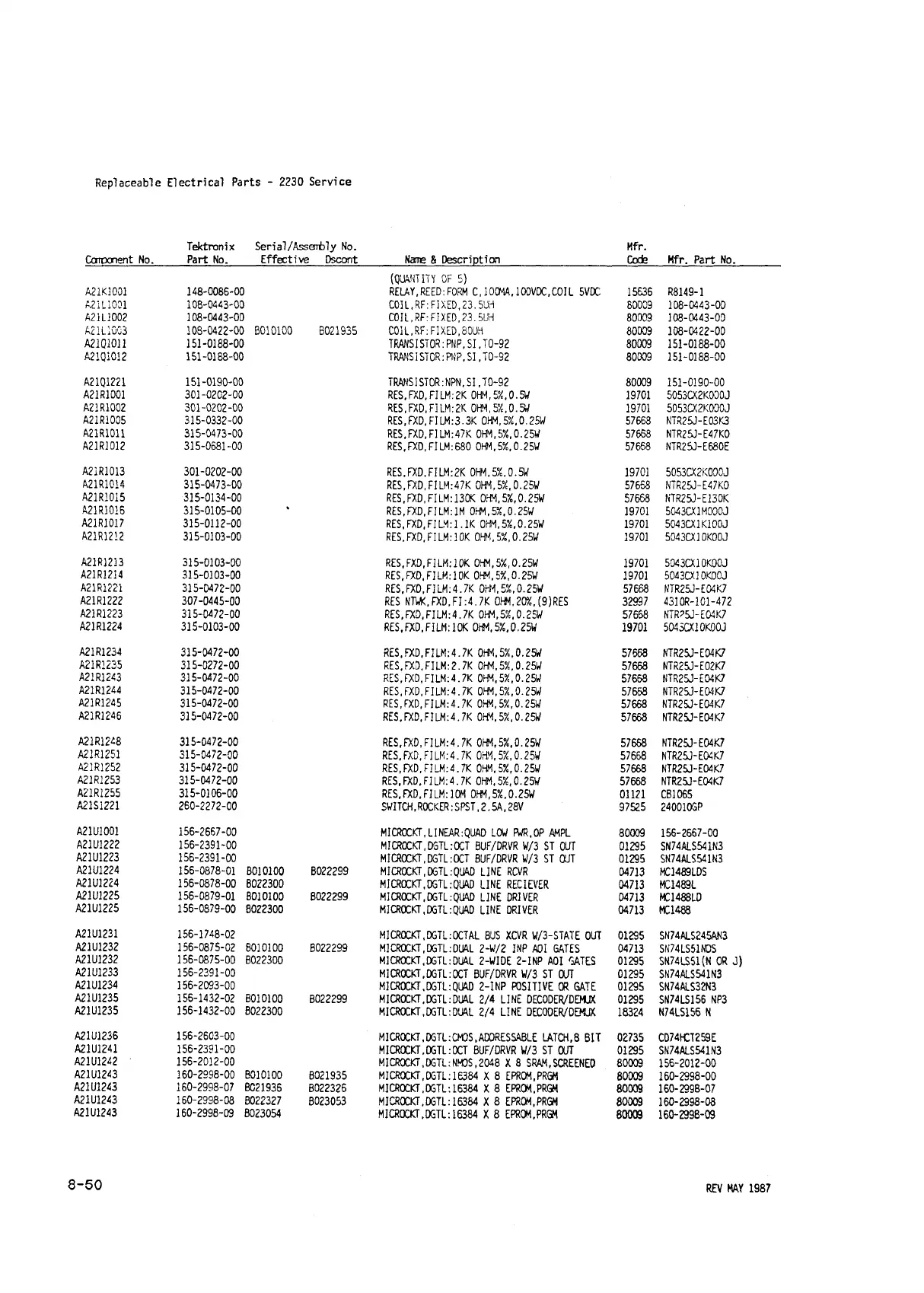

Replaceable Electrical Parts - 2230 Service
Tektronix Serial/Assembly No. Mfr.
Caroonent No. Part No. E ffe ctiv e Dscont Name & D escription
Code
M fr. P art No.
A21K1001 148-0086-00
(QUANTITY OF 5)
RELAY,REED:FORM C,100MA,100VDC,COIL 5VDC 15636 R8149-1
A21L1001
108-0443-00
COIL, RF: FI XED, 23.5L)'ri 80009
108-0443-00
A21L1002
108-0443-00 COIL,RF:FIXED, 23 .5UH
80009 108-0443-00
A21L1003
108-0422-00 B010100 B021S35 COIL, RF:FIXED,80UH 80009
108-0422-00
A21Q1011
151-0188-00 TRANS1ST0R:PNP,$1,10-92
80009 151-0188-00
A21QI012 151-0188-00
TRANSISTOR:PKP.SI,10-92
80009 151-0188-00
A21Q1221 151-0190-00
TRANSlSTOR:NPN,Sl,TO-92 80009 151-0190-00
A21R1001 301-0202-00 RES,FXD,FILM:2K OHM,5%,0.5W
19701 5053CX2K030J
A21R1002 301-0202-00
RES,FXD,F1LM:2K OHM,5%,0.5W 19701
5053CX2K000J
A21R1005 315-0332-00
RES,FXD,FILM:3.3K OHM,5%.0.25W 57668
NTR25J-E03K3
A21R1011
315-0473-00 RES,FXD,F1LM:47K 0HM,5%,0.25W 57658
NTR25J-E47K0
A21R1012
315-0681-00
RES,FXD,FILM:680 0HM,5%,0.25W 57668
NTR25J-E680E
A2IR1013
301-0202-00
RES, FXD,FILM:2K OHM,5%,0.5W 19701
5053CX2K00DJ
A21R1014
315-0473-00 RES,FXD,FILM:47K 0HM,5%,0.25W
57658 NTR25J-E47K0
A21R1015
315-0134-00
RES,FXD, FILM: 13CX 0HM,5%,0.25W
57668
NTR25J-E130K
A21R101S
315-0105-00
RES,FXD,FJLM:1M OHM,5%,0.25W 19701
5043CX1M000J
A21R1017
315-0112-00
RES,FXD,FILM:1 .IK 0HM,5%,0.25W 19701
5043CX1K100J
A21R1212
315-0103-00 RES,FXD,FILM:10< 0HM,5%,0.25W 19701 5D43CX10K00J
A21R1213
315-0103-00
RES,FXD,FILM:10K 0HM,5%,0.25W 19701 5043CX1OKOOJ
A21R1214
315-0103-00
RES,FXD,FILM:10K 0HM,5%,0.25W 19701 5O43CX1OKO0J
A21R1221
315-0472-00 RES.FXD,FILM:4 .7K 0HM.5%,0.25W
57668 NTR25J-E04K7
A21R1222
307-0445-00
RES NTWK,FXD,FI:4.7K OHM,20%,(9)RES 32997
4310R-101-472
A21R1223 315-0472-00
RES,FXD,FILM:4.7K 0HM,5S£,0.25W 57668
NTRF5J-E04K7
A21R1224
315-0103-00
RES,FXD,FILM:10K OH4,5%,0.25W
19701
5O43CX1OKO0J
A21R1234
315-0472-00
RES,FXD,FILM;4 .7K 0HM,5%,0.25W
57668
NTR25J-E04K7
A21R1235 315-0272-00
RES, FXD,FILM:2 .7K CHM,5%,0.25W 57668
NTR25J-E02K7
A21R1243 315-0472-00
RES,FXD,FILM:4.7K 0HM,5%,0.25W
57658
NTR25J-E04K7
A21R1244
315-0472-00
RES,FXD,FILM:4 .7K 0HM,5%,0.25W
57658
NTR25J-E04K7
A21R1245
315-0472-00
RES,FXD,FILM:4 .7K OHM,5%,0.25W 57668 NTR25J-E04K7
A21R1246
315-0472-00
RES,FXD.FILM:4 .7K 0HM,5%,0.25W 57668 NTR25J-E04K7
A21R1248
315-0472-00
RES,FXD,FILM:4 .7K OHM,5%,0.25W
57658 NTR25J-E04K7
A21R1251
315-0472-00
RES. FXD, FI LM:4 .7K 0,HM,5%,0.25W
57668
NTR25J-E04K7
A21R1252
315-0472-00 RES,FXD,FILM:4 .7K 0HM,5%,0.25W
57668 NTR25J-E04K7
A21R1253
315-0472-00
RES,FXD,FILM:4.7K OHM,5%,0.25W
57668
NTR25J-E04K7
A21R1255
315-0106-00 RES,FXD,FILM:10M 0M,5%,0.25W
01121 CB1065
A21S1221
260-2272-00
SWITCH,ROCKER: SPST, 2 .5A, 28V
97525 240010GP
A21U1001
156-2667-00
MICROCKT,LI NEAR:QUAD LOW PWR.OP AMPL
80009 155-2667-00
A21U1222
156-2391-00
MICROCKT,DGTL:OCT BUF/DRVR W/3 ST OUT
01295
SN74ALS541N3
A21U1223
156-2391-00
MICROCKT,DGTL:OCT BUF/DRVR W/3 ST OUT 01295
SN74ALS541N3
A21U1224
156-0878-01 B010100 B022299
MICRKKT,DGTL:QUAD LINE RCVR
04713
MC1489LDS
A21U1224
156-0878-00 B022300
MICROCKT, DGTL .-QUAD LINE RECIEVER
04713
MC1489L
A21U1225
156-0879-01 B010100 B022299 M1CR0CKT,DGTL:QUAD LINE DRIVER
04713
MC1488LD
A21U1225
156-0879-00 B022300
MICROCKT,DGTL:QUAD LINE DRIVER
04713 MC1488
A21U1231
156-1748-02
MICROCKT,DGTL:OCTAL BUS XCVR W/3-STATE OUT
01295 SN74ALS245AN3
A21U1232
156-0875-02 B010100
B022299
MICROCKT, DGTL .-DUAL 2-W/2 INP ADI GATES
04713 SN74LS51NDS
A21U1232
156-0875-00 B022300
MICROCKT,DGTL:DUAL 2-WIDE 2 -INP AOI GATES 01295
SN74LS51(N OR J)
A21U1233
156-2391-00
MICROCKT,DGTL:OCT BUF/DRVR W/3 ST OUT
01295 SN74ALS541N3
A21U1234
156-2093-00
MICROCKT,DGTL:QUAD 2-INP POSITIVE OR GATE 01295 SN74ALS32N3
A21U1235
155-1432-02 B010100
B022299
MICROCKT,DGTL:DUAL 2/4 LINE DECODER/DEMUX
01295 SN74LS156 NP3
A21U1235
156-1432-00 B022300
MICROCKT,DGTL:DUAL 2/4 LINE DECODER/DEMJX 18324 N74LS156 N
A21U1236
156-2603-00
M1CRXKT,DGTL:CM0S,ADDRESSABLE LATCH,8 BIT
02735 CD74HCT259E
A21U1241
156-2391-00
MICROCKT.DGTL:OCT BUF/DRVR W/3 ST OUT
01295 SN74ALS541N3
A21U1242
156-2012-00
MICROCKT,DGTL:N.MOS,2048 X 8 SRAM.SCREENEO 80009
156-2012-00
A21U1243
160-2998-00 B010100
B021935
MICROCKT, DGTL:16384 X 8 EPROM,PRGM
80009 160-2998-00
A21U1243
160-2998-07 B021936
B022326
MICROCKT,DGTL:16384 X 8 EPROM,PRGM
80009 160-2998-07
A21U1243
160-2998-08 B022327
B023053 MICROCKT,DGTL:16384 X 8 EPROM,PRGM
80009 160-2998-08
A21U1243
160-2998-09 B023054
MICROCKT,DGTL:16384 X 8 EPROM,PRGM
80009
160-2998-09
8-5 0
REV HAY 1987
