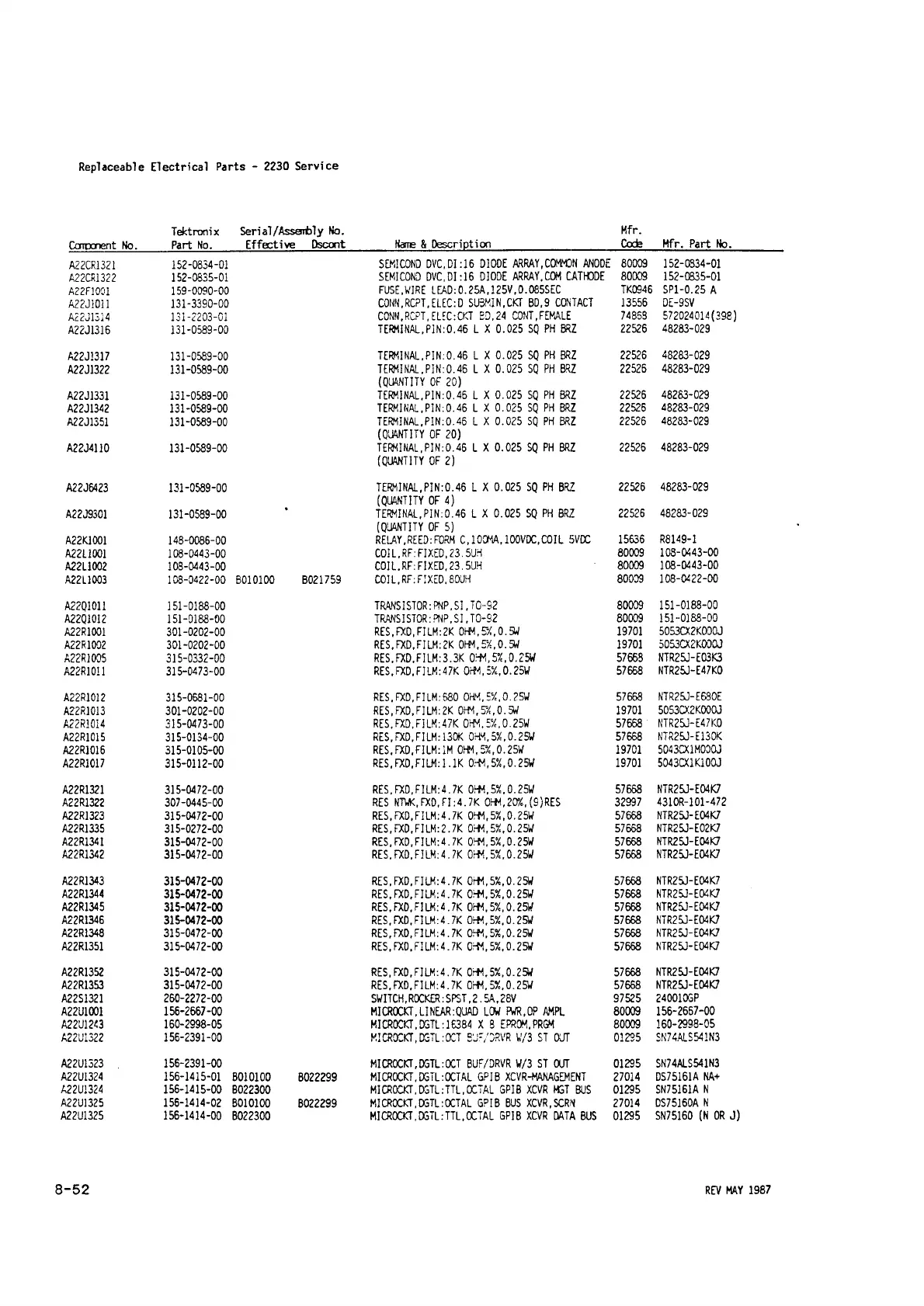

Replaceable Electrical Parts - 2230 Service
Tektronix Serial/Assaitily No. Mfr.
Caiconent No.
Part No. E ffe c tiv e
Dscont
Name & D escrip tion Code
M fr. P art No.
A22CR1321
152-0834-01
SEMIC0ND DVC, 01:16 DIODE ARRAY,COMMON ANODE
80009
152-0834-01
A22CR1322
152-0835-01
SEMICOND DVC.DI:16 DIODE ARRAY.COM CATHODE
80009
152-0835-01
A22F1001
159-0090-00
FUSE,WIRE LEAD:0 .25A,125V.0.085SEC
TK0946 SP1-0.25 A
A22J1011
131-3390-00
CONN,RCPT,ELEC:D SU3MIN.CKT BO,9 CONTACT
13556 DE-9SV
A22J1314 131-2203-01
CONN.RCPT,ELEC:CKT ED,24 CONT,FEMALE
74853
572024014(398)
A22J1315
131-0589-00
TERMINAL,PIN:0.46 L X 0.025 SQ PH BRZ
22526 48283-029
A22J1317
131-0589-00
TERMINAL,PIN.-0.46 L X 0.025 SQ PH BRZ
22526
48283-029
A22J1322 131-0589-00
TERMINAL,PIN:0.46 L X 0.025 SQ PH BRZ
(QUANTITY OF 20)
22526
48283-029
A22J1331 131-0589-00
TERMINAL,PIN:0.46 L X 0.025 SQ PH BRZ 22526 48283-029
A22J1342
131-0589-00
TERMINAL, PIN:0.46 L X 0.025 SQ PH BRZ 22526 48283-029
A22J1351 131-0589-00
TERMINAL.PIN:0.46 L X 0.025 SQ PH BRZ
(QUANTITY OF 20)
22526 48283-029
A22J4110 131-0589-00
TERMINAL,PIN:0.46 L X 0.025 SQ PH BRZ
(QUANTITY OF 2)
22526 48283-029
A22J6423 131-0589-00
TERMINAL,PIN:0.46 L X 0.025 SQ PH BRZ
(QUANTITY OF 4)
22526
48283-029
A22J9301 131-0589-00
TERMINAL,PIN:0.46 L X 0.025 SQ PH BRZ
(QUANTITY OF 5)
22526
48283-029
A22K1001 148-0086-00
RELAY,REED:FORM C,100MA,100VDC.C0IL 5VDC
15636 R8149-1
A22L1001 108-0443-00
COIL.RF:FIXED,23.5UH
80X9
108-0443-00
A22L1002 108-0443-00
COIL.RF:FIXED,2 3.5UH
80009
108-0443-00
A22L1003 108-0422-00 B010100 B021759
COIL,RF; FIXED.80UH
80009 108-0422-00
A22Q1011
151-0188-00
TRANSISTOR:PNP,SI .T0-S2
80009 151-0188-00
A22Q1012 151-0188-00
TRANSISTOR:PNP,$I,TO-B2
80009
151-0188-00
A22R1001
301-0202-00
RES.FXD,FILM:2K 0HM,S%,0.5W
19701 5053CX2KX0J
A22R1002 301-0202-00
RES,FXD,FILM:2K 0PW,5%,0.5W
19701 5053CX2K0O0J
A22R1005 315-0332-00
RES,FXD,FILM:3.3K 0:-M,5%,0.25W 57668
NTR25J-E03K3
A22R1011 315-0473-00
RES.FXD,FILM:47K 0HM,5%,0.25W
57668
NTR25J-E47K0
A22R1012 315-0681-00
RES, FXD, FILM:680 0HM,5%,0.25W 57668
NTR25J-E690E
A22R1013 301-0202-00
RES.FXD,FILM:2K OHM,5%,0.»7 19701
5053CX2KXOJ
A22R1014
315-0473-00
RES,FXD,FILM:47K OHM.5%.0.25W
57668 NTR25J-E47K0
A22R1015
315-0134-00
RES,FXD,FILM:130K OHM,5%,0.25W 57668
NTR25J-E130K
A22R1016
315-0105-00
RES.FXD,FILM:1M 0HM,5%,0.25W 19701
5043CX1M000J
A22R1017 315-0112-00
RES,FXD.FILM.l. IK 0rM,5%,0.25W 19701
5043CX1K100J
A22R1321 315-0472-00
RES. FXD,FILM:4 .7K 0*i,5%,0.25W 57668
NTR25J-E04K7
A22R1322 307-0445-00
RES NTWK.FXD.FI:4.7K OHM,20%,(9)RES 32997 4310R-101-472
A22R1323
315-0472-00
RES,FXD,FILM:4.7K 0EM,5%,0.25W 57668
NTR25J-E04K7
A22R1335
315-0272-00
RES,FXD,FILM:2.7K 0rM,5%,0.25W
57668
NTR25J-E02K7
A22R1341
315-0472-00
RES,FXD,FILM:4.7K 0(-M, 5%,0.25W
57668
NTR25J-E04K7
A22R1342 315-0472-00
RES,FXD,FILM:4 .7K 0rM,5%,0.25W 57658
NTR25J-E04K7
A22R1343
315-0472-00
RES,FXD,FILM:4.7< OrM,5%,0.25W 57668
NTR25J-E04K7
A22R1344
315-0472-00
RES.FXD,FILM:4,7K 0rM,5%,0.25W 57668
NTR25J-E04IA7
A22R1345
315-0472-00
RES, FXD, FI LM: 4 .7K OrM,5%,0.25W 57668
NTR25J-E04K7
A22R1346
315-0472-00
RES, FXD, FI LM: 4 .7K OrW,5%,0.25W 57668
NTR25J-E04K7
A22R1348
315-0472-00
RES,FXD,FILM:4.7K 0EM,5%,0.25W 57668
NTR25J-E04K7
A22R1351
315-0472-00
RES,FX0,FILM:4.7K OrM,5%,0.25W
57668
NTR25J-E04K7
A22R1352
315-0472-00 RES,FXO,FILM:4 .7K OrM.5%,0.25W 57668
NTR25J-E04K7
A22R1353 315-0472-00
RES,FXD,FILM:4 .7K OrM,5%,0.25W
57668
NTR25J-E04K7
A22S1321 260-2272-00
SWITCH, RXKER: SPST, 2 .5A, 28V 97 525
24001XP
A22U1001
156-2667-00
MICROCKT,LINEAR:QUAD LOW PWR.OP AMPL 80009
156-2667-00
A22U1243 160-2998-05
MICRXKT.D3TL: 16384 X 8 EPROM,PRGM 80009
160-2998-05
A22U1322 156-2391-00
MICRXtCr.DGTL.-OCT BJF/DRVR W/3 ST OUT 01295
SN74.ALS54IN3
A22U1323 156-2391-00 MICRXCT,DSTL:XT BUF/DRVR W/3 ST OUT 01295
SN74ALS541N3
A22U1324
156-1415-01 8010100
B022299
MICRXKT,X-TL:XTAL 6P1B XCVR-MANAGEMENT
27014
DS75161A NA+
A22U1324
156-1415-00 B022300 M1CRCOCT,D3TL:TTL,XTAL GPIB XCVR M3T BUS 01295
SN75161A N
A22U1325
156-1414-02 B010100
B022299
MICRXKT,DGTL:XTAL 5PIB BUS XCVR.SCRN
27014 DS75160A N
A22U1325
156-1414-00 B022300 MICRXICT.XTL:TTL,XTAL GPIB XCVR DATA BUS 01295
SN75160 (N OR J)
8-52
REV MAY 1987
