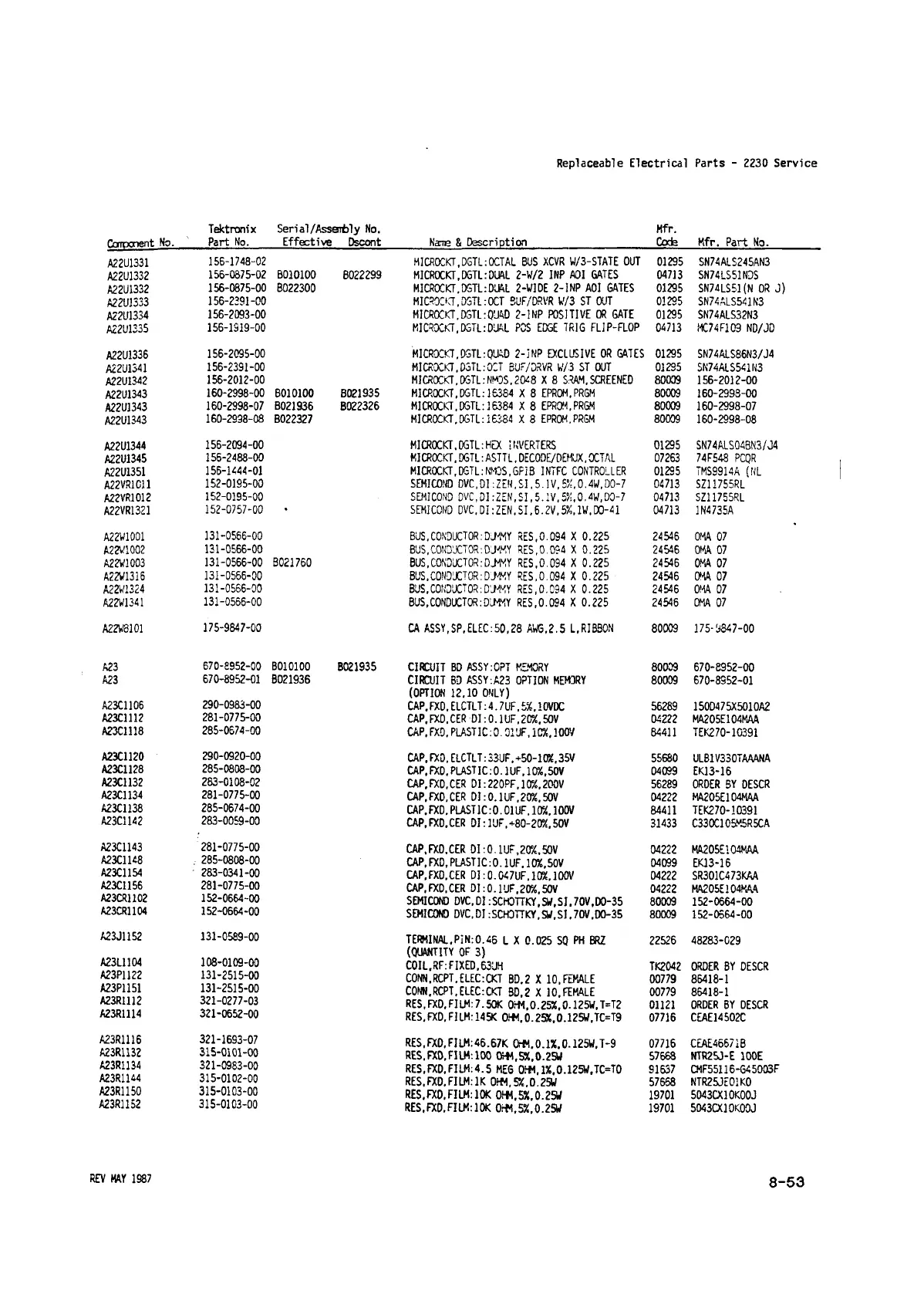

Replaceable Electrical Parts - 2230 Service
Tektronix Serial/Assaifcly No. Mfr.
Caroonent No.
Part No.
E ffe ctiv e Dscont Karo & D escriptio n Cafe
M fr. P art No.
A22U1331
156-1748-02 M1CR0CKT.DGTL:OCTAL BUS XCVR W/3-STATE OUT
01295
SN74ALS24SAN3
A22U1332
156-0875-02 B010100
B022299
MICRXKT, DoTL: DUAL 2-W/2 INP A0I GATES
04713
SN74LS51NDS
A22U1332
156-0875-00
B022300 MICRXKT.XTL:DUAL 2-WIDE 2 -INP A0I GATES 01295 SN74LS51(N OR J)
A22U1333
156-2391-00 MICR9CKT,D5TL:XT 8UF/DRVR W/3 ST OUT
01295
SN74ALS541N3
A22U1334
156-2093-00 MICRXKT,D3TL:QUAD 2-1NP POSITIVE OR GATE
01295
SN74ALS32N3
A22U1335
156-1919-00 MICRXKT,D5TL:DUAL PCS EDGE TRIG FLIP-aOP 04713
MC74F103 ND/JO
A22U1336
156-2095-00
MICRXKT, D3TL:QUAD 2-INP EXCLUSIVE OR GATES
01295 SN74ALS86N3/J4
A22U1341
156-2391-00 MICRXKT, DoTL: X T BUF/DRVR W/3 ST OUT 01295
SN74ALS541N3
A22U1342
156-2012-00
MICRXKT, DGTL:NKDS. 20*8 X 8 SRAM,SCREENED
80009
156-2012-00
A22U1343
160-2998-00
6010100
B021935
MICRXKT,DGTL: 163S4 X 8 EPROM.PRGM 80009
160-2998-00
A22U1343
160-2998-07
B021936
B022326
MICRXKT.D5TL: 16384 X 8 EPROM,PRGM
80009 160-2998-07
A22U1343
160-2998-08
B022327
MICRXKT.DGTL:16384 X 8 EPROM,PRGM
80009
160-2998-08
A22U1344
156-2094-00
MICRXKT,OGTL:HEX INVERTERS 01295 SN74ALS04BN3/J4
A22U1345
156-2488-00
MICRXKT, D6TL: ASTTL, DECODE/DEMUX. XTAL
07263
74F548 PCQR
A22U1351
156-1444-01
MICRXKT,DGTL:NMOS.GFiB INTFC CONTROLLER
01295
TMS9914A (NL
A22VS1C11
152-0195-00
SEMICO® DVC.Dl:ZEN,SI ,5. IV ,5/1,0.4W,DO-7 04713
SZ11755RL
A22VR1012
152-0195-00
SEMICOND DVC.DI :ZEN, S I, 5. IV, 5’/,0.4W , DO-7
04713
SZ11755RL
A22VR1321
152-0757-00
•
SEMICOND DVC, D I:ZEN, S I,6 .2V,5%,1W,DO-41 04713
1N4735A
A22W1001
131-0566-00
BUS.CONDXTOR:DUMMY RES,0.094 X 0.225 24546
OMA 07
A22V1002
131-0566-00
BUS,CONDXTOR:D'JMKY RES,0.094 X 0.225
24546 OKA 07
A22W1003
131-0566-00
B021760 BUS,CONDUCTOR: DJ-WY RES,0.094 X 0.225 24 546 OMA 07
A22W1316
131-0566-00 BUS,CONDXTOR:DUW RES,0.094 X 0.225
24546 OMA 07
A22W1324
131-0566-00
BLS.CONDXTOR:DUMMY RES.0.094 X 0.225 24 546 OMA 07
A22W1341
131-0555-00
BUS,CONDXTOR:DLMMY RES.0.094 X 0.225 24546 OMA 07
A22W8101
175-9847-00
CA ASSY, SP.ELEC:50,28 AW6.2.5 L,RIBBON
80009
175-5847-00
A23
670-8952-00 B010100
B021935
CIRCUIT BO ASSY:OPT MEMORY
80009 670-8952-00
A23
670-8952-01
B021936
CIRCUIT BD ASSY:A23 OPTION MEMORY
80009 670-8352-01
(OPTION 12.10 ONLY)
A23C1106
290-0983-00
CAP.FXD, ELCTLT: 4 .7UF. £%. I0 V X
56289
150D475X5010A2
A23C1112
281-0775-00
CAP.FXD.CER D I:0.1U F,20%,50V
04222
MA205E104MAA
A2X1118
285-0674-00
CAP.FXD.PLASTIC:0.OrjF,iC%,lOOV 84411
TEK270-10391
A23C1120
290-0920-00
CAP.FXD,ELCTLT:33UF.+50-10%,35V
55680
ULB1V330TAAANA
A23C1128 285-0808-00
CAP.FXD.PLASTIC:0.1UF.10%,50V 04099
EK13-16
A23C1132 283-0108-02
CAP.FXD.CER DI:220PF.10%.200V 56289 ORDER 5Y DESCR
A23C1134
281-0775-00
CAP.FXO.CER DI:0.1UF,20%,50V 04222
MA205E104MAA
A23C1138 285-0674-00
CAP.FXD.PLAST1C:0.01UF,10%.100V 84411
TEK270-I0391
A23CU42
283-0059-00
CAP.FXO.CER D I: 1UF,+80-20%.50V
31433
C33X105M5R5CA
A23C1143 281-0775-00
CAP.FXO.CER DI:0.1UF,20%,5QV
04222
MA205E104MAA
A23C1148
. 285-0808-00
CAP. FXD.PLASTIC: 0 .1UF.10%.50V
04099
EK13-16
A23C11S4
283-0341-00
CAP.FXD.CER D1:0.047UF.10%,100V 04222 SR301C473KAA
A23C1156 281-0775-00
CAP.FXD.CER DI:0.1UF,20%,50V 04222
MA205E104KA.4
A23CR1102
152-0664-00
SEMICO® DVC.DI:SCHOTTKY,SW,SI.70V,DO-35 80009 152-0664-00
A23CR1104
152-0664-00
SEMICO® DVC.DI:SCH0TTKY,Stf,SI.7OV.DO-35 80009
152-0564-00
A23JUS2
131-0589-00
TERMINAL.PIN:0.45 L X 0.025 SQ PH BRZ
22526
48283-029
(QUANTITY OF 3)
A23L1104
108-0109-00
C0IL,RF:FIXED.63'JH
TK2042
ORDER BY DESCR
A23P1122
131-2515-00
CONN.RCPT.ELEC:CKT BD.2 X 1 0,FEMALE
00779 86418-1
A23P1151
131-2515-00
CONN.RCPT,ELEC:CKT S0.2 X 10.FEMALE
00779
86418-1
A23R1112
321-0277-03
RES,FXD,FILM:7.50K 0rM.0.25%,0.125W.T=T2
01121
ORDER BY DESCR
A23R1114
3Zl-06bZ-OQ
RES.FXD,F1LM:145K OFM.0.25%,0.125tf.TC=T9
07716 CEAE14502C
A23R1116 321-1693-07
RES.FX0,F1LM:46.67K 0HM.0.1X.0.125W.T-9 07716 CEAE46671B
A23R1132 315-0101-00
RES.FXO.FILM-.lOO (SM,S%.0.2SW 57668 NTR25J-E 100E
A23R1134
321-0983-00
RES,FXD.FILM:4 .5 MEG 0r«.l%.0.125W,TC=T0
91637
CMF55116-G45003F
A23R1K4
315-0102-00
RES.FXD,FILM:IK 0HM,5%.0.25W
57668 NTR25JE01K0
A23R1150
315-0103-00
RES.FXO.FILM: 10K 0FM.5%.0.25W
19701 5043CX10K00J
A23R1152
315-0103-00
RES.FXD.FILM:10K 0*I,5%.0.25W
19701 5043CX10K00J
