Tektronix 2230

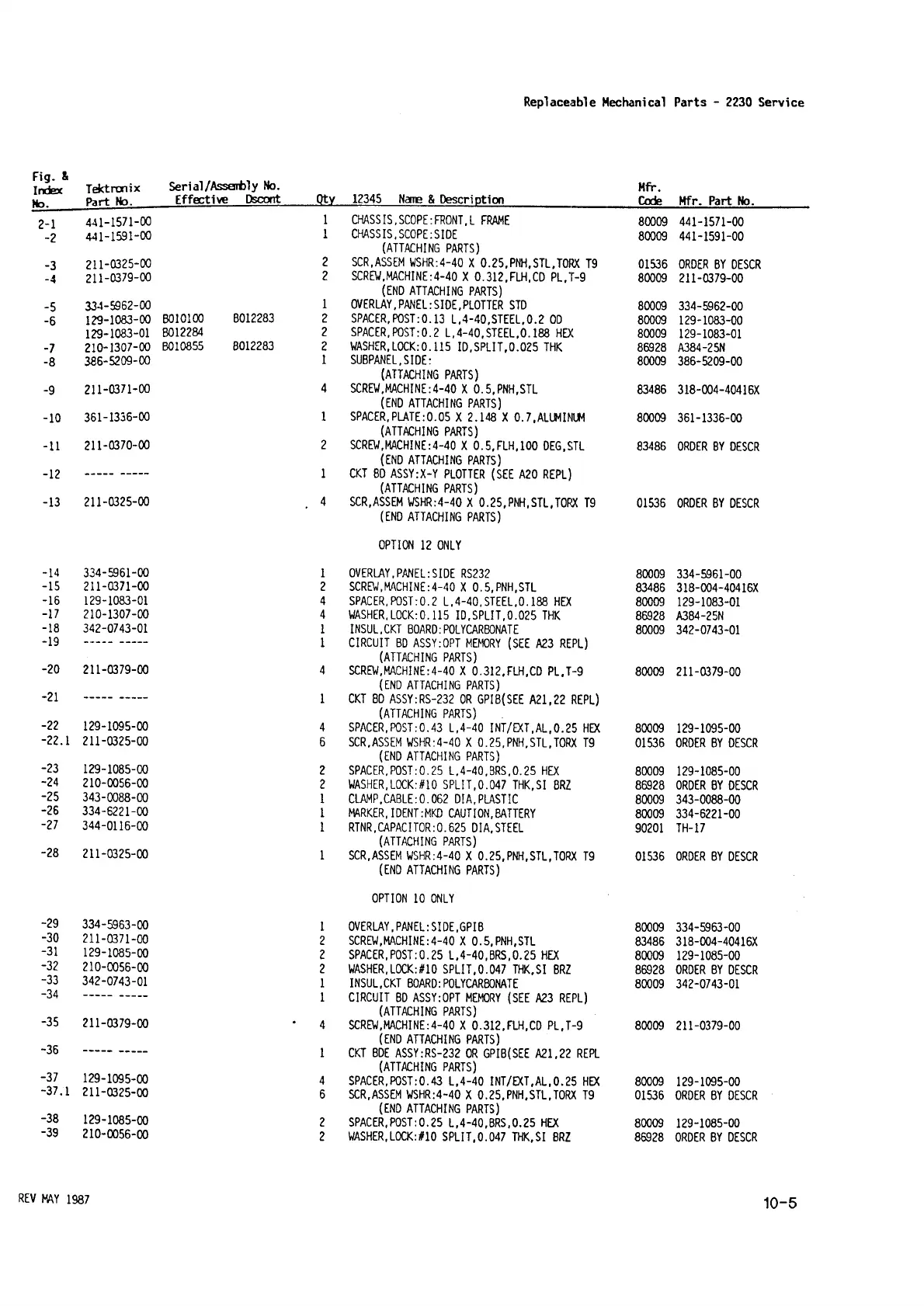

Replaceable Mechanical Parts - 2230 Service
F ig . &
In dex
Ho.
T e k tro n ix
P a rt No.
S e ria l/A s s a rt)! y No.
E ffe c tiv e Dscont
Qty
12345 Name & D e sc rip tio n
M fr.
Code M fr . P a rt No.
2-1
441-1571-00
1
CHASSIS,SC0PE:FR0NT,L FRAME
80009 441-1571-00
-2
441-1591-00
1
CHASSIS,SC0PE:SIDE
80009
441-1591-00
(ATTACHING PARTS)
-3
211-0325-00
2
SCR,ASSEM WSHR:4-40 X 0.25,PNH.STL,T0RX T9
01536
ORDER BY DESCR
-4
211-0379-00
2
SCREW,MACHINE:4-40 X 0.312.FLH.CD PL.T-9
80009
211-0379-00
(END ATTACHING PARTS)
-5
334-5962-00
1
OVERLAY,PANEL:SIDE,PLOTTER STD
80009
334-5962-00
-6
129-1083-00
B010100 B012283 2
SPACER,POST:0.13 L ,4 -4 0 ,STEEL,0 .2 00
80009
129-1083-00
129-1083-01
B012284
2
SPACER,POST:0 .2 L ,4 -4 0 ,STEEL,0.188 HD!
80009
129-1083-01
-7
210-1307-00
B010855
B012283
2
WASHER,L0CK:0.115 ID ,SP LIT ,0 .025 THK
86928
A384-25N
-8
386-5209-00
1
SUBPANEL,SIDE:
80009
386-5209-00
(ATTACHING PARTS)
-9
211-0371-00
4
SCREW,MACHINE:4-40 X 0.5,PNH,STL
83486
318-004-40416X
(END ATTACHING PARTS)
-10
361-1336-00
1
SPACER,PLATE:0.05 X 2.148 X 0 .7 ,ALUMINUM
80009
361-1336-00
(ATTACHING PARTS)
-11
211-0370-00 2
SCREW,MACHINE:4-40 X 0.5,FLH ,100 DEG,STL 83486
ORDER BY DESCR
(END ATTACHING PARTS)
-12
1
CKT 80 ASSY:X-Y PLOTTER (SEE A20 REPL)
(ATTACHING PARTS)
-13
211-0325-00 4
SCR, ASS EM WSHR:4-40 X 0 .25 , PNH, STL, TOFIX T9
01536
ORDER BY DESCR
(END ATTACHING PARTS)
OPTION 12 ONLY
-14
334-5961-00
1
OVERLAY,PANEL:SIDE RS232
80009
334-5961-00
-15 211-0371-00
2
SCREW,MACHIN£:4-40 X 0 .5 ,PNH,STL
83486 318-004-40416X
-16 129-1083-01
4
SPACER,POST:0 .2 L ,4 -4 0 ,STEEL,0.188 HEX!
80009
129-1083-01
-17
210-1307-00 4
WASHER,LOCK:0.115 ID ,SP LIT ,0 .025 THK 86928 A384-25N
-18
342-0743-01
1
INSUL.CKT BOARD:POLYCARBONATE
80009
342-0743-01
-19
1
CIRCUIT BD ASSY:OPT MEMORY (SEE A23 REPL)
(ATTACHING PARTS)
-20
211-0379-00 4
SCREW,MACHINE:4-40 X 0.312.FLH.CD PL.T-9
80009
211-0379-00
(END ATTACHING PARTS)
-21
1
CKT 80 ASSY:RS-232 OR GPIB(SEE A21.22 REPL)
(ATTACHING PARTS)
-22
129-1095-00
4
SPACER,POST:0.43 L.4 -4 0 INT/EXT,AL,0 .2 5 HEX 80009
129-1095-00
-2 2 .1
211-0325-00
6
SCR.ASSEM WSHR:4-40 X 0 .2 5 ,PNH,STL,TORX T9
01536 ORDER BY DESCR
(END ATTACHING PARTS)
-23
129-1085-00
2
SPACER,POST:0 .25 L .4 -4 0 ,3RS,0.25 HEX
80009 129-1085-00
-24
210-0056-00
2
WASHER,L0CK:#10 SP LIT ,0.047 THK,SI BRZ
86928
ORDER BY DESCR
-25
343-0088-00
1
CLAMP.CABLE:0.062 DIA,PLASTIC
80009
343-0088-00
-26
334-6221-00
1
MARKER,I DENT:MKD CAUTION,BATTERY
80009 334-6221-00
-27
344-0116-00
1
RTNR,CAPACITOR:0.625 DIA,STEEL
90201
TH-17
(ATTACHING PARTS)
-28
211-0325-00
1
SCR.ASSEM WSHR:4-40 X 0 .2 5 ,PNH,STL,TORX T9
01536 ORDER BY DESCR
(END ATTACHING PARTS)
OPTION 10 ONLY
-29
334-5963-00
1 OVERLAY. PANEL: SIDE,GPIB
80009 334-5963-00
-30
211-0371-00
2
SCREW,MACHINE:4-40 X 0 .5 ,PNH,STL
83486 318-004-40416X
-31
129-1085-00
2
SPACER,POST:0 .25 L ,4 -4 0 ,BRS,0.25 HEX
80009 129-1085-00
-32
210-0056-00
2
WASHER,LOCK:#10 S PLIT,0.047 THK.SI BRZ
86928 ORDER BY DESCR
-33
342-0743-01
1
INSUL.CKT BOARD:POLYCARBONATE
80009 342-0743-01
-34
1
CIRCUIT BD ASSY:OPT MEMORY (SEE A23 REPL)
(ATTACHING PARTS)
-35
211-0379-00
•
4
SCREW,MACHINE:4-40 X 0.312.FLH.CD PL.T-9
80009 211-0379-00
(END ATTACHING PARTS)
-36
1
CKT BDE ASSY:RS-232 OR GPIB(SEE A21.22 REPL
(ATTACHING PARTS)
-37
129-1095-00
4
SPACER,POST:0.43 L .4 -4 0 IN T/EXT,AL,0.25 HEX 80009 129-1095-00
-3 7 .1
211-0325-00
6
SCR.ASSEM WSHR:4-40 X 0.25.PNH,STL,TORX T9
01536 ORDER BY DESCR
(END ATTACHING PARTS)
-38
129-1085-00
2
SPACER,POST:0 .25 L.4-40,BR S ,0.25 HEX
80009 129-1085-00
-39
210-0056-00
2
WASHER,LOCK:#10 S PLIT,0.047 THK.SI BRZ
86928 ORDER BY DESCR
REV MAY 1987
10-5
