Tektronix 2230

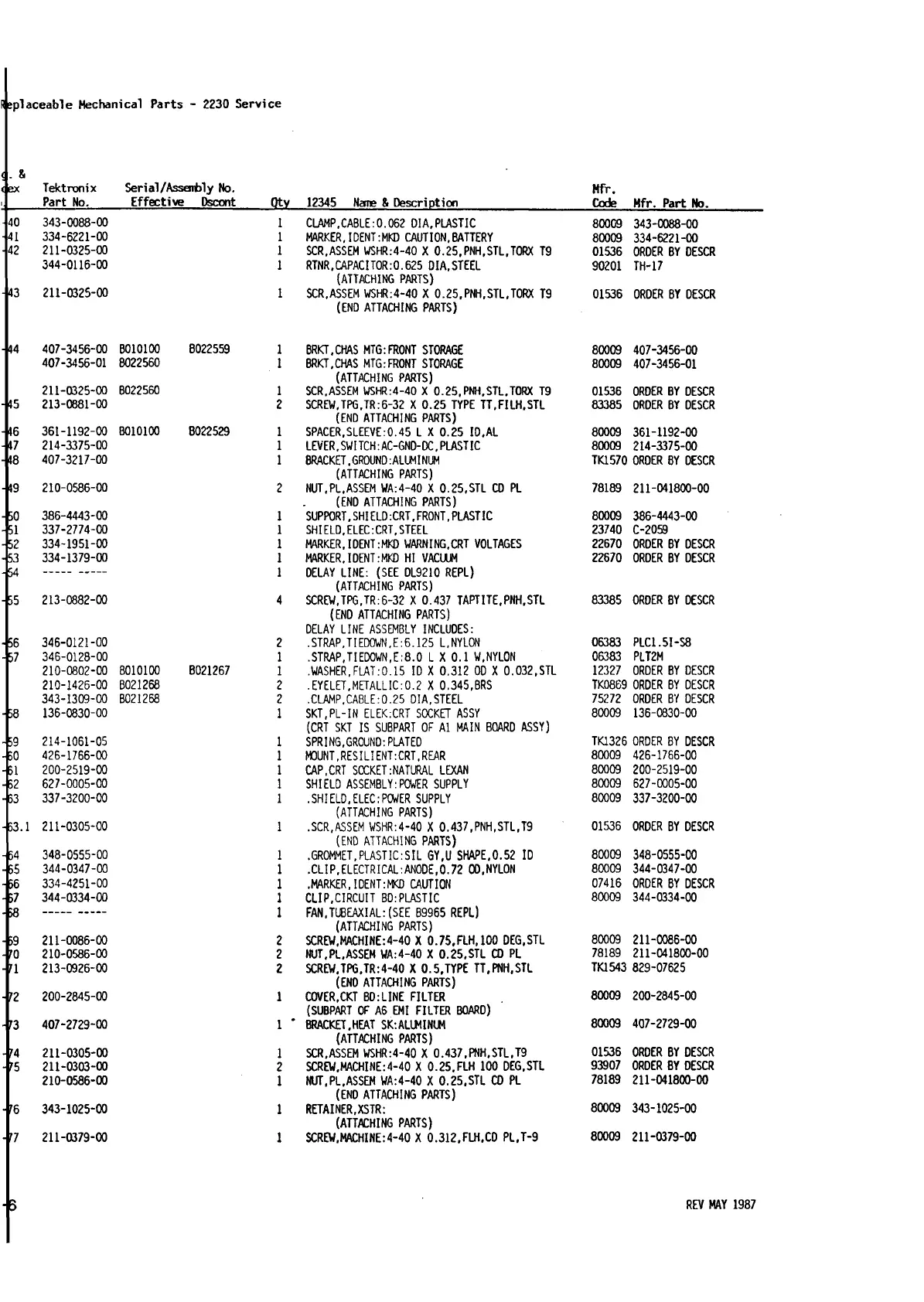

Bsplaceable Mechanical Parts - 2230 Service
<. &
<ex Tektronix Serial/Assembly No. Mfr.
Part No.
Effective Dscont
Qtv 12345 Name & Description Code
Mfr. Part No.
■40 343-0088-00
1
CLAMP,CABLE:0.062 0IA,PLASTIC
80009
343-0088-00
■41
334-6221-00
1
MARKER.IDENT:MKD CAUTION,BATTERY
80009 334-6221-00
•42 211-0325-00
1 SCR, ASS EM WSHR.-4-40 X 0.25,PNH,STL,T0RX T9
01536
ORDER BY DESCR
344-0116-00
1 RTNR,CAPACITOR:0.625 DIA,STEEL
90201
TH-17
(ATTACHING PARTS)
-43
211-0325-00
1
SCR,ASSEM WSHR:4-40 X 0.25,PNH,STL,T0RX T9
01536
ORDER BY DESCR
(END ATTACHING PARTS)
-44 407-3456-00 B010100 B022559
1
BRKT.CHAS MTG:FRONT STORAGE 80009
407-3456-00
407-3456-01
8022560
1 BRKT.CHAS MTG:FRONT STORAGE 80009
407-3456-01
(ATTACHING PARTS)
211-0325-00
B022560
1 SCR.ASSEM WSHR:4-40 X 0.25,PNH,STL,T0RX T9
01536
ORDER BY DESCR
-45 213-0881-00
2 SCREW,TPG.TR:6-32 X 0.25 TYPE TT.FILH.STL 83385
ORDER BY DESCR
(END ATTACHING PARTS)
-46
361-1192-00
B010100
8022529
1
SPACER.SLEEVE:0.45 L X 0.25 ID,AL 80009
361-1192-00
-47
214-3375-00
1
LEVER,SWITCH:AC-GND-DC, PLASTIC
80009
214-3375-00
-48
407-3217-00
1 BRACKET.GROUND:ALUMINUM
TK1570 OROER BY DESCR
(ATTACHING PARTS)
-49
210-0586-00
2 NUT.PL.ASSEM WA:4-40 X 0.25,STL CO PL
78189
211-041800-00
(END ATTACHING PARTS)
-50
386-4443-00
1
SUPPORT,SHI ELD:CRT,FRONT,PLASTIC 80009
386-4443-00
-51
337-2774-00
1
SHI ELD,ELEC:CRT,STEEL
23740
C-2059
-52
334-1951-00
1
MARKER.IDENT:MKD WARNING,CRT VOLTAGES 22670 ORDER BY DESCR
-53
334-1379-00
1
MARKER.IDENT:MKD HI VACUUM 22670 ORDER BY DESCR
-54
1 DELAY LINE: (SEE DL9210 REPL)
(ATTACHING PARTS)
-55
213-0882-00
4 SCREW,TPG.TR:6-32 X 0.437 TAPTITE.PNH.STL 83385
ORDER BY DESCR
(END ATTACHING PARTS)
DELAY LINE ASSEMBLY INCLUDES:
-56
346-0121-00
2 .STRAP,TIEDOWN,E:6.125 L,NYLON
06383 PLC1.5I-S8
-57
346-0128-00
1
.STRAP,TIEDOWN,E:8.0 L X 0.1 W,NYLON
06383 PLT2M
210-0802-00
8010100
B021267
1 .WASHER,FLAT.-0.15 ID X 0.312 OD X 0.032,STL
12327
ORDER BY DESCR
210-1426-00 B021268 2 .EYELET,METALLIC:0.2 X 0.345.BRS
TK0869 ORDER BY DESCR
343-1309-00 B021268
2
.CLAMP,CABLE:0.25 DIA,STEEL
75272
ORDER BY DESCR
-58
136-0830-00
1
SKT.PL-IN ELEK:CRT SOCKET ASSY
80009 136-0830-00
(CRT SKT IS SUBPART OF A1 MAIN BOARD ASSY)
-59
214-1061-05
1 SPRING,GROUND:PLATED
TK1326 ORDER BY DESCR
- 30
426-1766-00
1
MOUNT, RES I LI ENT:CRT,REAR
80009
426-1766-00
- 31
200-2519-00
1 CAP,CRT SOCKET:NATURAL LEXAN
80009
200-2519-00
-52
627-0005-00
1 SHIELD ASSEMBLY:POWER SUPPLY
80009
627-0005-00
-53
337-3200-00
1
.SHIELD,ELEC:PCWER SUPPLY
80009
337-3200-00
(ATTACHING PARTS)
-53.1
211-0305-00
1
.SCR.ASSEM WSHR:4-40 X 0.437,PNH,STL,T9
01536
ORDER BY DESCR
(END ATTACHING PARTS)
-54
348-0555-00
1
.GROMMET,PLASTIC:SIL GY,U SHAPE,0.52 ID
80009
348-0555-00
-55
344-0347-00
1
.CLIP,ELECTRICAL:ANODE,0.72 00,NYLON
80009
344-0347-00
-56
334-4251-00
1
.MARKER,IDENT:MKD CAUTION
07416
ORDER BY DESCR
-57
344-0334-00
1
CLIP,CIRCUIT BD:PLASTIC
80009
344-0334-00
-58 1 FAN.TUBEAXIAL:(SEE B9965 REPL)
(ATTACHING PARTS)
-59
211-0086-00
2
SCREW,MACHINE:4-40 X 0.75.FLH.100 DEG,STL
80009
211-0086-00
-10
210-0586-00
2
NUT.PL.ASSEM WA:4-40 X 0.25,STL CD PL
78189
211-041800-00
-11
213-0926-00
2
SCREW,TPG,TR:4-40 X 0.5,TYPE TT.PNH.STL
TK1543
829-07625
(ENO ATTACHING PARTS)
-12
200-2845-00
1 COVER,CKT BD:LINE FILTER
80009
200-2845-00
(SUBPART OF A6 EMI FILTER BOARD)
-13
407-2729-00 1 * BRACKET,HEAT SK:ALUMINUM
80009
407-2729-00
(ATTACHING PARTS)
-14
211-0305-00
1
SCR.ASSEM WSHR:4-40 X 0.437,PNH.STL,T9
01536
ORDER BY DESCR
-15
211-0303-00
2
SCREW,MACHINE:4-40 X 0.25.FLH 100 DEG.STL
93907
ORDER BY DESCR
210-0586-00
1
NUT.PL.ASSEM WA:4-40 X 0.25,STL CD PL
78189
211-041800-00
(END ATTACHING PARTS)
-16
343-1025-00
1
RETAINER.XSTR:
80009
343-1025-00
(ATTACHING PARTS)
-17
211-0379-00
1
$CREW.MACHINE:4-40 X 0.312.FLH.C0 PL.T-9
80009
211-0379-00
■5 REV MAY 1987
